Antitheft Relay: Service and Repair




REMOVAL PROCEDURE

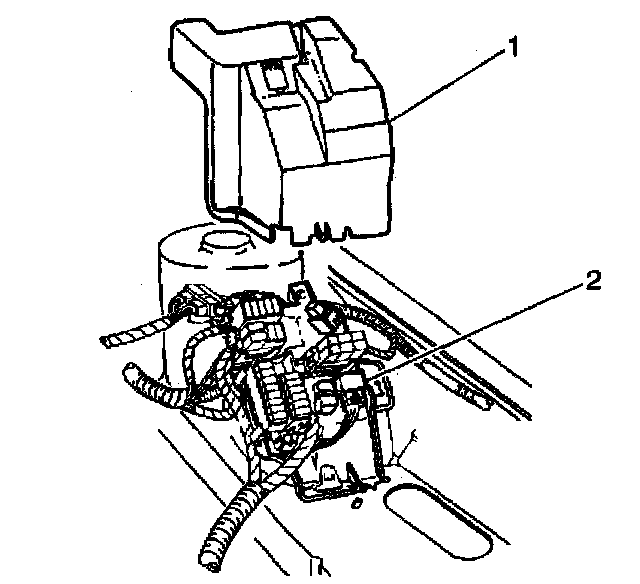

1. Remove the cover (1) from the engine compartment relay center.
2. Disconnect the electrical connector.
3. Remove the starter enable relay (2).

INSTALLATION PROCEDURE
1. Install the starter enable relay (2).
2. Connect the electrical connector.
3. Install the cover (1) to the engine compartment relay center.
