Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Antitheft Relay >> Diagrams

Antitheft Relay: Diagrams

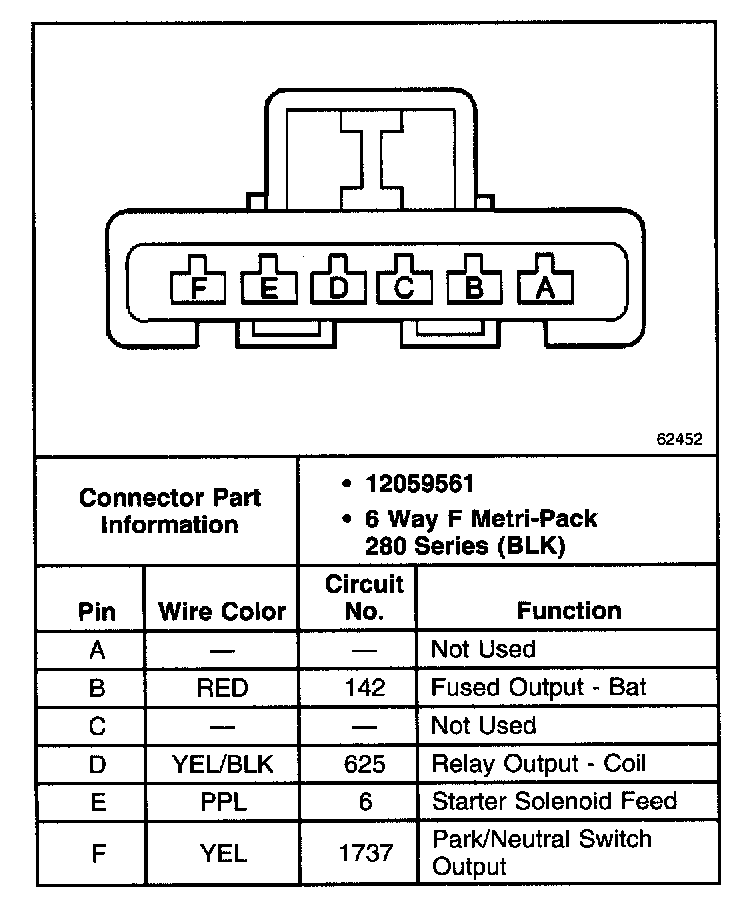

Theft Deterrent Relay:
