U1144

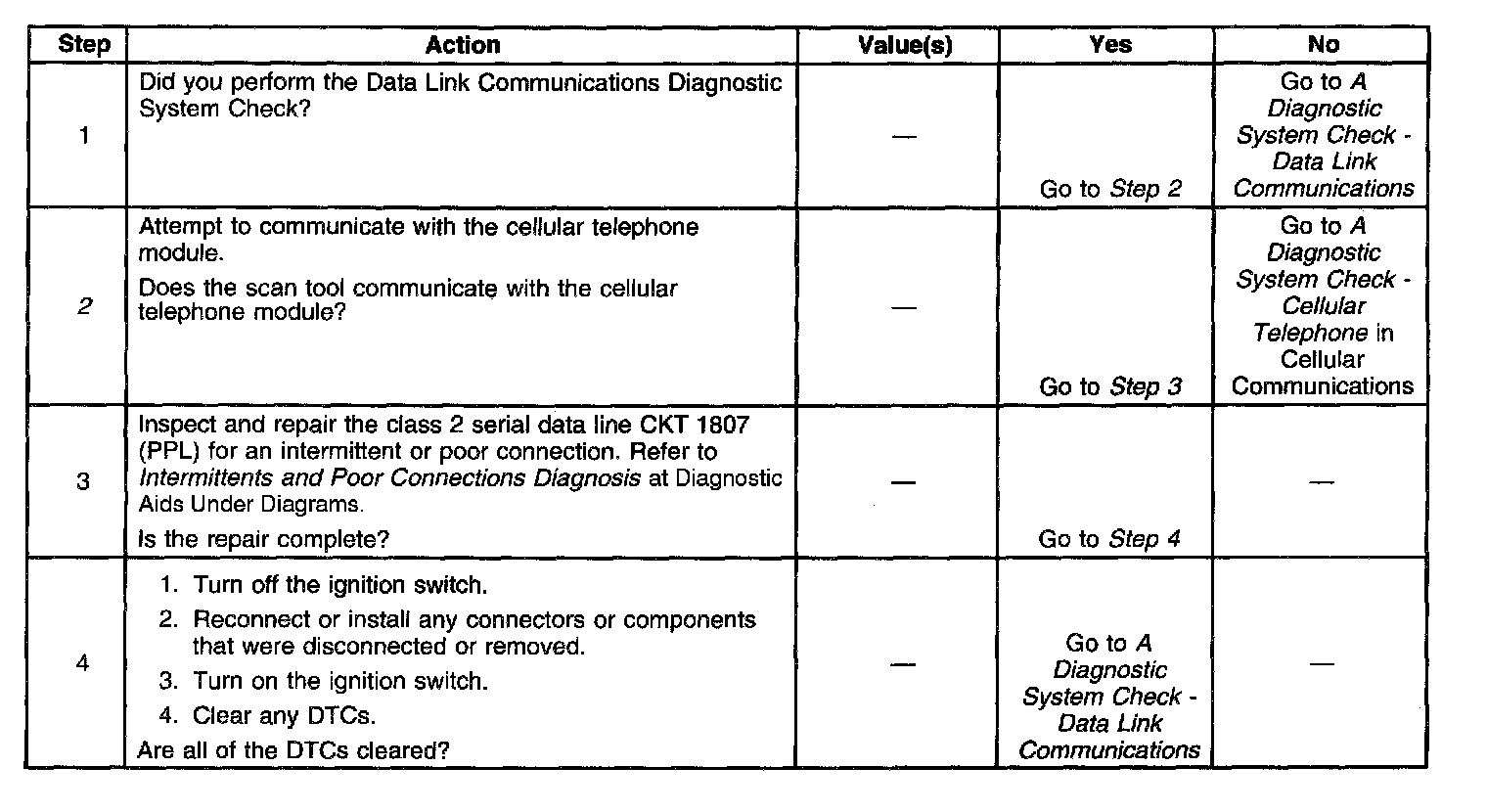

Diagnostics Trouble Code Chart:

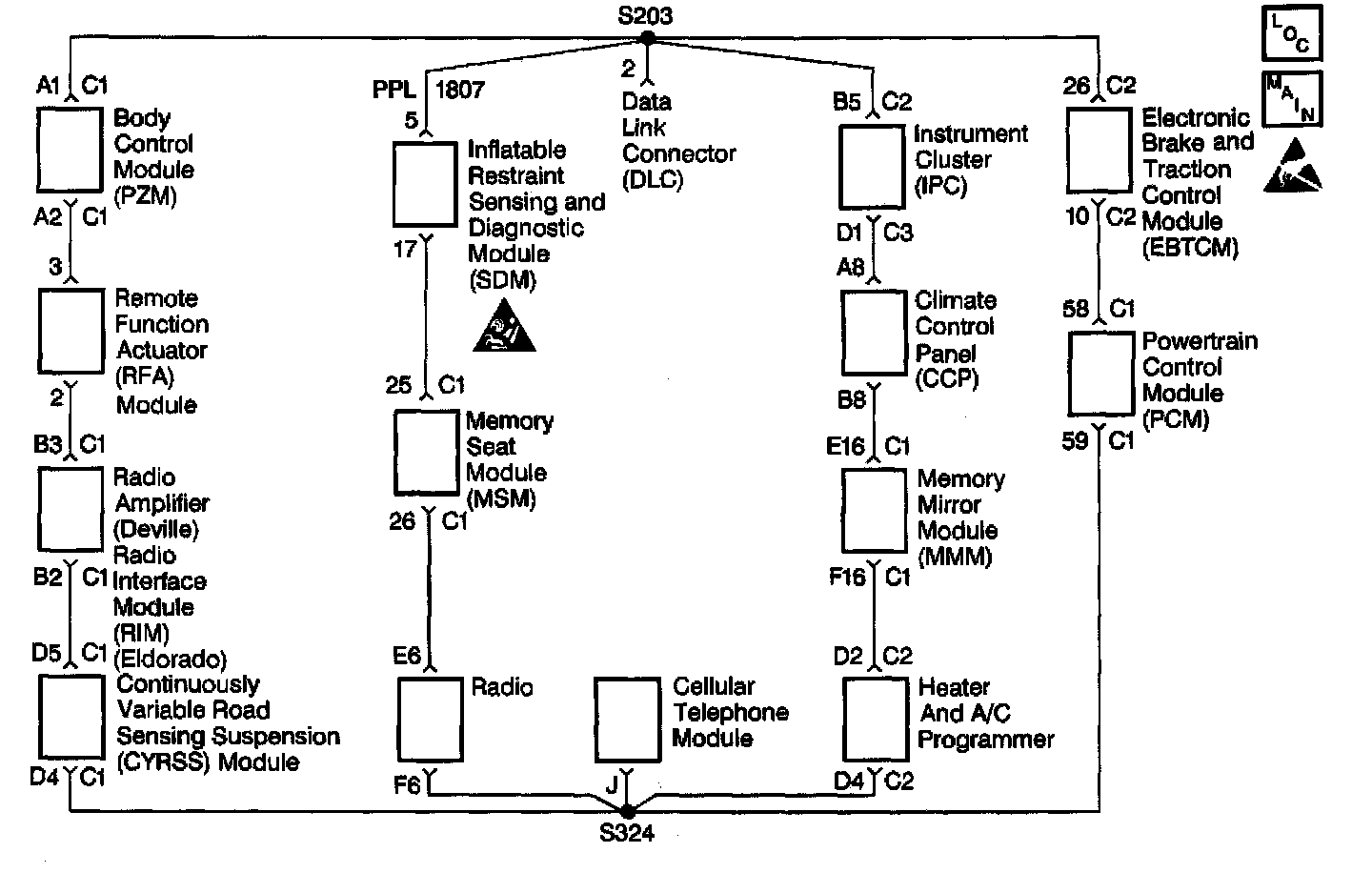

Wiring Schematic:

CIRCUIT DESCRIPTION
The class 2 serial data line communicates information between modules. Each module connected to the serial data line is assigned a recognition code, or address. This code is used in order to identity which modules are communicating. Modules communicate with each other by periodically sending state of health (SOH) messages. When the ignition switch is in RUN, each module communicating on the serial data line sends a SOH message every 2 seconds. This ensures that the system is operating properly. When the cellular telephone module stops communicating on the class 2 serial data line, the SOH that is normally sent on the serial data line every 2 seconds disappears. The module, that should receive that message, detects the absence of the message. The module in turn sets DTC U1144 associated with the loss of SOH of the cellular telephone module.

CONDITIONS FOR SETTING THE DTC
^ The module does not receive a SOH message back from the cellular telephone module.

The module retries the request 3 times, and then sets DTC U1144.
^ This DTC only sets if U1300 or U1301 are not current.

ACTION TAKEN WHEN THE DTC SETS
^ DTC U1144 is stored in the module.
^ The module uses the default values for the initialization data.
^ This DTC does not cause driver warning message to appear.

CONDITIONS FOR CLEARING THE DTC
^ This DTC clears (status changes from current to history) under any of the following conditions:
- The module detects a SOH message from the cellular telephone module.
- At each ignition cycle.
^ A history DTC clears after 50 consecutive ignition cycles if the conditions for setting the DTC are no longer present.
^ Current and history DTCs may be cleared using a scan tool.

DIAGNOSTIC AIDS
^ DTC U1144 does not normally represent a failure within the module.
^ When loss of class 2 serial data communication DTCs (DTCs with the letter U as the prefix) are stored as history DTCs, know all possible serial data DTCs set in each module before diagnosing the serial data line.
^ If U1144 is stored in the module memory, inspect for the same DTC stored in other modules capable of storing this DTC.
^ If the DTC is a history DTC, the problem may be intermittent.

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table:
2. U1144 is the result of loss of communication with the cellular telephone module. Note that other modules on the class 2 serial data line may also set U1144 it the cellular telephone module is not communicating with the serial data line.
