P1154

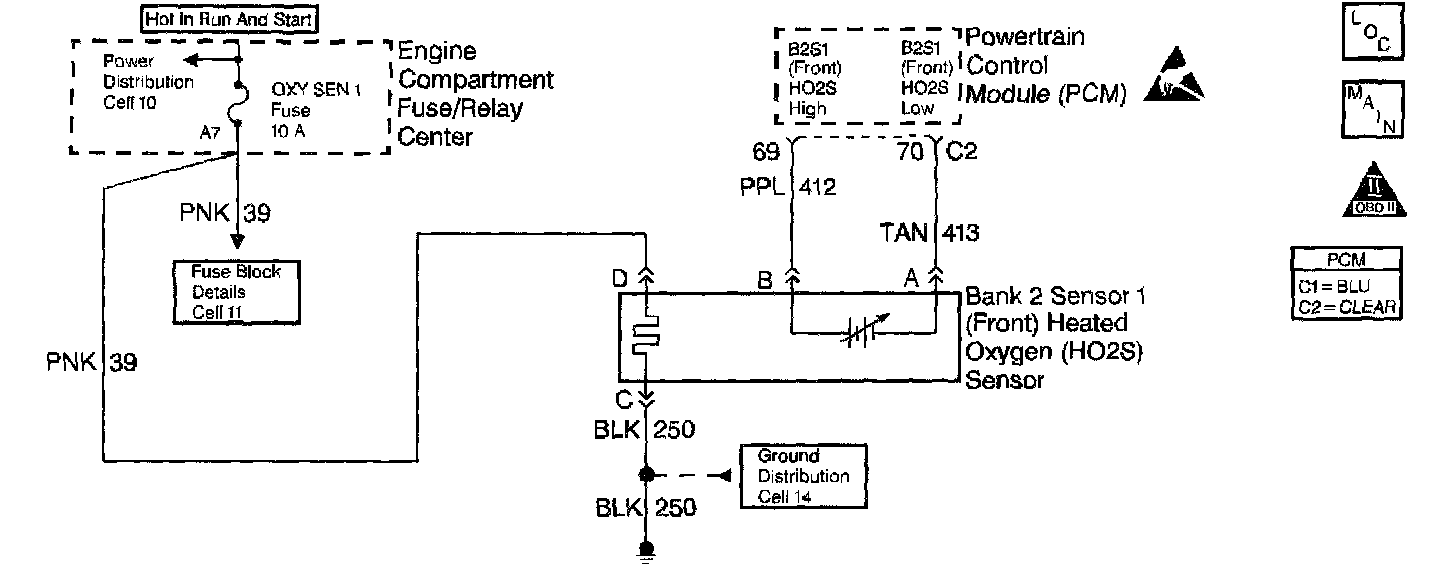

Circuit Description

This diagnostic test is used in conjunction with the front bank oxygen sensor slow response diagnostic test (P0153). The ratio of the response times that were calculated are compared to calibrated limits. If the number of both lean to rich transitions (switches) and rich to lean transitions were both zero, then ratios will be set to 0. Otherwise, the ratio is calculated based on which average response time was greater.

Conditions for Running the DTC

^ DTCs P0117, P0118, P0121, P0122, P0123, P0155 and P1153 are not set.
^ Engine Metal Overtemperature Protection (DTC P1258) not active.
^ Average response time calculations completed for this ignition cycle.
^ This test not yet completed this ignition cycle.

Conditions for Setting the DTC

^ Ratio of left (front) O2 LR/RL times greater than 64 counts.
^ Ratio of left (front) O2 LR/RL times greater than 48 counts.

Action Taken When the DTC Sets

^ The PCM will illuminate the Malfunction Indicator Lamp (MIL) when the diagnostic runs and fails.
^ The PCM will record operating conditions at the time the diagnostic fails. This information will be stored in the Freeze Frame and Failure Records.

Conditions for Clearing the MIL/DTC

^ The PCM will turn the MIL OFF after three consecutive drive trips that the diagnostic runs and does not fail.
^ A Last Test Failed (current) DTC will clear when the diagnostic runs and does not fail.
^ A History DTC will clear after forty consecutive warm-up cycles with no failures of any emission related diagnostic test.
^ Use a scan tool to clear DTCs.
^ Interrupting PCM battery voltage may or may not clear DTCs. This practice is not recommended.

Diagnostic Aids

Notice: Do not solder heated oxygen sensor wires. Soldering the wires will result in the loss of the air reference to the sensor. If fault is not present perform Powertrain Ground Check and also review Failure Rec. to determine conditions under which and how long ago the DTC set. Component Tests and General Diagnostics

Test Description

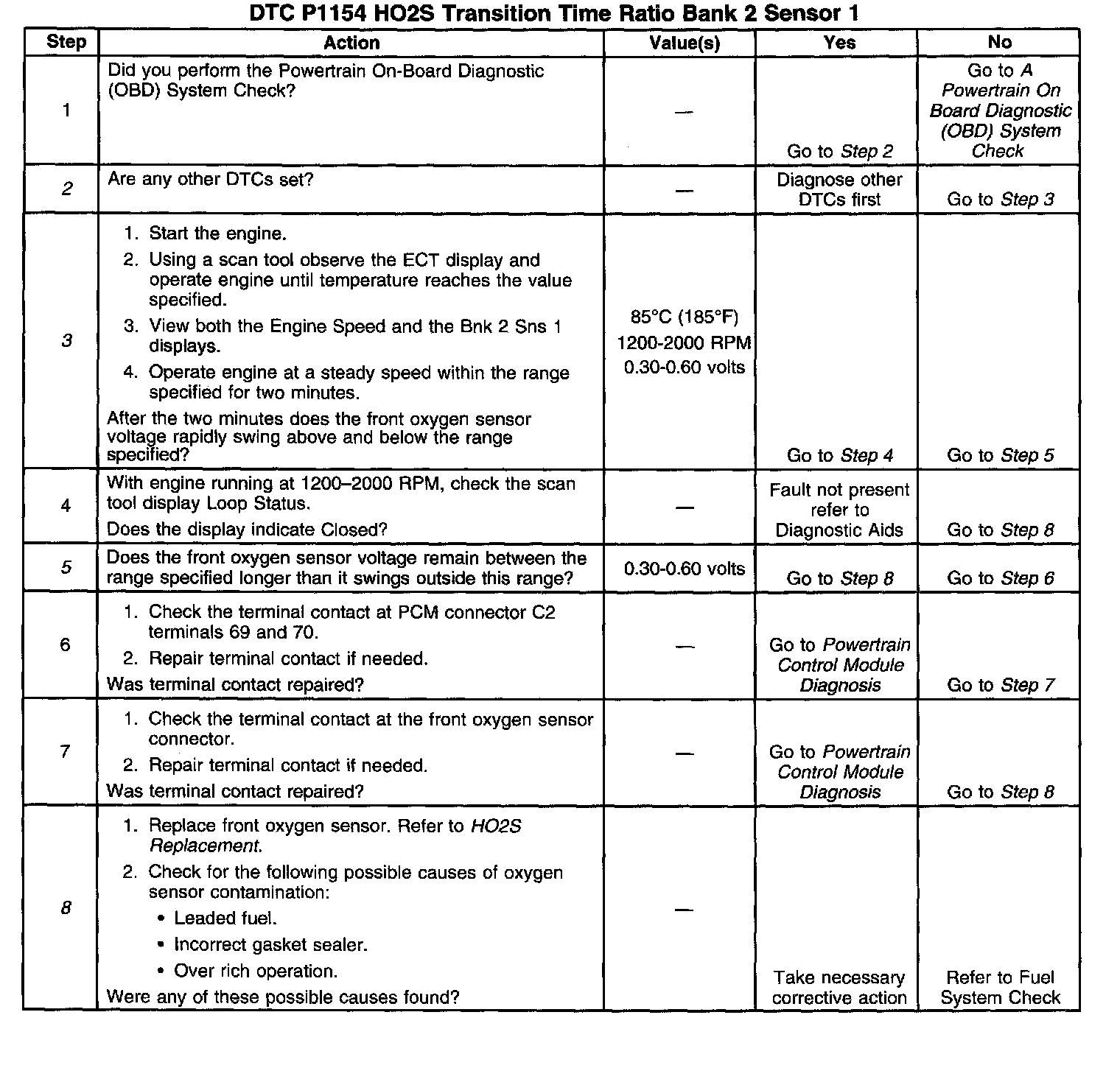

Number(s) below refer to the step number(s) on the Diagnostic Table.

2. Checking if other possible causes of this DTC have already been diagnosed.
3. With the engine running warm, coolant at least 85°C (185°F) and at fast idle, the oxygen sensor voltage should rapidly swing above 0.60 volt and below 0.30 volt.
5. Checking if the oxygen sensor voltage is swinging between rich and lean very slowly, or not at all.
8. Checking for causes or oxygen sensor failure. If sensor is replaced without finding cause of contamination, contamination of new sensor may result.
