P0117

Circuit Description

The Engine Coolant Temperature sensor is a thermistor, a sensor whose resistance varies with temperature. The ECT sensor signal is on CKT 410 and sensor ground on CKT 808. As the temperature of the sensor increases, resistance decreases. A high coolant temperature will result in low signal voltage on CKT 410. DTC P0117 sets because the coolant temperature cannot be greater than 147°C (297°F) when the IAT is less than 100°C (212°F) or the vehicle has been driving long enough to cool the engine to less than 147°C (297°F).

Conditions for Running the DTC

^ DTCs P0112 and P0113 not set.
^ IAT temperature of 100°C (212°F) or less.
OR
^ DTCs P0122 and P0123 not set.
^ Engine running with throttle angle between 5 and 35 degrees for at least 3.5 minutes.

Conditions for Setting the DTC

The ECT sensor reading is 147°C (297°F) or more.

Action Taken When the DTC Sets

^ PCM uses the transaxle temperature sensor values in place of the engine coolant temperature sensor for the first 4.25 minutes of engine operation, and a value of 90°C (194°F) afterwards.
^ Transaxle shift adapts are maintained at current levels.
^ The PCM will illuminate the Malfunction Indicator Lamp (MIL) when the diagnostic runs and fails.
^ The PCM will record operating conditions at the time the diagnostic fails. This information will be stored in the Freeze Frame and Failure Records.

Conditions for Clearing the MIL/DTC

^ The PCM will turn the MIL OFF after three consecutive drive trips that the diagnostic runs and does not fail.
^ A Last Test Failed (current) DTC will clear when the diagnostic runs and does not fail.
^ A History DTC will clear after forty consecutive warm-up cycles with no failures of any emission related diagnostic test.
^ Use a scan tool to clear DTCs.
^ Interrupting PCM battery voltage may or may not clear DTCs. This practice is not recommended.

Test Description

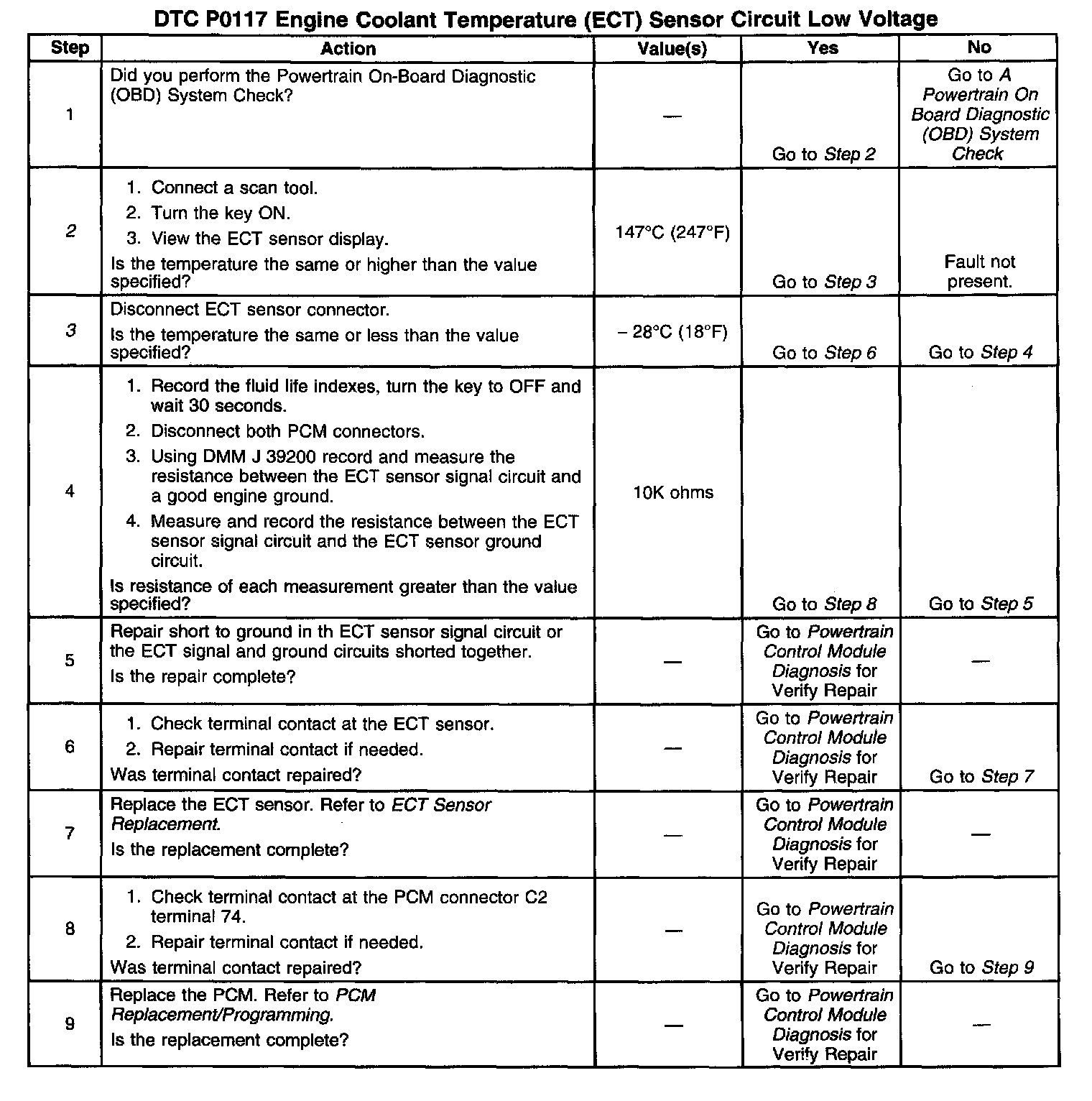

Number(s) below refer to the step number(s) on the Diagnostic Table.

2. With the ECT sensor or wiring shorted, ECT display will read 147°C (247°F) or greater.
3. If ECT display reads -29°C (-20°F) or less with ECT sensor disconnected, wiring is okay but ECT sensor must be shorted.
