PCM Diagnostic Trouble Code Description

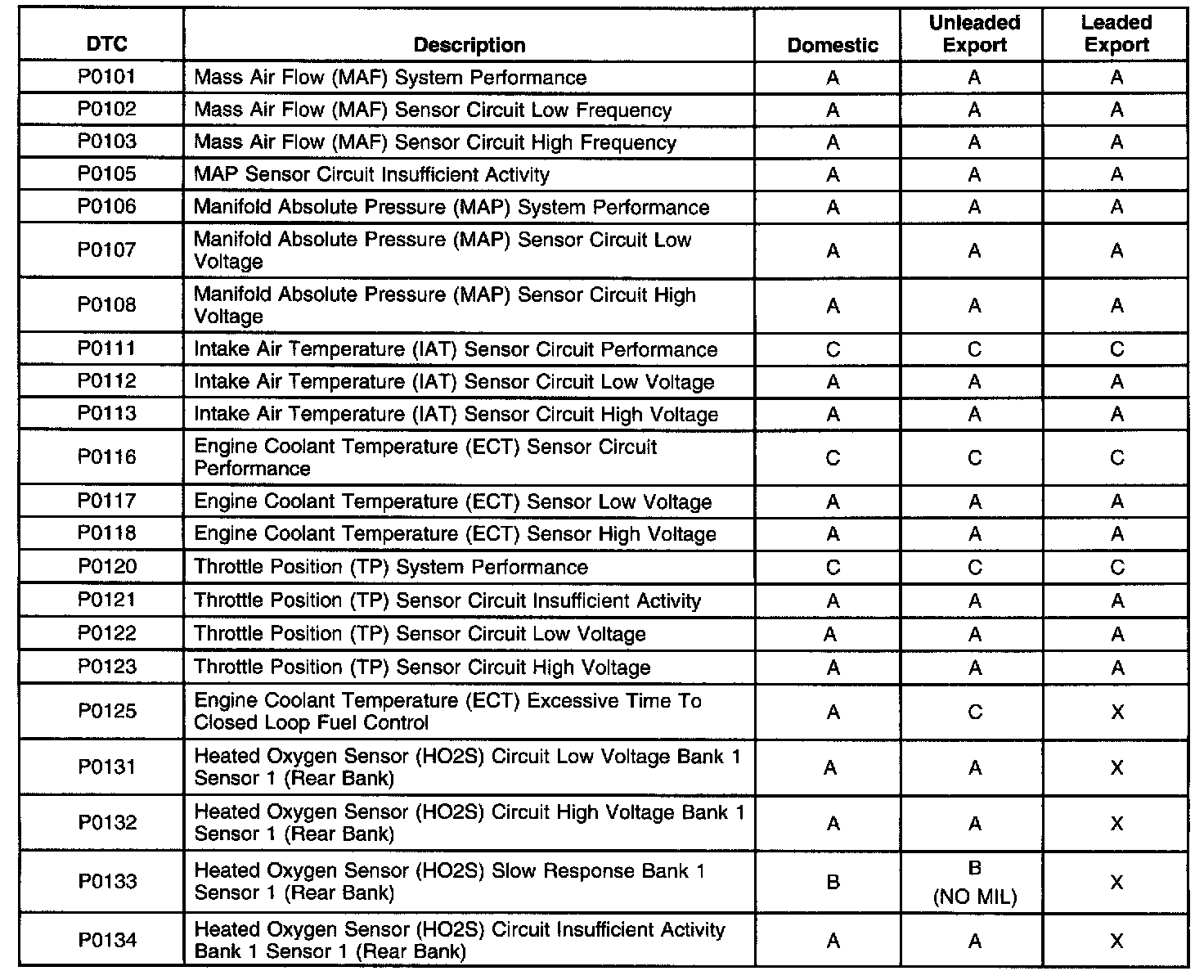

DTC List (Part 1 Of 5):

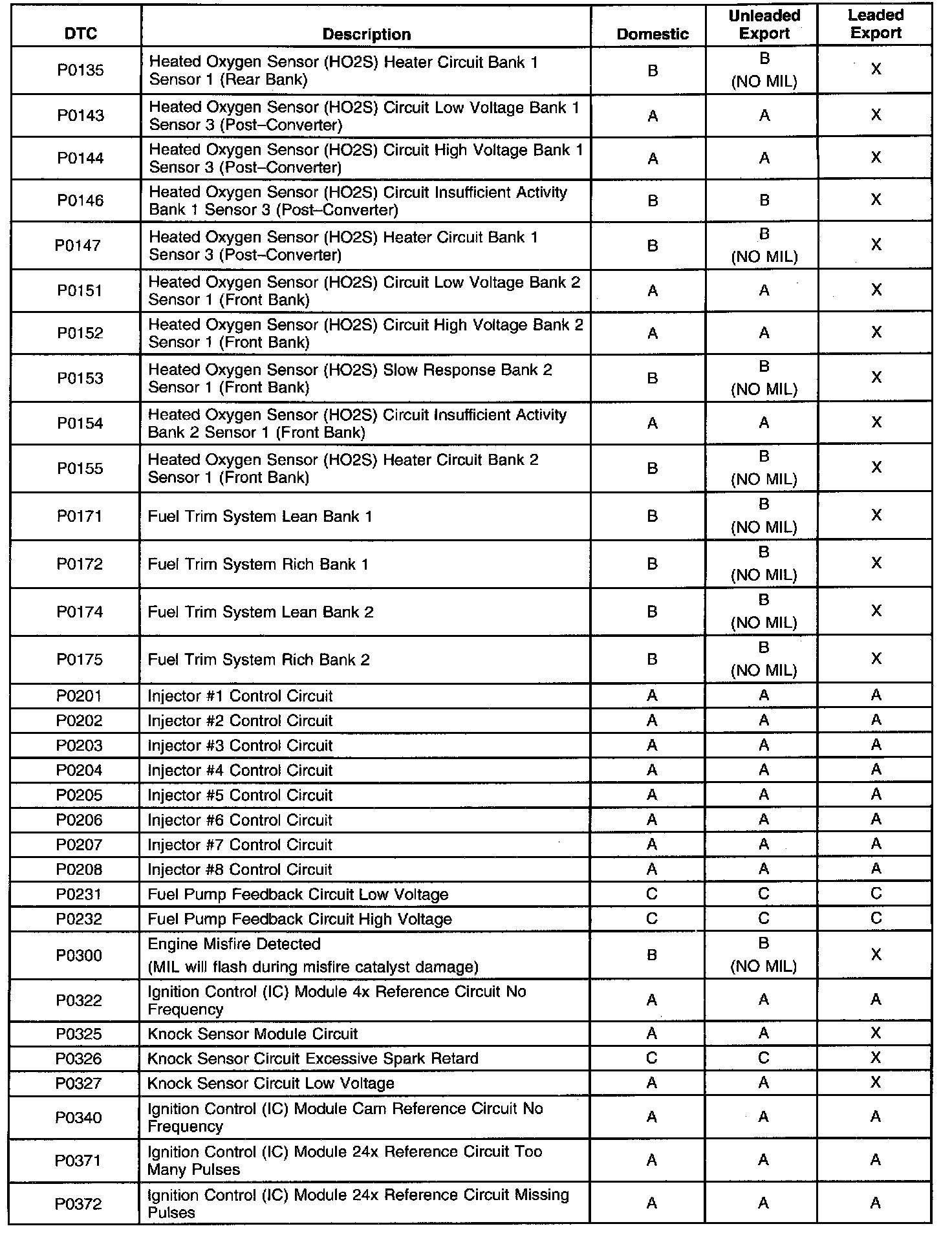

DTC List (Part 2 Of 5):

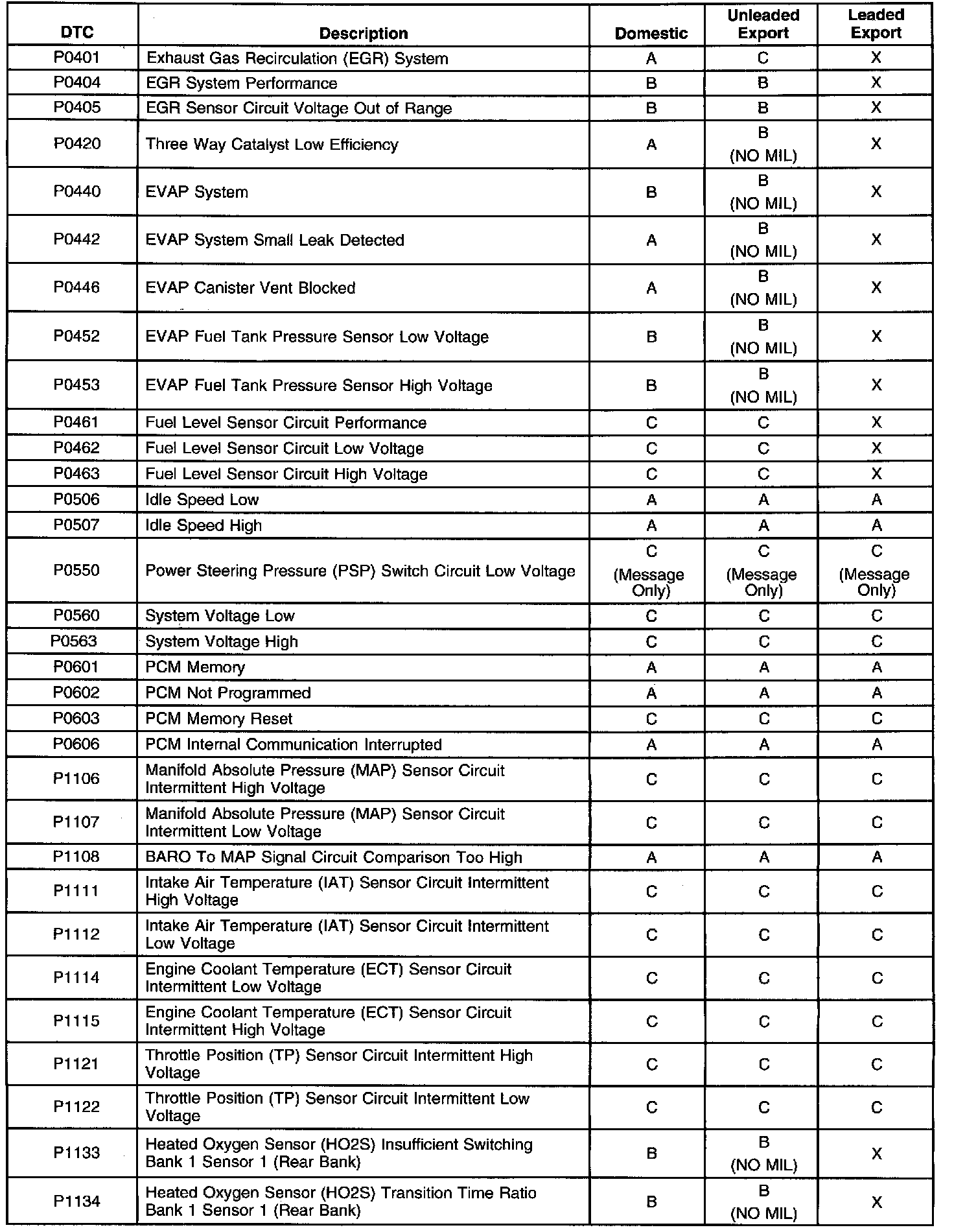

DTC List (Part 3 Of 5):

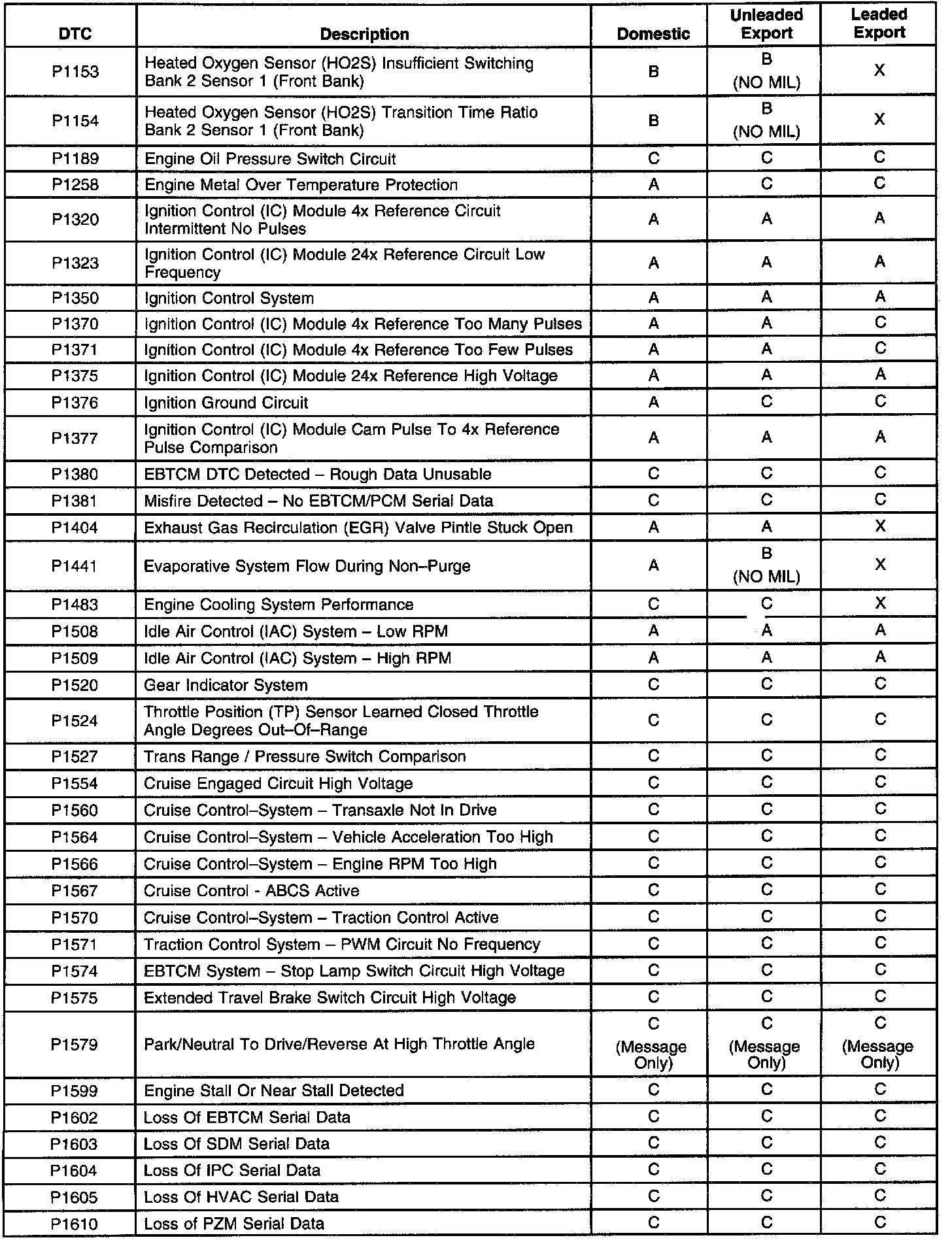

DTC List (Part 4 Of 5):

DTC List (Part 5 Of 5):

DTC's are categorized by type. The type will indicate the action the DTC will take in storing a failure and illuminating the Malfunction Indicator Lamp (MIL).

When a Type A DTC diagnostic fails, the DTC is set immediately and the MIL is illuminated. When a Type B DTC diagnostic fails, the MIL will illuminate if the fault is present after two consecutive drive trips. When a Type C DTC diagnostic tails, the DTC will set immediately but will not illuminate the MIL. For some Type C DTCs only a message will appear on the Driver Information Center (DIC). Type C DTCs that DO NOT display a message were formerly referred to as Type D. For more information regarding DTC types refer to Powertrain Control Module / Description and Operation.
