C1295

Part 1 Of 2:

Part 2 Of 2:

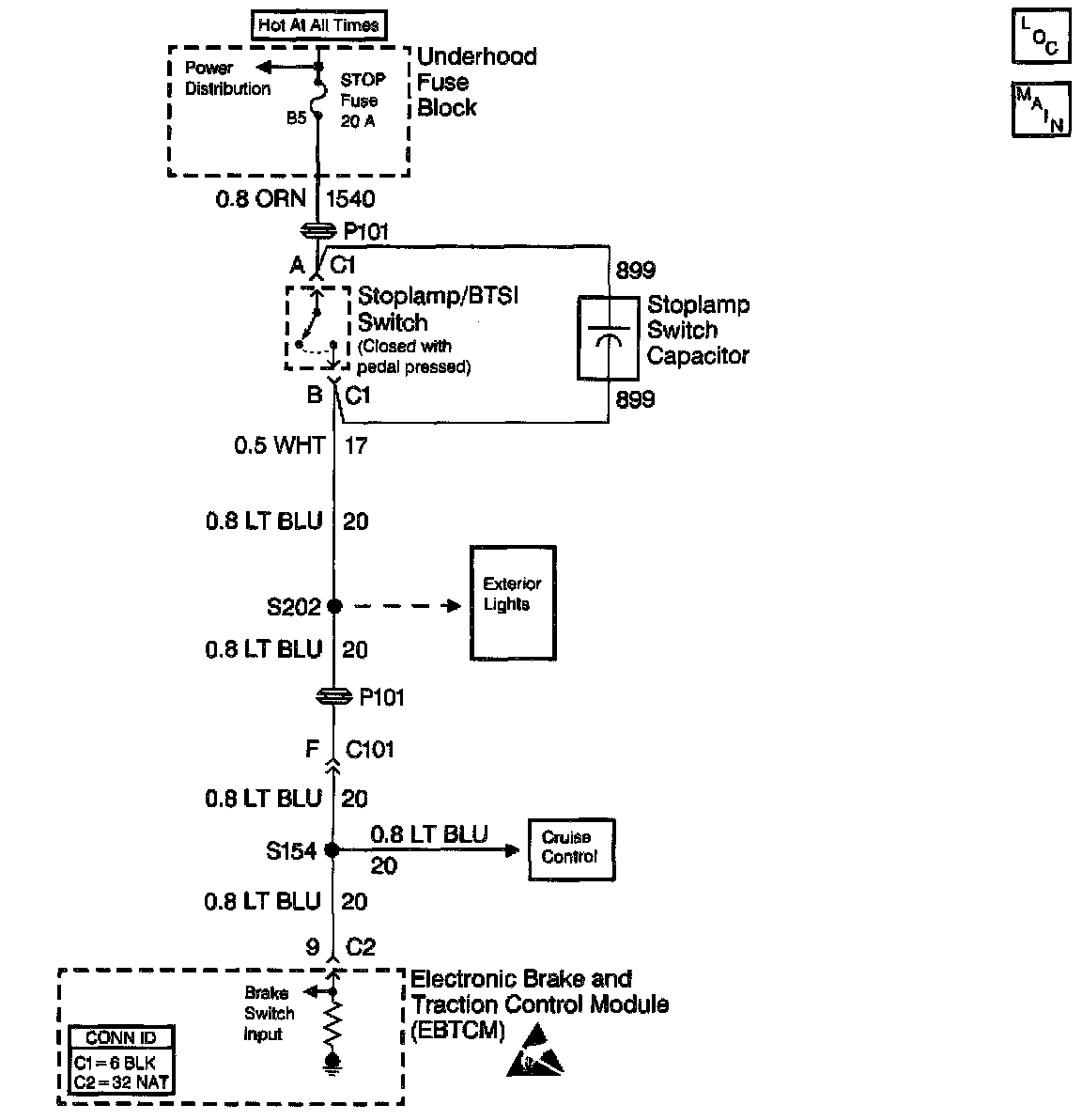

CIRCUIT DESCRIPTION
This DTC is used in order to identify open stoplamp switch circuitry that prevents the stoplamp switch input from changing states when the brake is applied. This DTC is used in conjunction with DTC C1291 in order to determine the cause of an open stoplamp switch malfunction.

CONDITIONS FOR SETTING THE DTC
This DTC sets after the following occur:
^ Initialization is completed.
^ The stoplamp/BTSI switch input voltage is out of specification for 1 second (indicating an open circuit).

ACTION TAKEN WHEN THE DTC SETS
^ A malfunction DTC is stored.
^ The TCS is disabled.
^ The TRACTION CONTROL indicator is turned ON.
^ The ABS remains functional.

CONDITIONS FOR CLEARING THE DTC
^ The condition for DTC is no longer present an you used scan tool Clear DTCs function.
^ The condition for DTC is no longer present and you used the On-Board Clear DTCs function.
^ The EBTCM does not detect the DTC in 50 drive cycles.

DIAGNOSTIC AIDS
^ It is very important that a thorough inspection of the wiring and connectors be performed. Failure to carefully and fully inspect wiring and connectors may result in misdiagnosis, causing part replacement with reappearance of the malfunction.
^ An intermittent malfunction can be caused by poor connections, broken insulation, or a wire that is broken inside the insulation.
^ If an intermittent malfunction exists refer to Intermittents and Poor Connection Diagnosis in Wiring Systems.
^ This condition may be cause by the following:
- The stoplamp/BTSI switch circuit is open.
- All brake lamps are open.
- The brake lamp switch is open or misadjusted.
- The brake lamp ground is open.
- The circuit has a wiring problem, terminal corrosion, or poor connections.

TEST DESCRIPTION

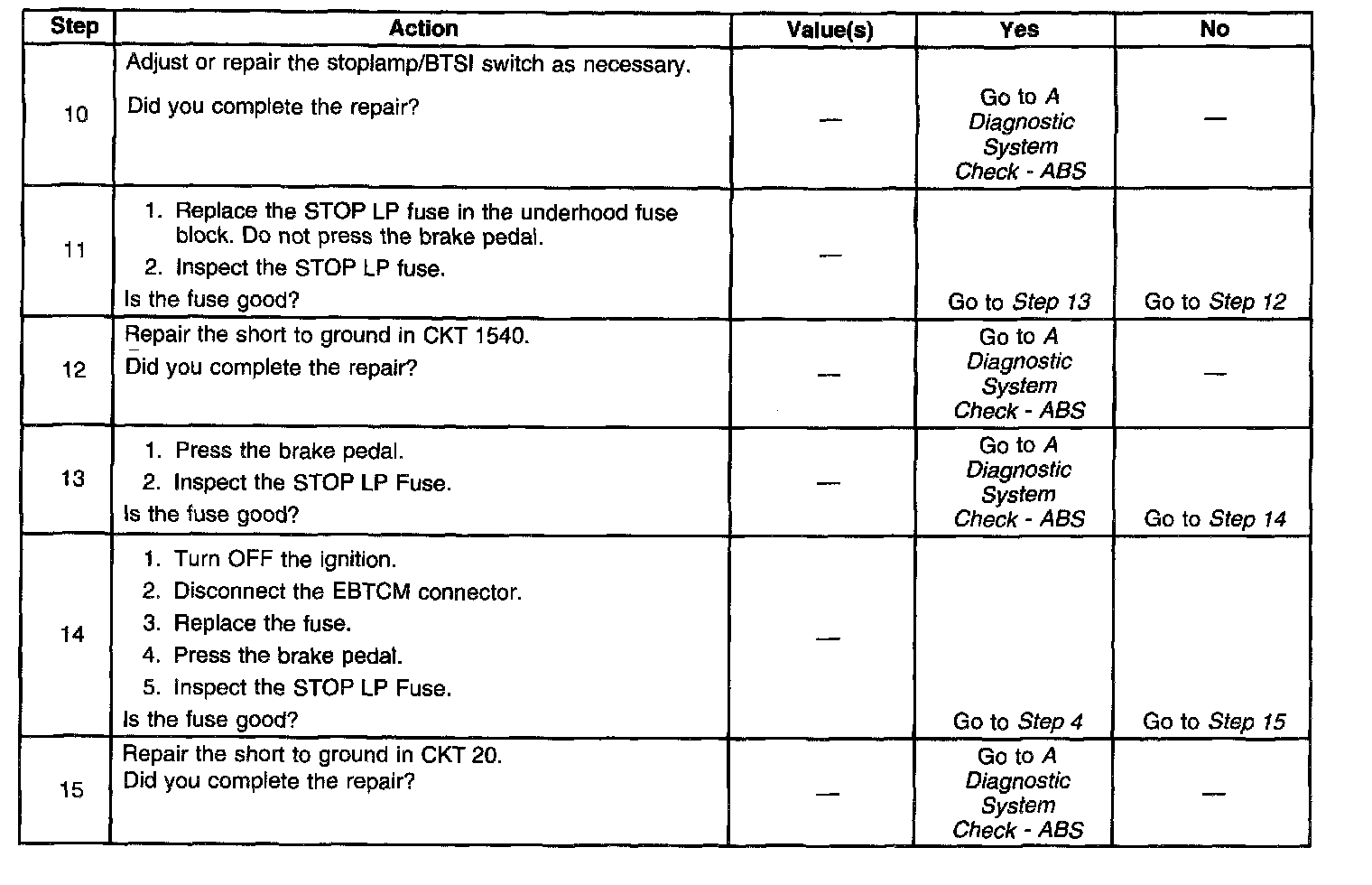

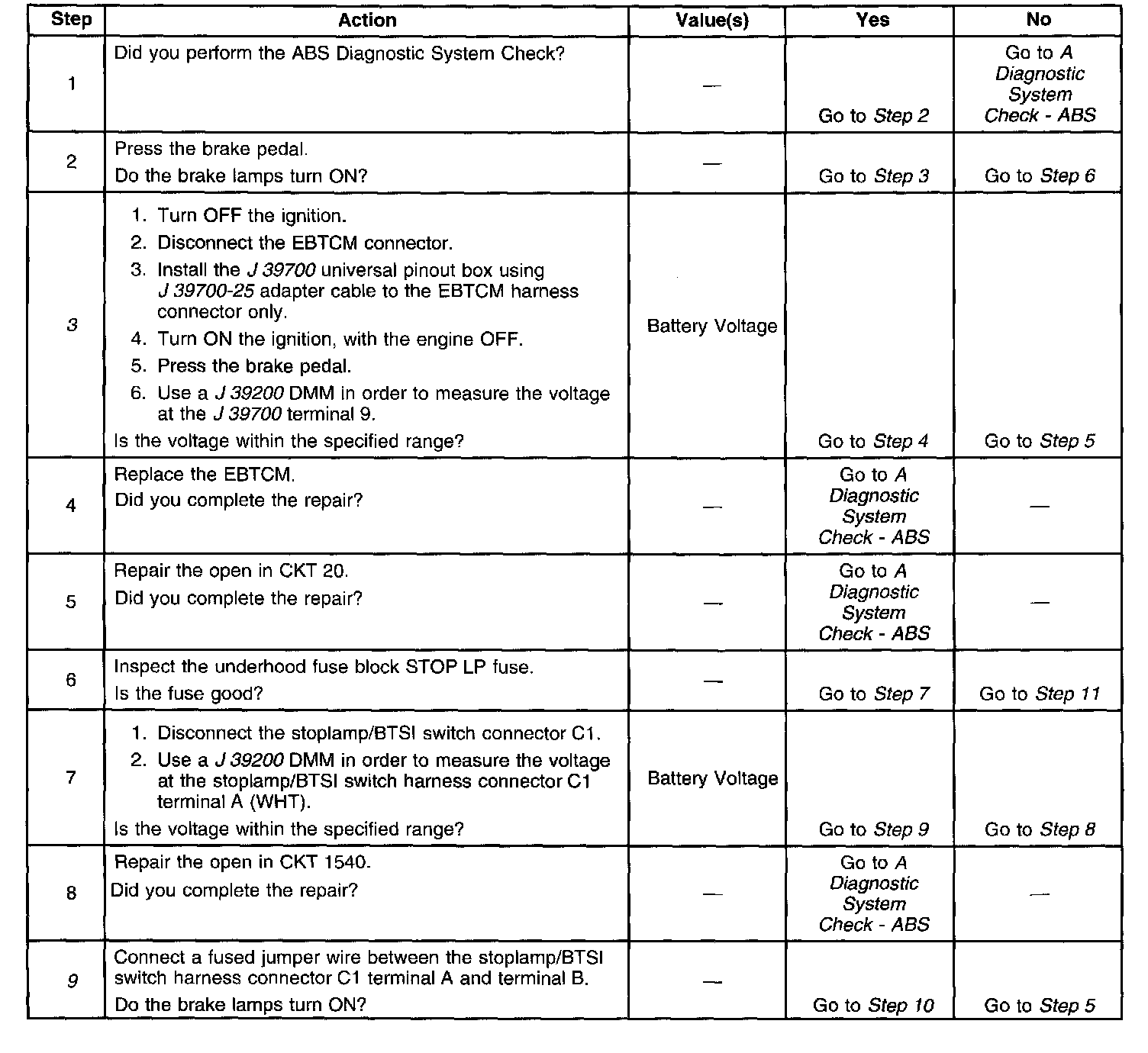

The numbers below refer to step numbers on the diagnostic table.
3. This step checks for voltage at the EBTCM.
9. This step checks the stoplamp/BTSI switch.
