C1291

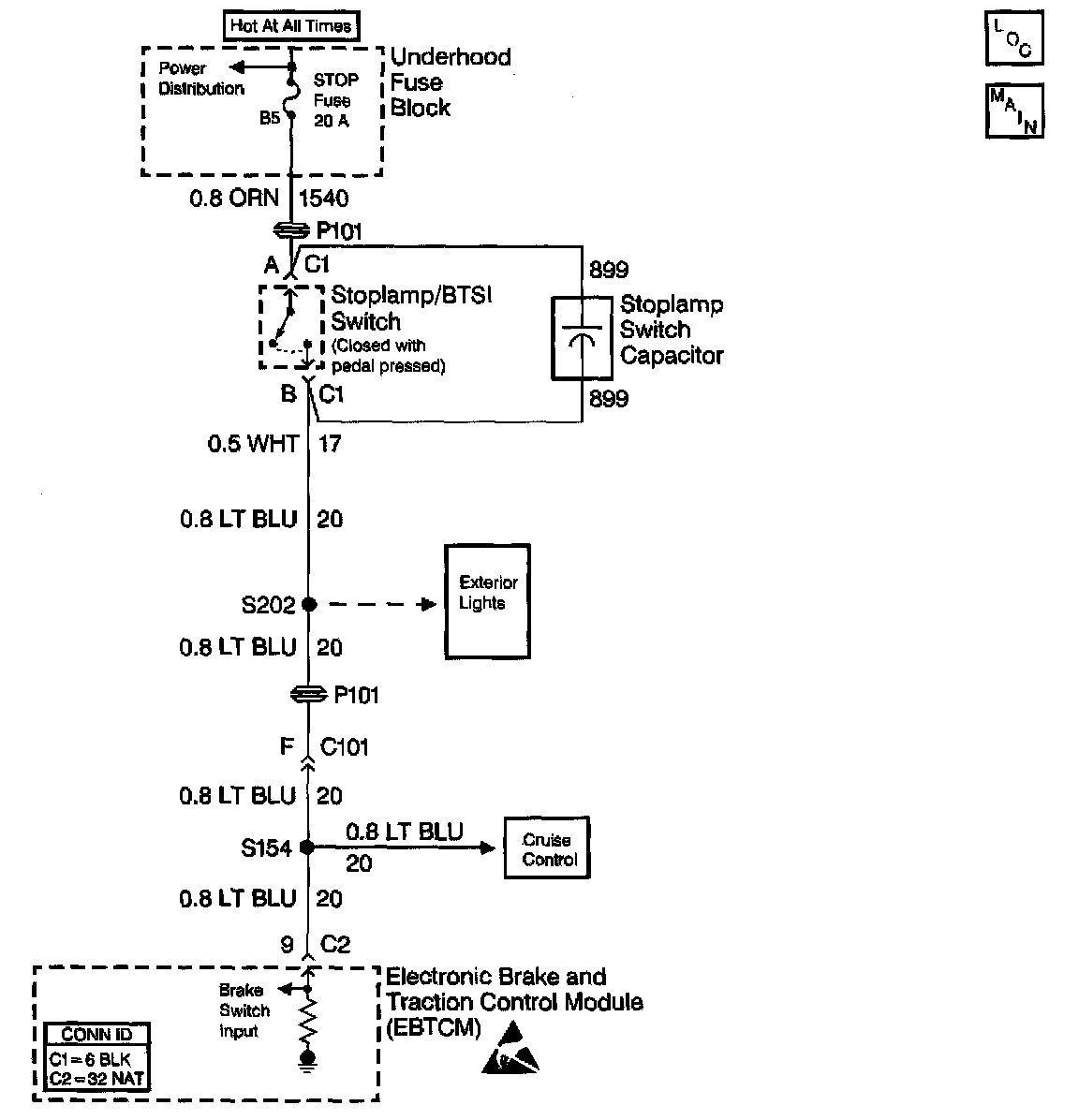

Part 1 Of 2:

Part 2 Of 2:

CIRCUIT DESCRIPTION
This circuit detects an open stoplamp/BTSI switch in the non-ABS mode. The EBTCM looks for a deceleration rate that indicates braking action and requires several repeats of this detection method in order to verify this assumption. In each case, the TCS will not be available since the EBTCM detects no stoplamp/BTSI switch voltage.

CONDITIONS FOR SETTING THE DTC
The stoplamp switch remains open for 3 deceleration cycles.

ACTION TAKEN WHEN THE DTC SETS
^ A malfunction DTC is stored.
^ The TCS is disabled.
^ The TRACTION CONTROL indicator is turned ON.
^ The ABS remains functional.

CONDITIONS FOR CLEARING THE DTC
^ The condition for DTC is no longer present and you used scan tool Clear DTCs function.
^ The condition for DTC is no longer present and you used the On-Board Clear DTCs function.
^ The EBTCM does not detect the DTC in 50 drive cycles.

DIAGNOSTIC AIDS
^ If any wheel speed sensor DTCs are present, diagnose them first. Refer to DTC List.
^ Thoroughly inspect the wiring and the connectors. Failure to carefully and fully inspect the wiring and the connectors may result in misdiagnosis. Misdiagnosis may cause part replacement with the reappearance of the malfunction.
^ An intermittent malfunction may be caused by a poor connection, broken insulation, or a wire that is broken inside the insulation.
^ If an intermittent malfunction exists, refer to Intermittents and Poor Connections Diagnosis in Wiring Systems.
^ This DTC may be caused by one of the following conditions:
- An open stoplamp/BTSI switch
- An open STOP Fuse
- The stoplamp/BTSI switch is misadjusted.
- Erratic wheel speeds
- The circuit has a wiring problem, terminal corrosion, or poor connections.

TEST DESCRIPTION

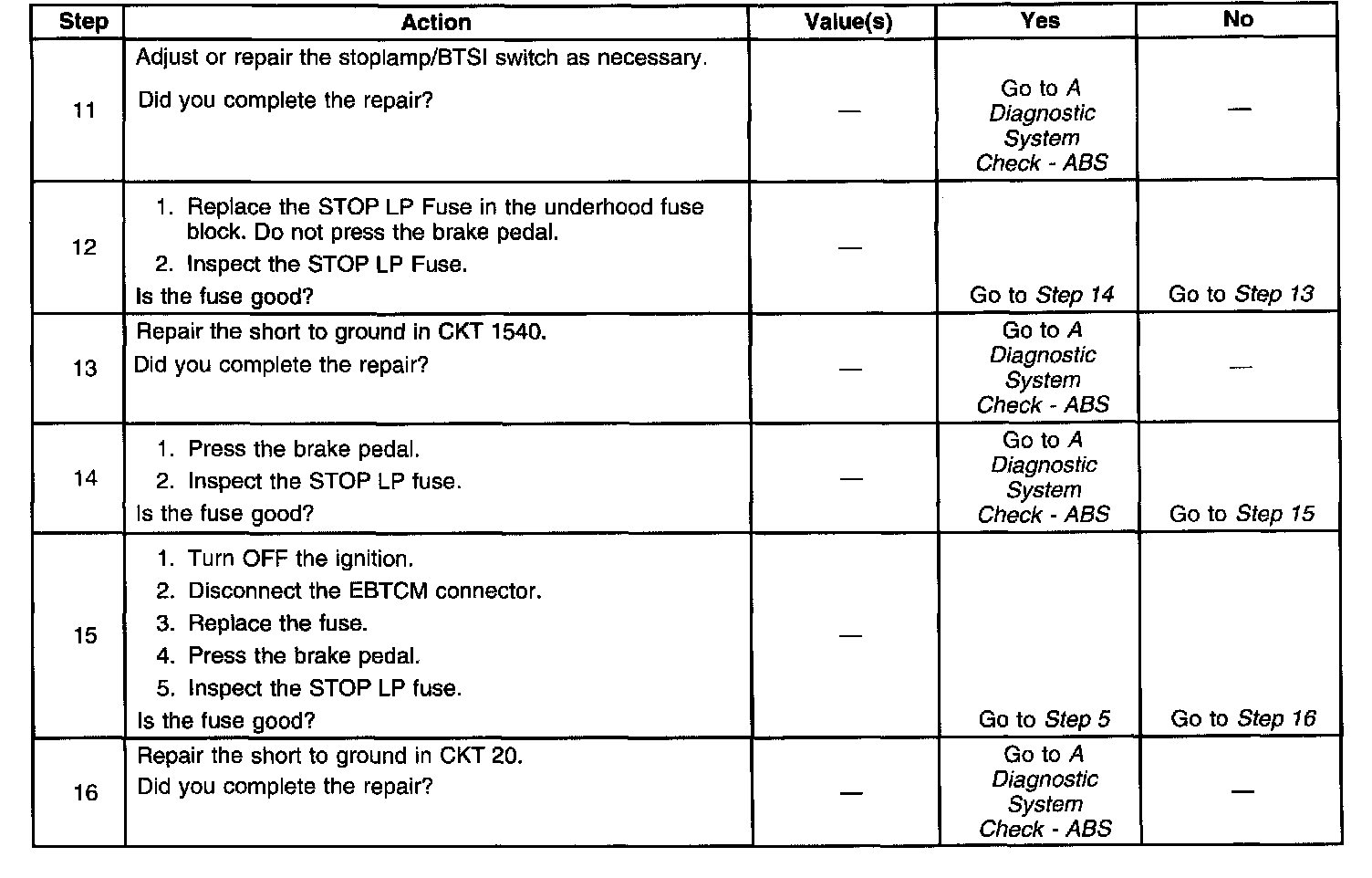

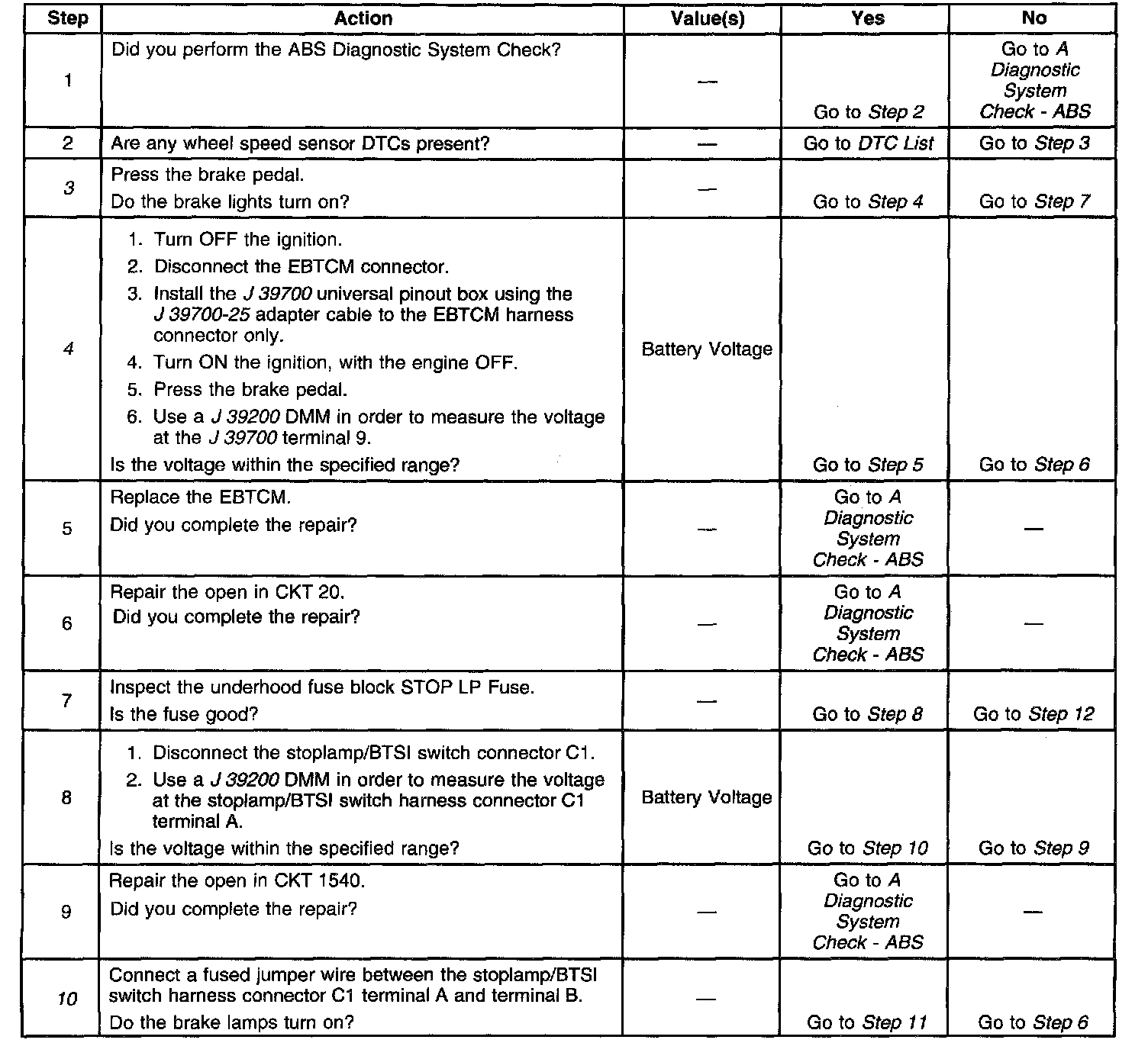

The numbers below refer to step numbers on the diagnostic table.
3. This step checks if the stoplamp/BTSI switch and the power distribution are functional.
4. This step checks for voltage at the EBTCM.
10. This step checks the stoplamp/BTSI switch.
