B3108

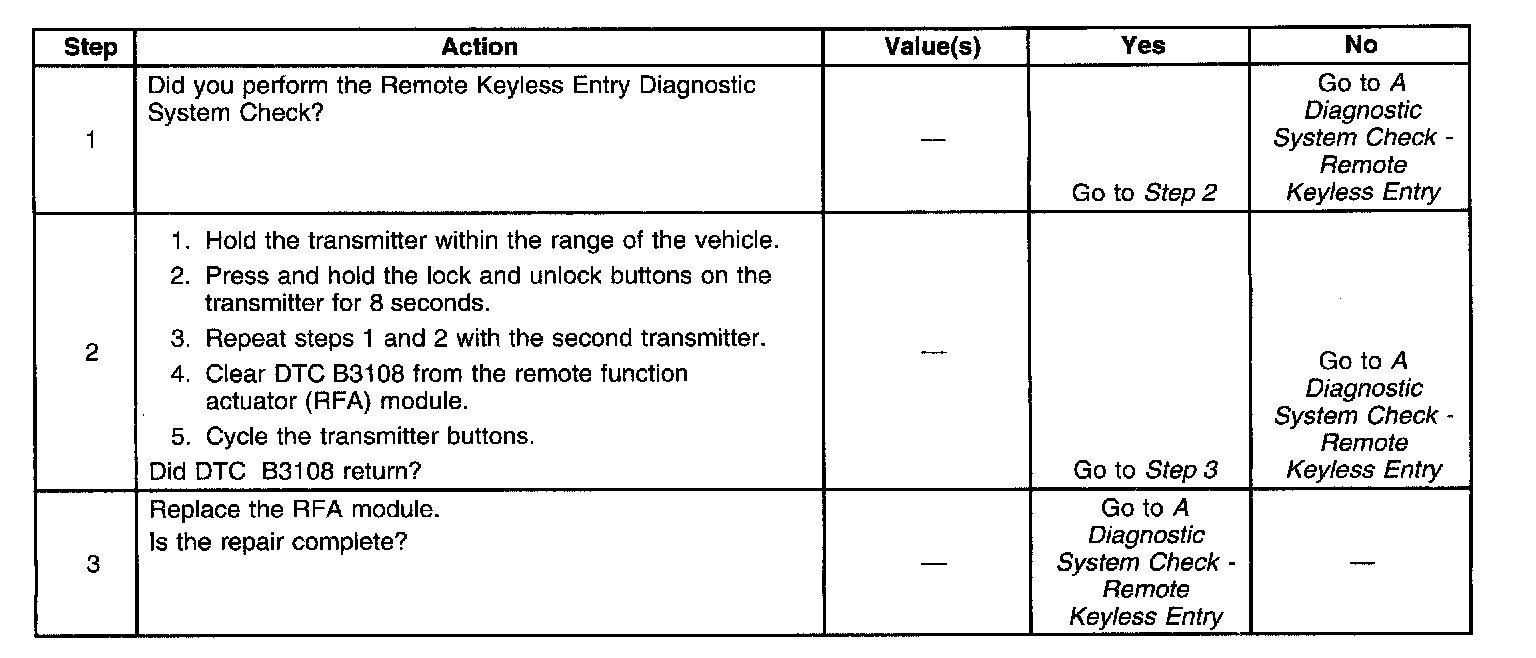

Diagnostics Trouble Code Charts:

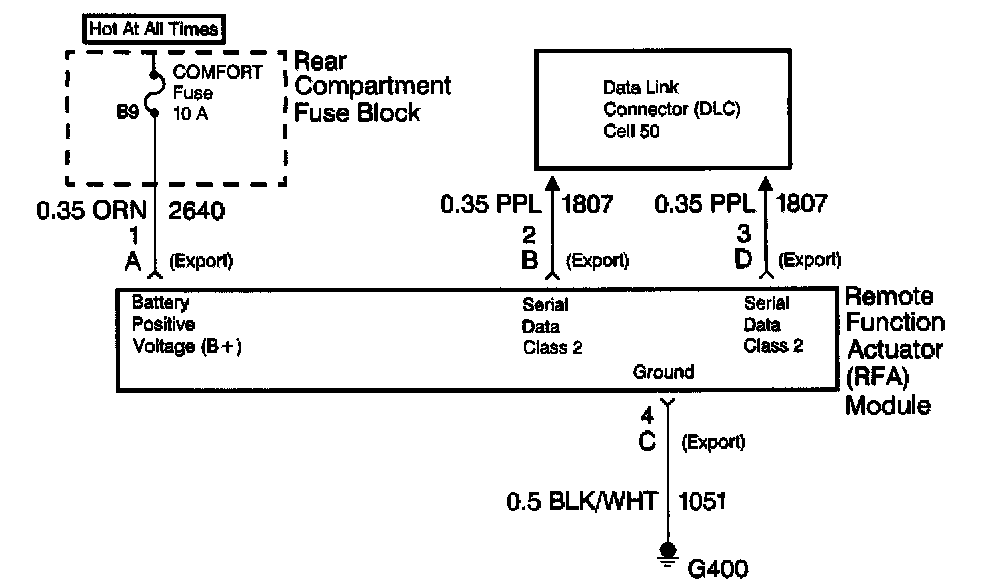

Wiring Schematics:

CIRCUIT DESCRIPTION
The Remote Function Actuator (RFA) module performs this test every time the module processes a message from a transmitter.

CONDITIONS FOR SETTING THE DTC
The RFA module sets this DTC if the module receives a transmission from an out of sync transmitter.

ACTION TAKEN WHEN THE DTC SETS
^ The RFA module stores a DTC B3108 in current memory.
^ No driver warning message is displayed for this DTC.

CONDITIONS FOR CLEARING THE DTC
The RFA module clears this DTC after a transmission is received from a valid synchronized transmitter.

DIAGNOSTIC AIDS
This DTC will stay in memory as current (then history, until cleared) until the module receives a valid transmission from the Remote Function Actuator (RFA) transmitters.
