B2116

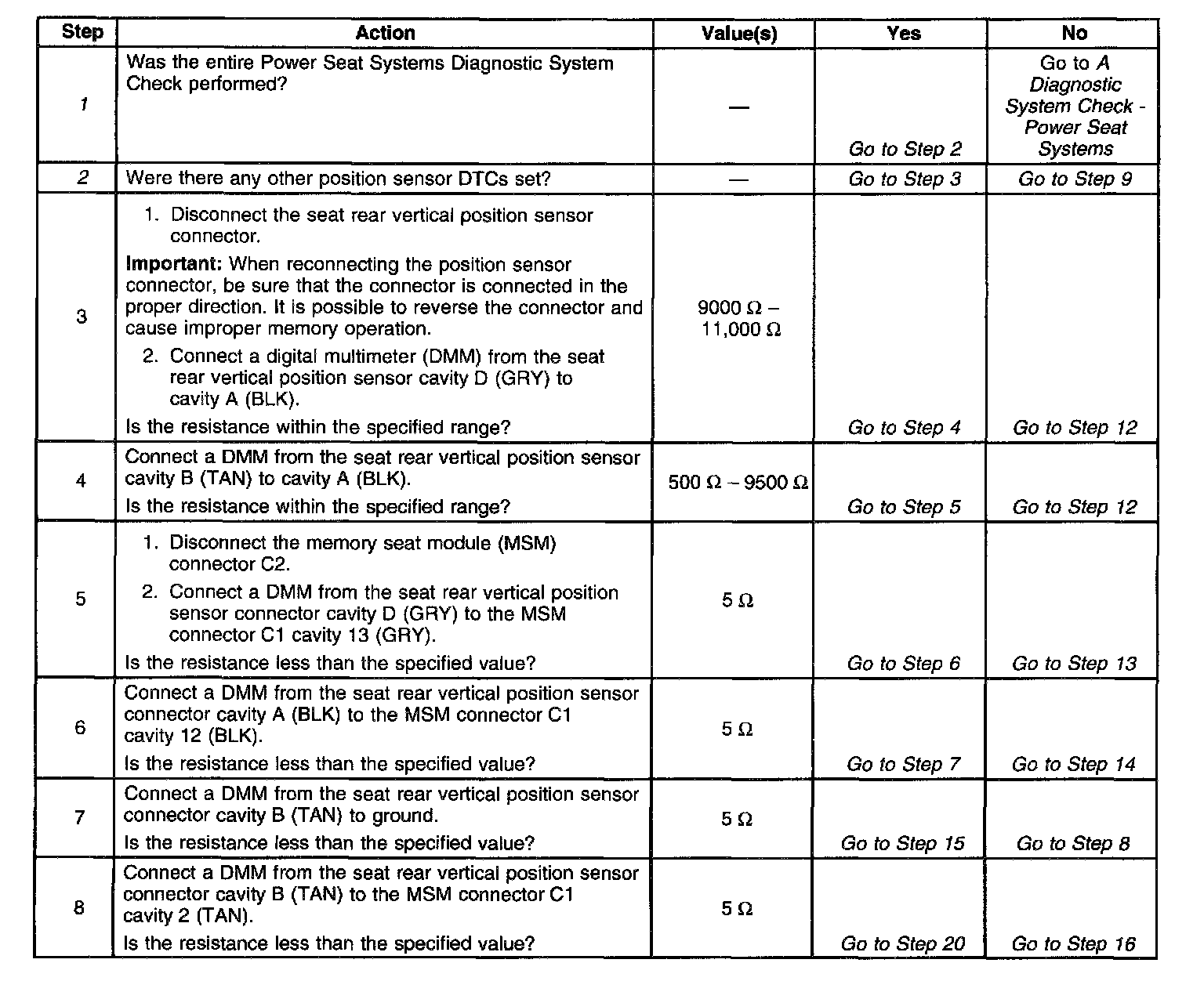

Diagnostic Trouble Code Chart (Part 1 Of 2):

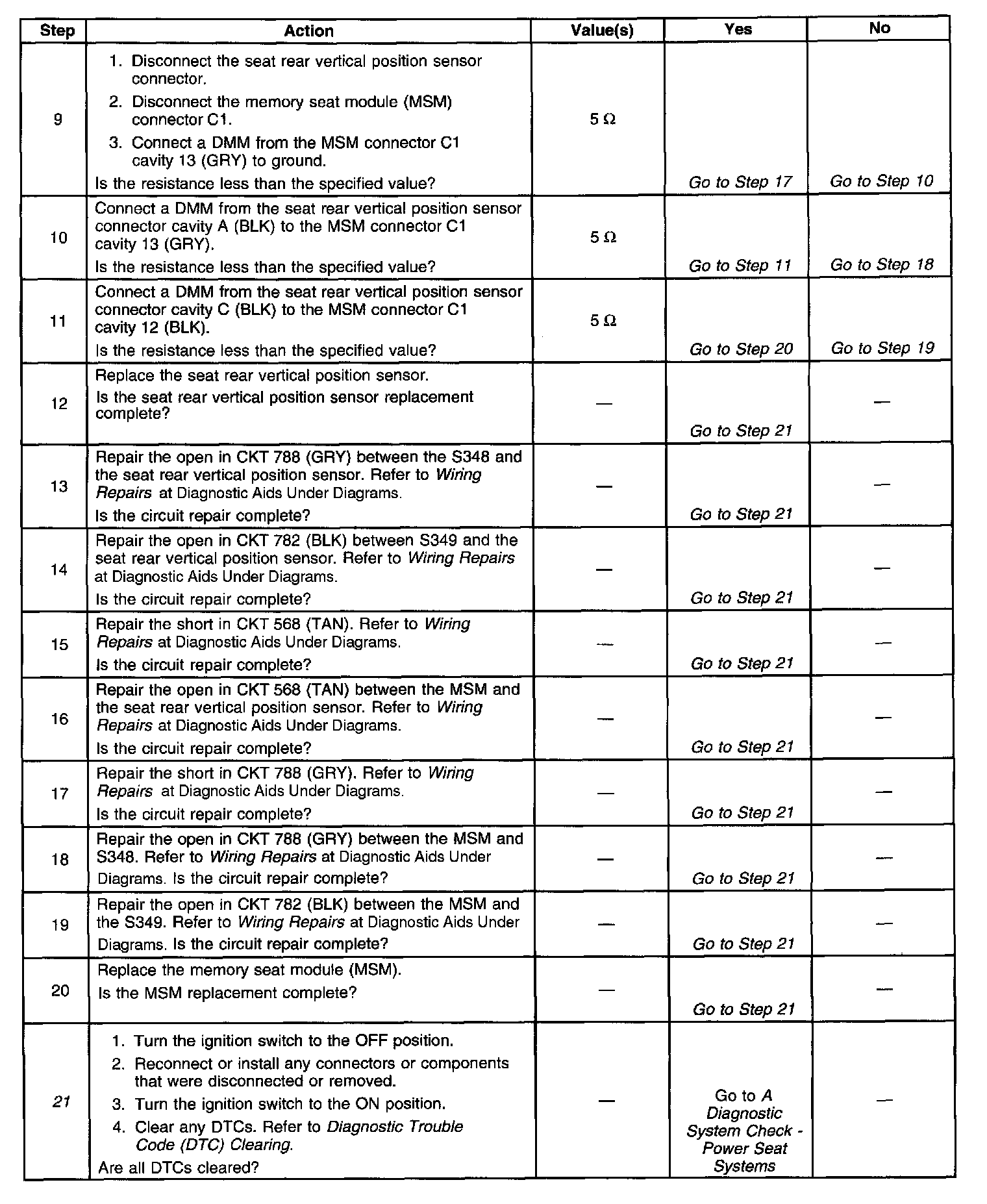

Diagnostic Trouble Code Chart (Part 2 Of 2):

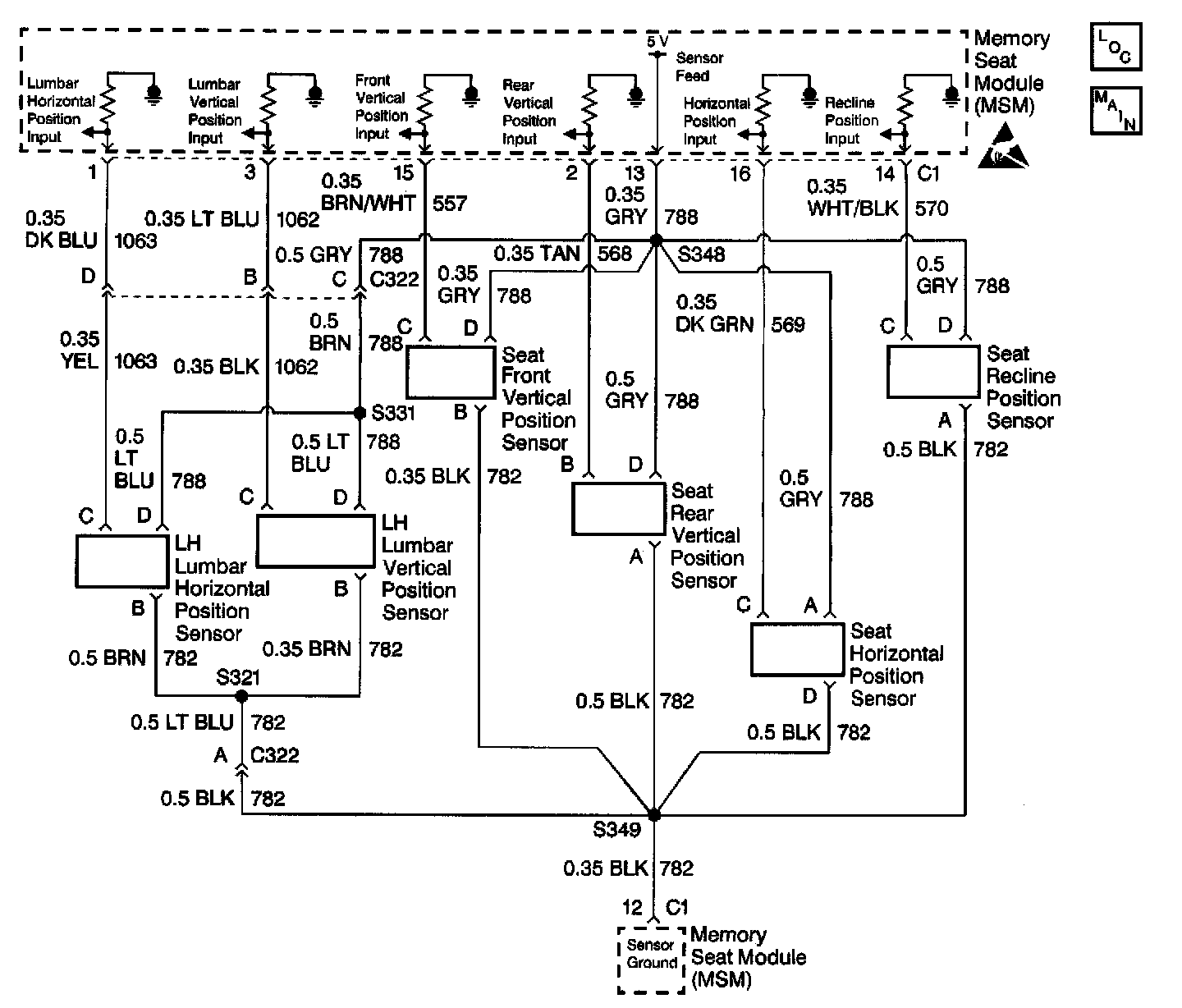

Wiring Schematic:

CIRCUIT DESCRIPTION
The Memory Seat Module (MSM) receives inputs from the seat rear vertical position sensor during memory recall, memory set, and easy exit functions. The potentiometer in the position sensor varies in resistance as the motor tilts the rear of the seat. The MSM receives a variable voltage input depending on the resistance of the potentiometer. During memory set, the MSM records the voltage across the seat rear vertical potentiometer. During memory recall, the MSM moves the seat rear vertical motor until the voltage across the potentiometer matches the voltages stored in memory. For the easy exit function, the MSM moves the seat rear vertical motor until the voltage matches what the MSM has recorded in memory for the easy exit. During normal operation, the seat rear vertical position sensor is checked against out-of-range voltage limits.

CONDITIONS FOR SETTING THE DTC
^ The MSM will set the DTC B2116 any time it detects that the seat rear vertical sensor input voltage is out of range.

Specification
Normal sensor input voltage: 0.25-4.75 V

^ DTC B2116 will set only if DTC B1982 MSM or DTC B1983 MSM is not current.

ACTION TAKEN WHEN THE DTC SETS
When DTC B2116 is set as current, the MSM will disable the seat rear vertical motor during memory recall or easy exit operations. The seat rear vertical motor will remain enabled for manual positioning.

CONDITIONS FOR CLEARING THE DTC
^ The MSM detects that the seal rear vertical position sensor input is within the valid voltage range.
^ Use the On-Boards clearing DTCs feature.
^ Use a scan tool.

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table:
1. Perform the Power Seat Systems Diagnostic System Check before continuing with the diagnosis of this DTC.
2. Multiple position sensor DTCs set indicates a concern with the reference wiring or MSM. Only one position sensor DTC set indicates a concern with the position sensor and wiring.
21. Clear all DTCs after the repair procedure is complete.
