B2109

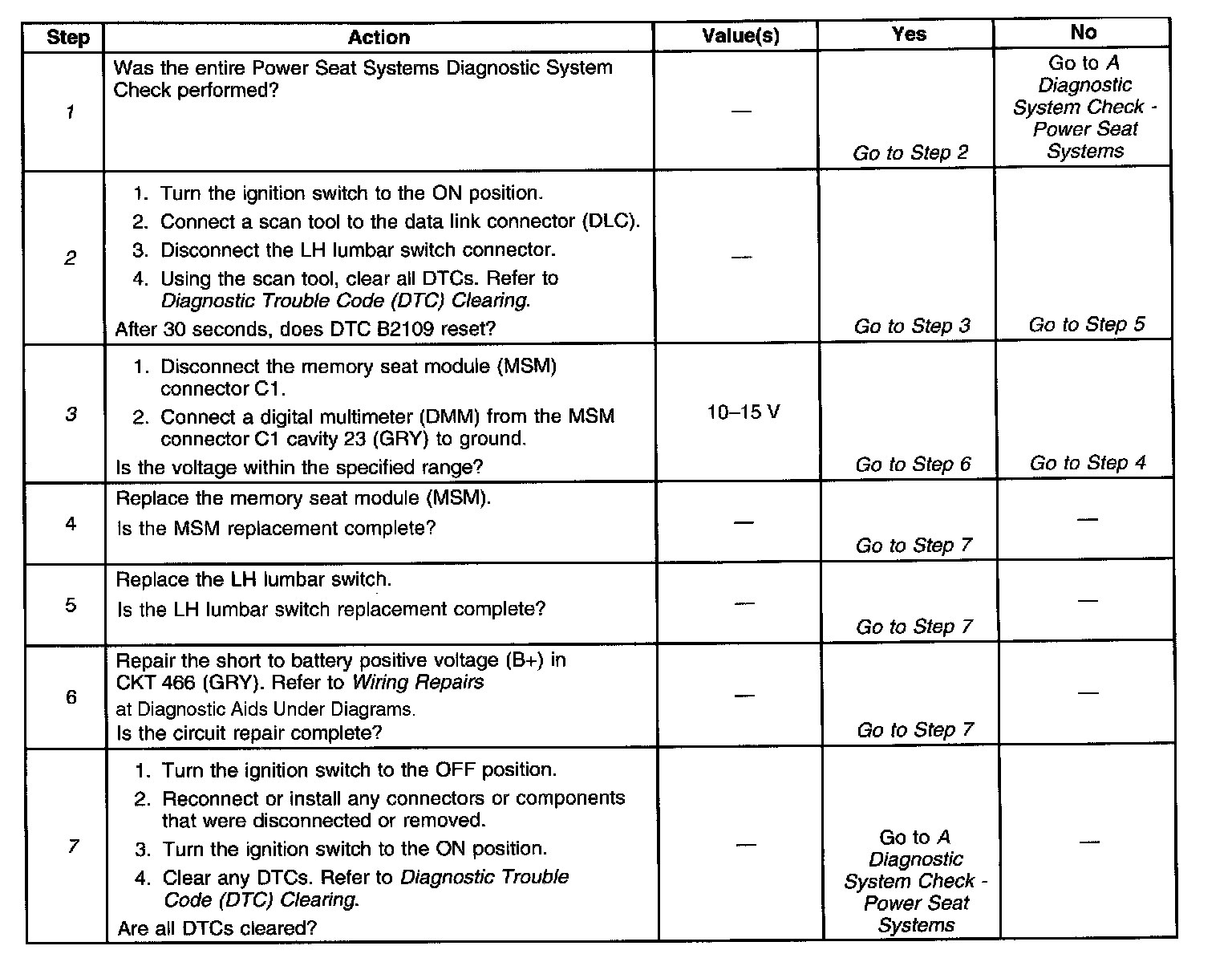

Diagnostic Trouble Code Chart:

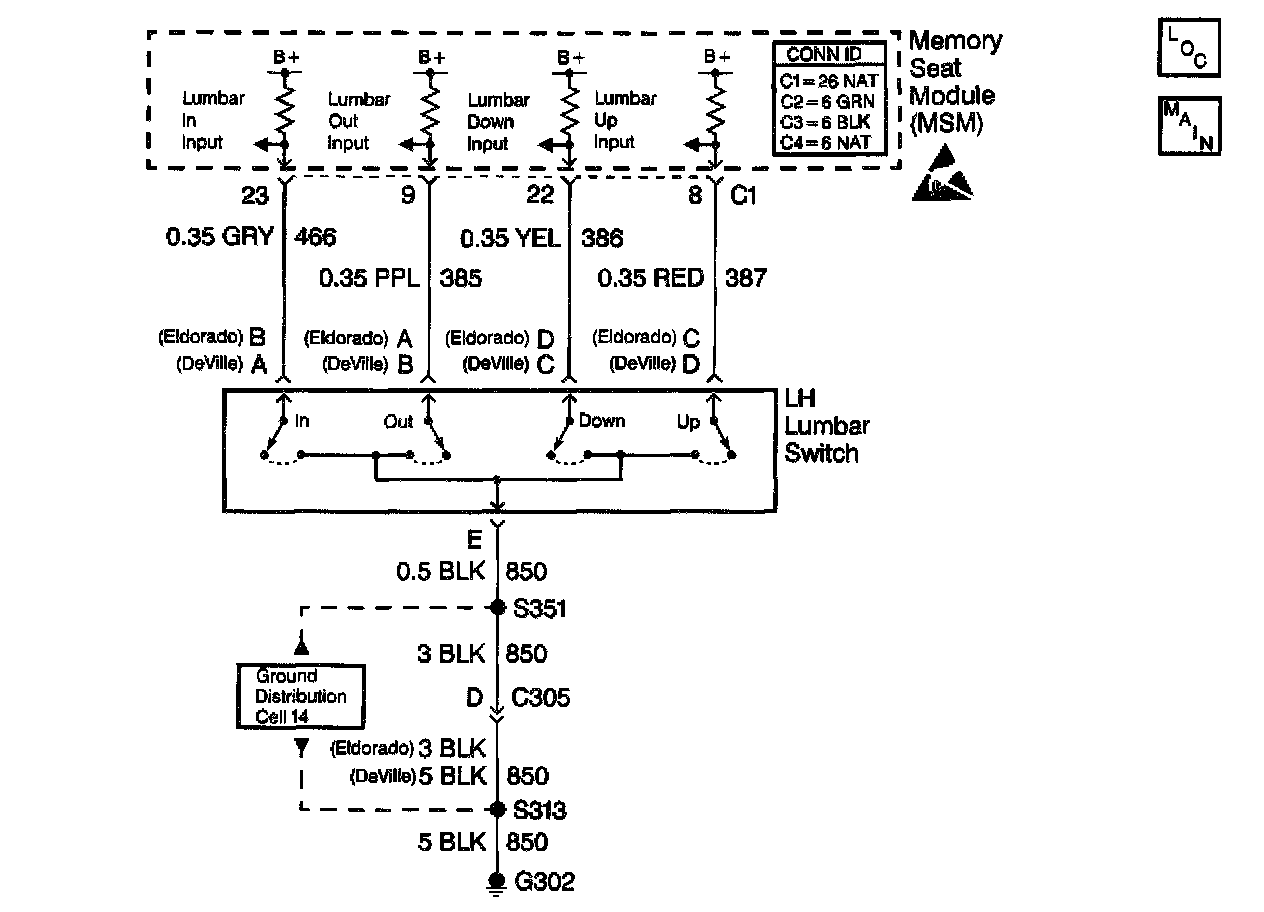

Wiring Schematic:

CIRCUIT DESCRIPTION
The Memory Seat Module (MSM) receives an input from the LH lumbar switch when the in switch is actuated. When the lumbar switch is operated in the in direction, battery positive voltage (B+) is supplied to the MSM lumbar in input via CKT 466 (GRY). The MSM recognizes the input and moves the lumbar support in, away from the driver's back.

CONDITIONS FOR SETTING THE DTC
^ When the lumbar in switch is active for 30 seconds after motion has ceased, the switch will be considered shorted and the DTC will set.
^ If the lumbar horizontal position sensor DTC B2119 is current and the lumbar in switch is active for 30 seconds, the switch will be considered shorted and the DTC will set.
^ DTC B2109 will set only if DTC B1982 MSM or DTC B1983 MSM is not current.

ACTION TAKEN WHEN THE DTC SETS
^ The MSM will not move the lumbar support in, away from the driver's back.
^ The MSM will continue to respond to valid inputs from the other manual switches.
^ All memory recall function commands will be ignored for all directions.

CONDITIONS FOR CLEARING THE DTC
^ The MSM sees that the lumbar in switch is no longer active.
^ Use the On-Boards clearing DTCs feature.
^ Use a scan tool.

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table:
1. Perform the entire Power Seat Systems Diagnostic System Check before continuing with the diagnosis of this DTC.
2. Determines whether there is a stuck switch or a short to battery positive voltage (B+) in the wiring input to the MSM. DTC B2109 will set again if there is a short in the wiring or there is an internal MSM problem. DTC B2109 will not set again if there is a stuck switch because the switch has been disconnected from the MSM input.
3. Determines whether there is a short to battery positive voltage (B+) in the input wiring to the MSM.
7. Clear all DTCs after the repair procedure is complete.
