Instrument Panel, Gauges and Warning Indicators Diagnosis

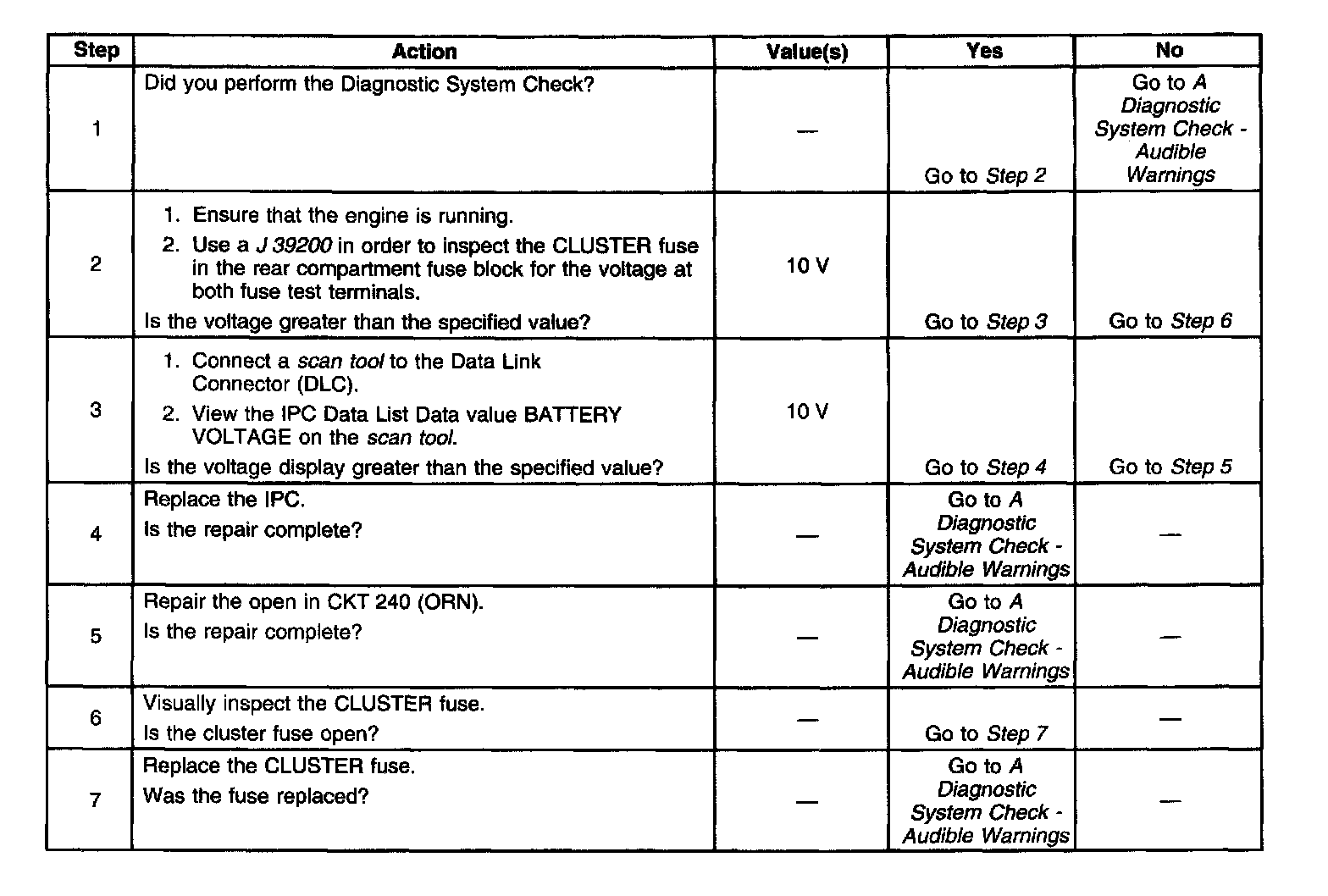

Diagnostic Trouble Code Chart:

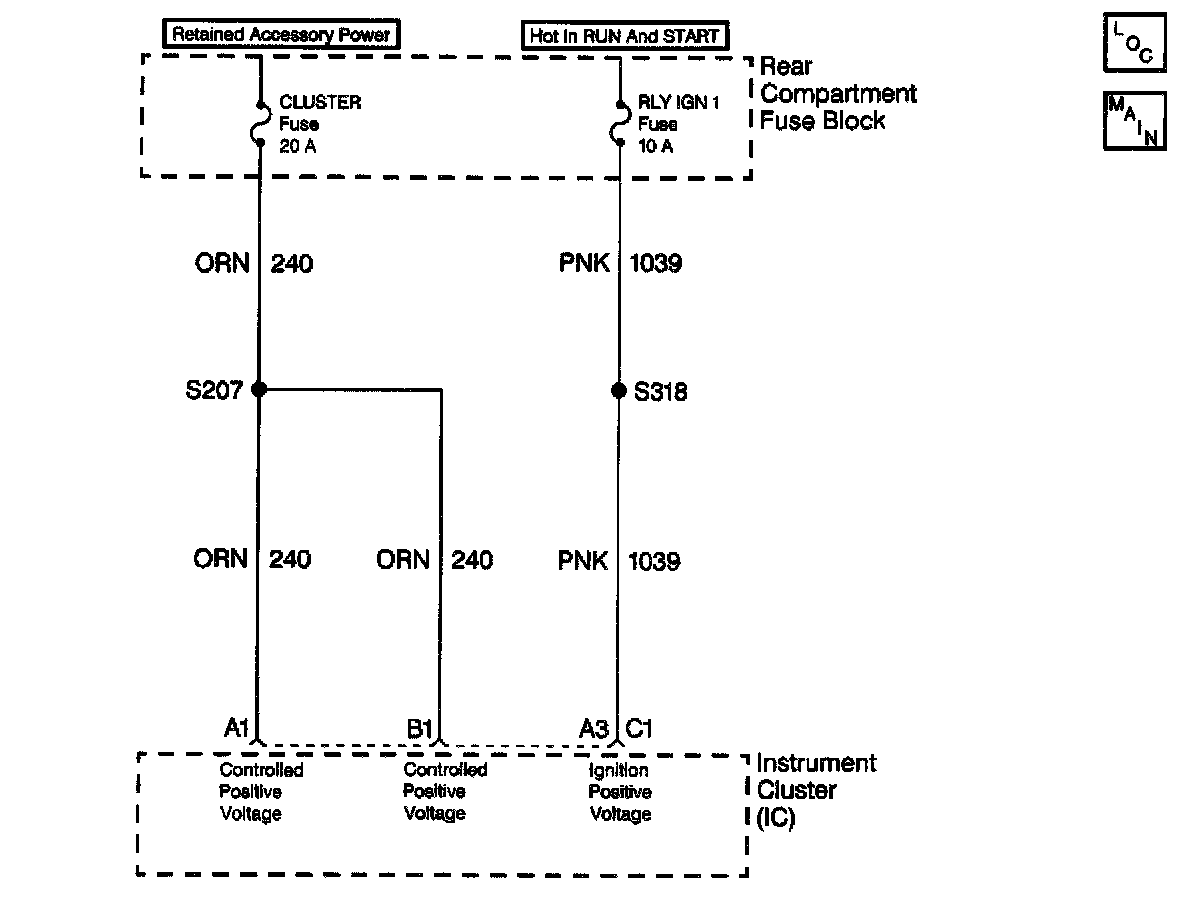

Wiring Schematic:

CIRCUIT DESCRIPTION
The battery voltage is supplied to the IPC connector C1 terminals A1 and B1. When the IPC is awake, the voltage at the IPC connector C1 terminals A1 and B1 are measured every 300 ms.

This DTC indicates a circuit malfunction is preventing the alternator from charging.

CONDITIONS FOR SETTING THE DTC
The battery voltage measured at the IPC connector C1 terminals A1 and B1 is less than 9 V for four 4 monitoring cycles.

ACTION TAKEN WHEN THE DTC SETS
No loss of the class 2 serial data DTCs are set.
