B1971

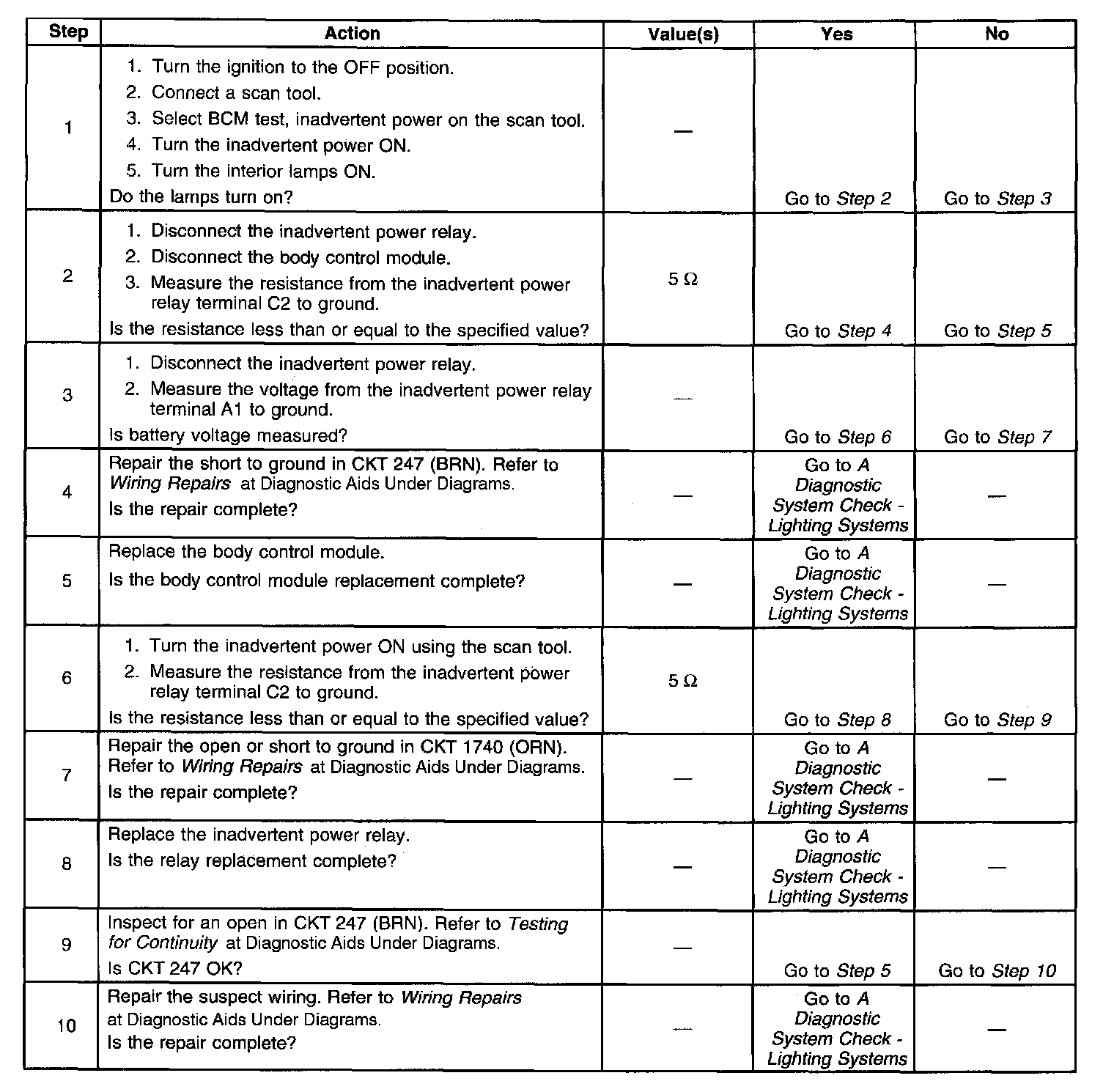

Diagnostic Trouble Code Chart:

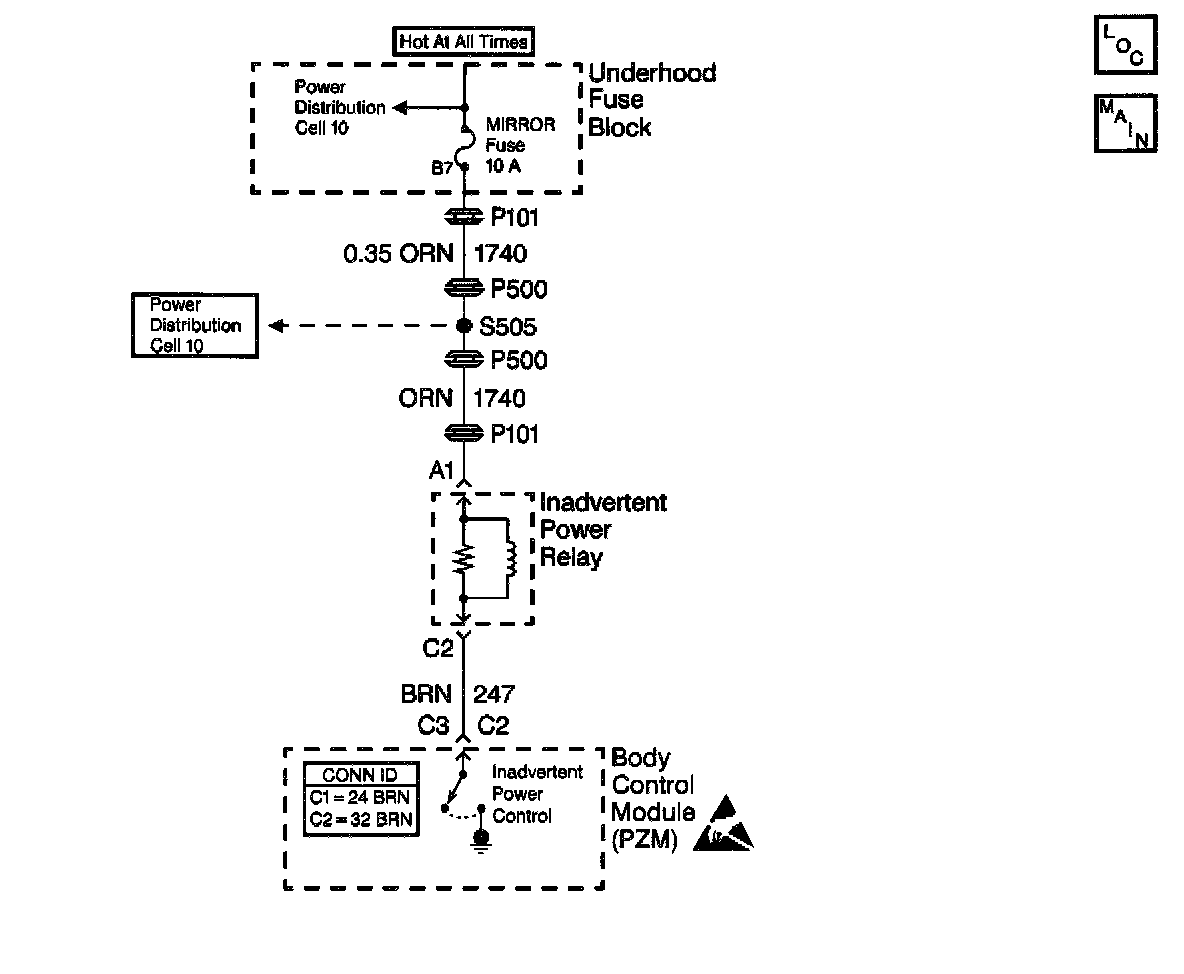

Wiring Schematic:

CIRCUIT DESCRIPTION
The inadvertent power is commanded ON and OFF by the body control module (PZM) inadvertent power output by grounding the inadvertent power relay in connector C2 at terminal C3. The relay and the components powered through the relay are energized and supplied battery voltage.

CONDITIONS FOR SETTING THE DTC
The inadvertent power relay is commanded ON or OFF and the PZM feed back does not match that of the commanded state for at least 2 seconds.

ACTION TAKEN WHEN THE DTC SETS
The PZM continues to command the requested state of the relay until the state is achieved or no longer necessary.

CONDITIONS FOR CLEARING THE DTC
The PZM feedback matches that of the commanded state for at least 2 seconds.
^ When the measurements are requested in this chart use J 39200 Digital Multimeter (DMM) with the correct terminal adapter from the J 35616-A.
^ When a proper connection is requested, refer to Intermittents and Poor Connections Diagnosis.
^ When a wire, connector or terminal repair is requested, use the J 38125-B. Refer to Diagrams.
