B1171

Circuit Description
DTC B1171 is an indication of a potential internal Inflatable Restraint Sensing and Diagnostic Module (SDM) malfunction. DTC B1171 will set upon detection of any condition in the table below.

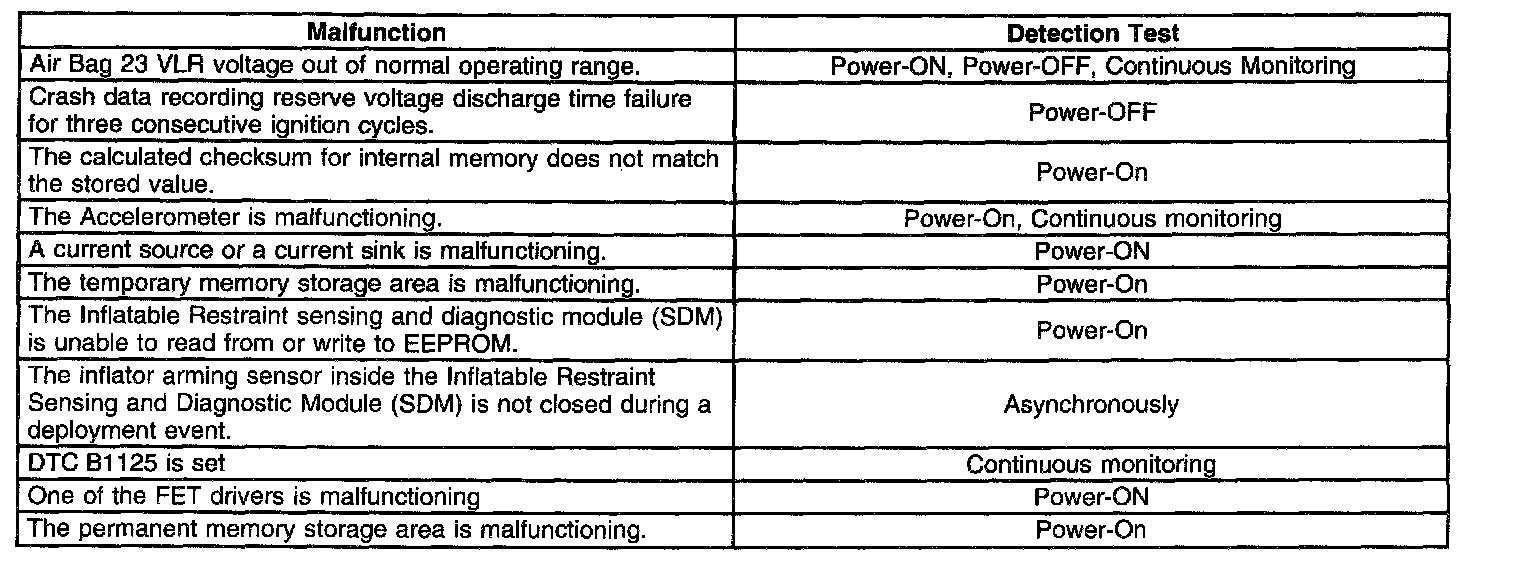

Conditions for Setting the DTC




Action Taken When the DTC Sets
^ The SDM sets a diagnostic trouble code.
^ The SDM commands the instrument panel cluster (IPC) in order to turn ON the AIR BAG warning lamp.

Conditions for Clearing the MIL/DTC
^ Current DTC
The malfunction has not been detected for 500 milliseconds.
^ History DTC
- You issue a scan tool CLEAR CODES command.
- 250 malfunction free ignition cycles occur.

Diagnostic Aids

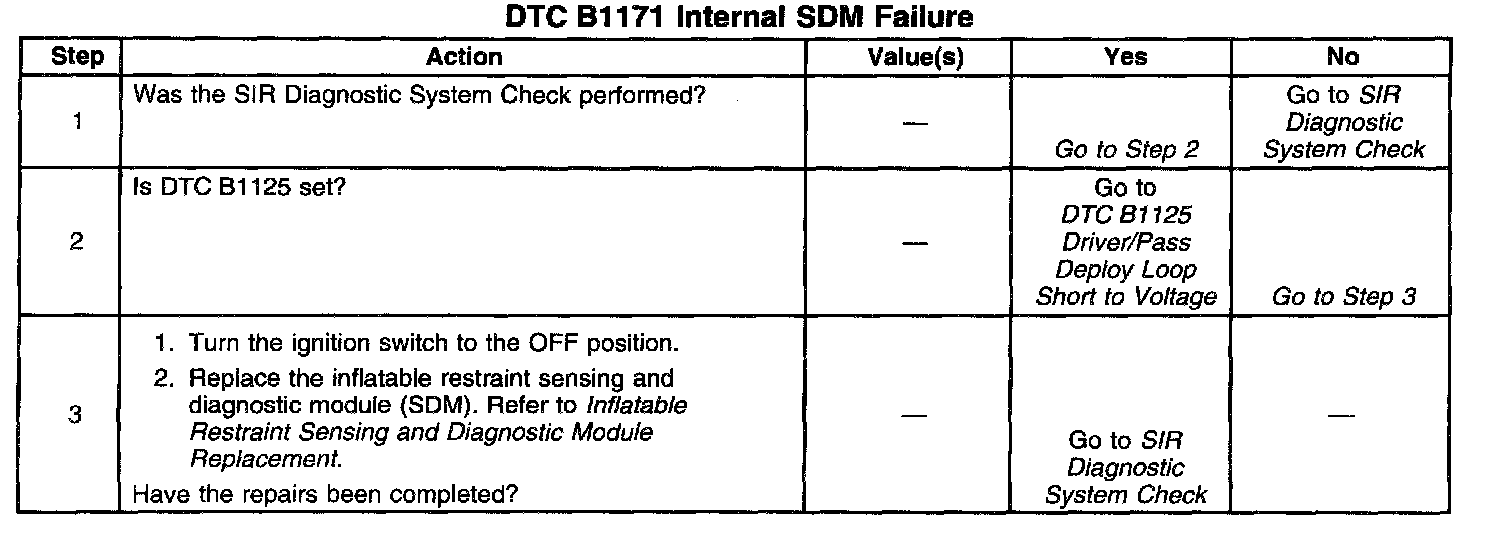

DTC B1171 indicates a fault within the SDM. Replace the SDM if DTC B1171 sets, current or history.

Notice: When DTC B1125 has been set it is necessary to replace the Inflatable Restraint Sensing and Diagnostic Module (SDM). Setting DTC B1125 will also cause DTC B1171 to set. When a scan tool clear codes command is issued and the malfunction is no longer present, DTC B1171 will remain current. Make sure that the short to voltage condition is repaired prior to installing a replacement SDM to avoid damaging the SDM.
