B0533

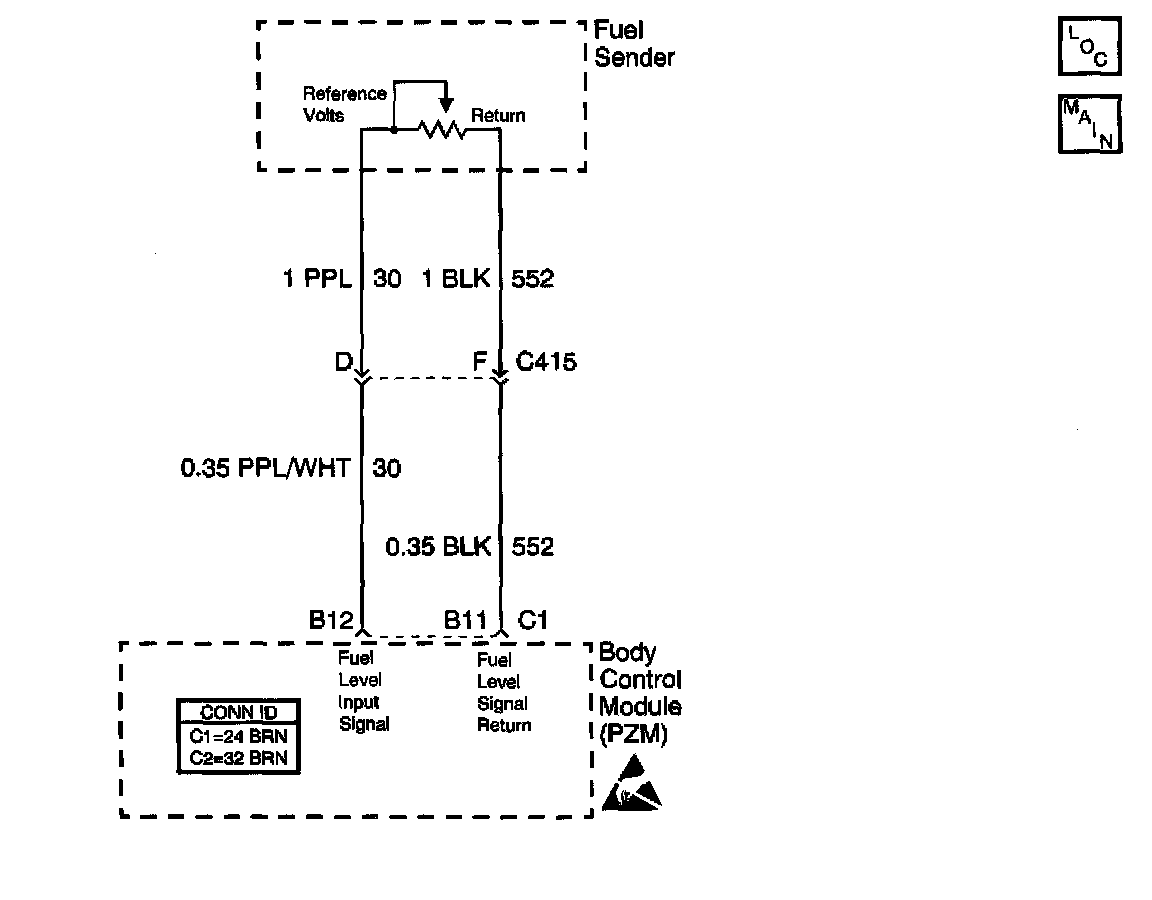

Wiring Schematic:

CIRCUIT DESCRIPTION
The PZM monitors the fuel level and transmits this information over Class 2 serial data to the instrument cluster to be displayed and to the PCM. While the ignition switch is in the RUN position, the PZM measures the voltage at connector C1 terminal B12 every 125 ms. Also, the PZM determines the position of the sensor by calculating the percentage of Ignition 1 that is present at the terminal.

CONDITIONS FOR SETTING THE DTC
The percentage of Ignition 1 voltage at connector C1 terminal B12 is greater than an acceptable level for at least 2 seconds.

ACTION TAKEN
The PZM will send a Class 2 message to the PCM that the percentage it Ignition 1 voltage is too high.

CONDITIONS FOR CLEARING THE DTC
The percentage of Ignition 1 voltage at connector C1 terminal B12 is less than or equal to an acceptable level for at least 1 cycle.

DIAGNOSTIC AIDS
^ This DTC will not be set but a Class 2 message will be sent to the PCM that the percentage of Ignition 1 voltage is too low if the following DTCs are current:
- DTC B1982
- DTC B1983
^ Inspect for a short to battery positive in CKT 30 (PPL). If OK, perform the following procedures:
- If the DTC is still current, replace the PZM.
- If the DTC is history, replace the fuel level sender.
