Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Windows and Glass >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Locations >> Connector Locations >> Window Switch Connector, Rear Side Door

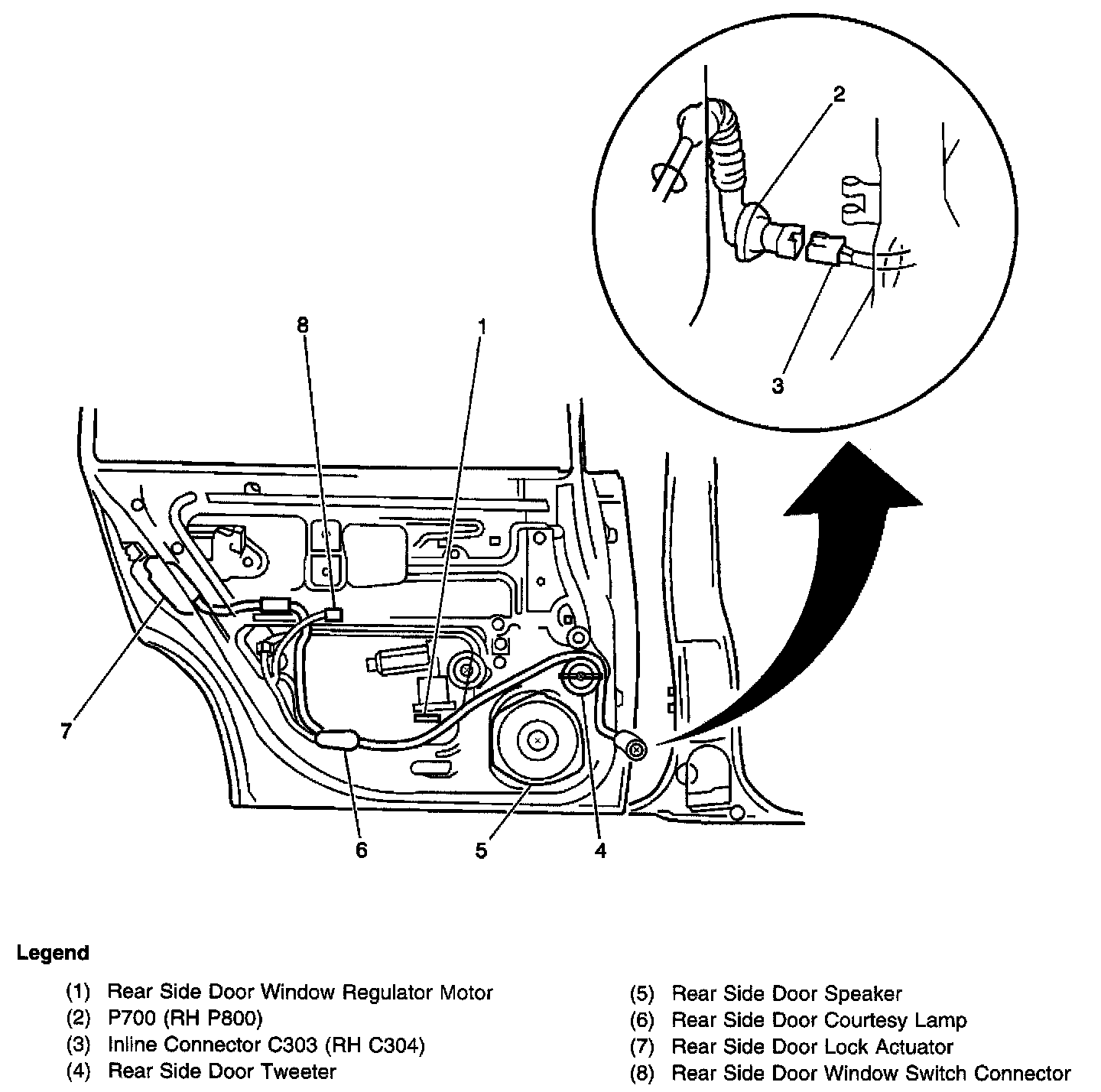

Window Switch Connector, Rear Side Door

LH Rear Side Door (RH Similar):
