Heated Glass Element Relay: Diagrams

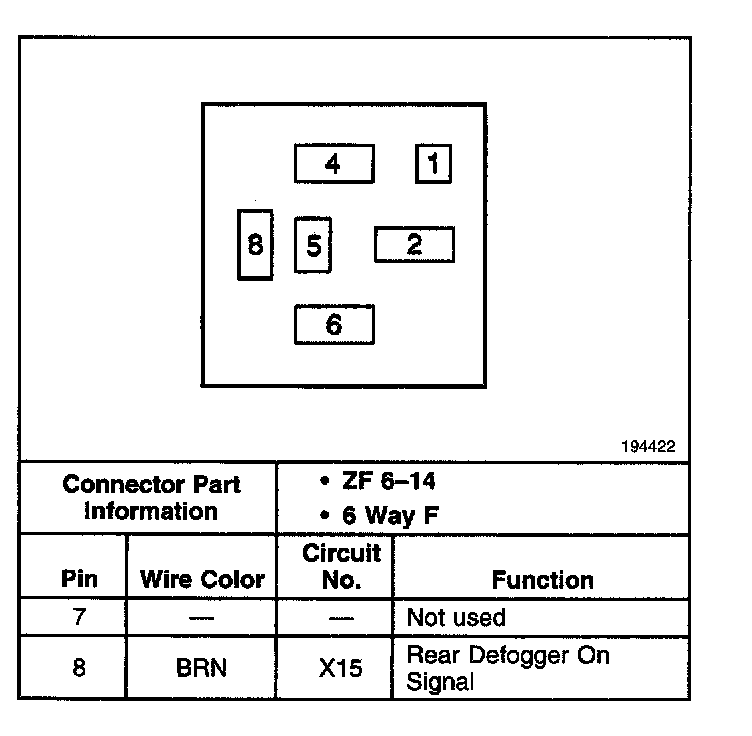

Heated Outside Rear View Mirror And Rear Window Defogger Relay K35 (Part 2 Of 2):

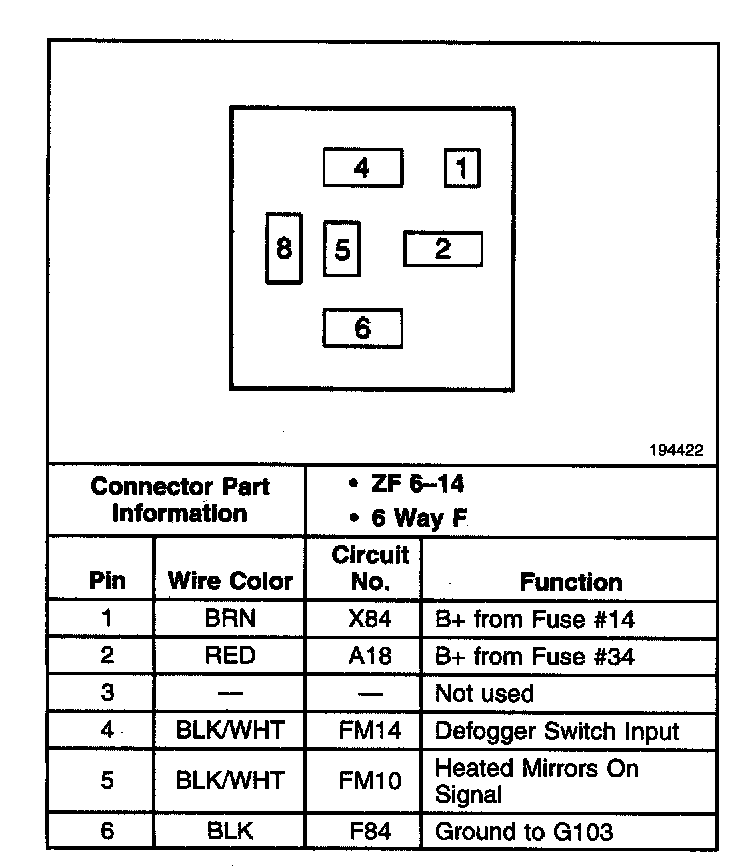

Heated Outside Rear View Mirror And Rear Window Defogger Relay K35 (Part 1 Of 2):

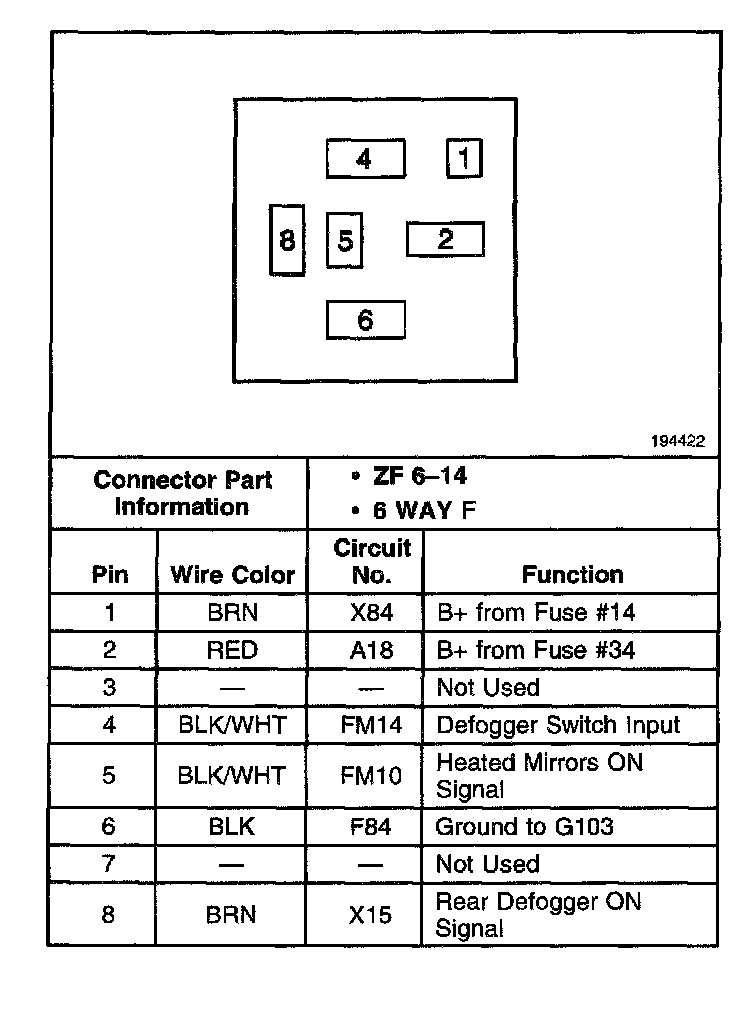

Heated Outside Rear View Mirror And Rear Window Defogger Relay K35:
