13. Speed Sensor Removal

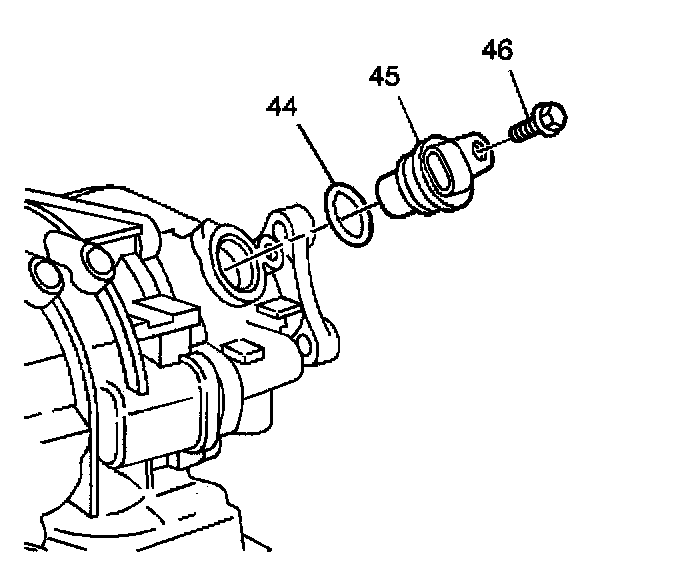

1. Remove the speed sensor bolt (46).
2. Remove the speed sensor (45) and seal (44).
