Drive End Bushing Replacement

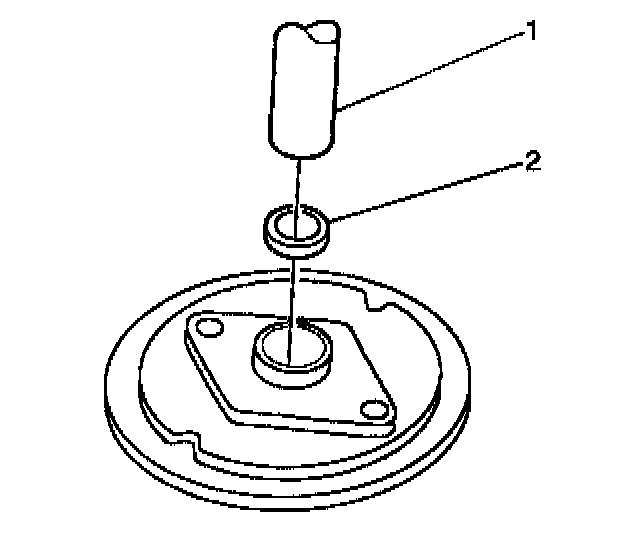

1. Soak the new bushing (2) in oil for at least 1/2 hour before installation.
2. Place a suitable size socket under the housing.
3. Use a suitable size driver (1) in order to drive the bushing from the housing.
4. Press in the new bushing using a suitable size driver and a press.
