AC Compressor K60
AC Compressor K60

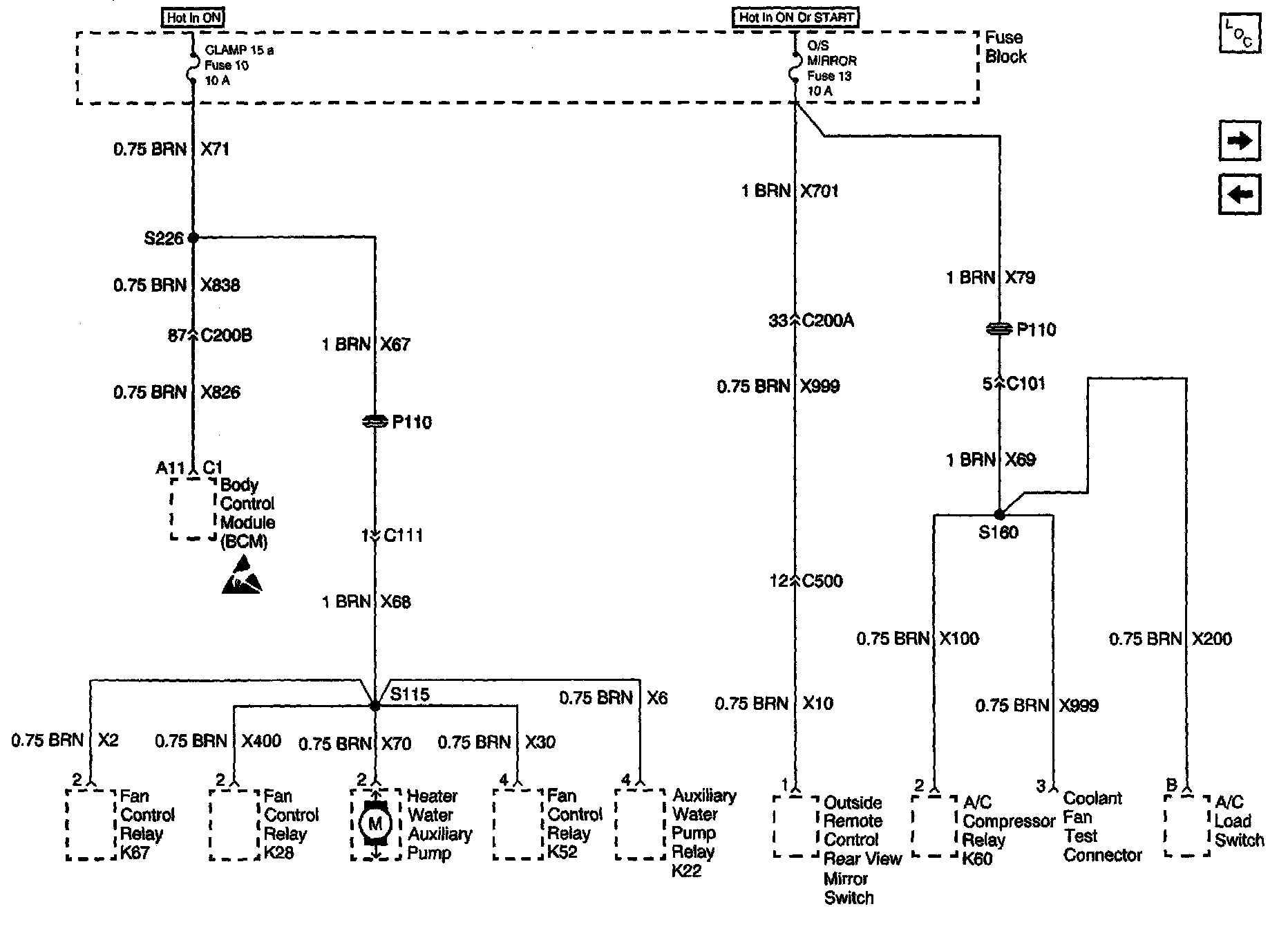

Power Distribution Schematics: Fuse Block, Fan Control Relays, BCM, Heater And AC Controls And AC Load Switch:
