A A Fuses By Component
>>
SUNROOF
SUNROOF

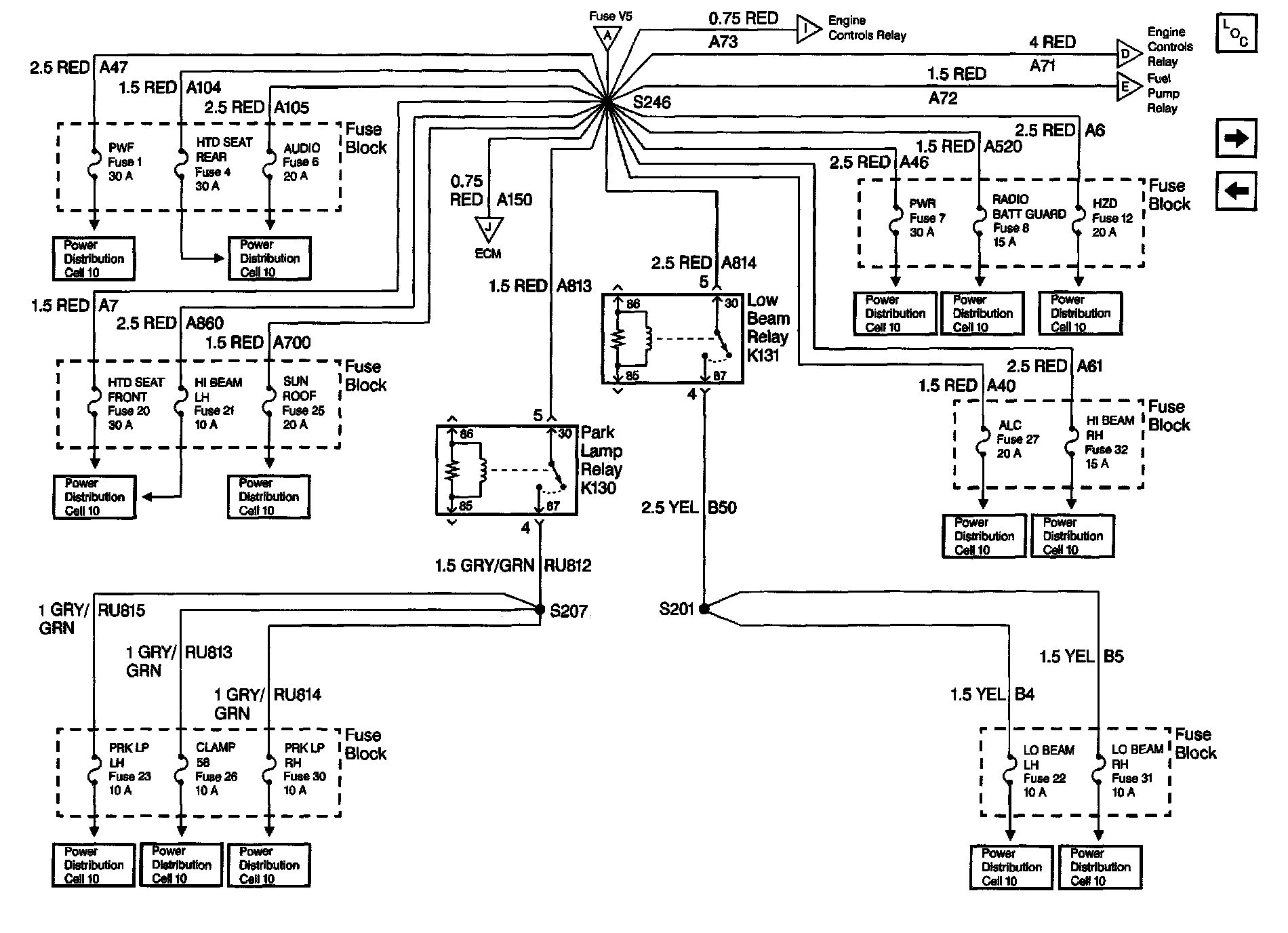

Power Distribution Schematics: Fuse Block, Low Beam Relay And Park Lamp Relay:
Power Distribution Schematics: Fuse Block, BCM, Lifting Magnet, Sun Roof Actuator And Gauge Cluster:
