ALC SEN, Door Lock Relay K135 & Multifunction Relay
ALC SEN, Door Lock Relay K135 & Multifunction Relay

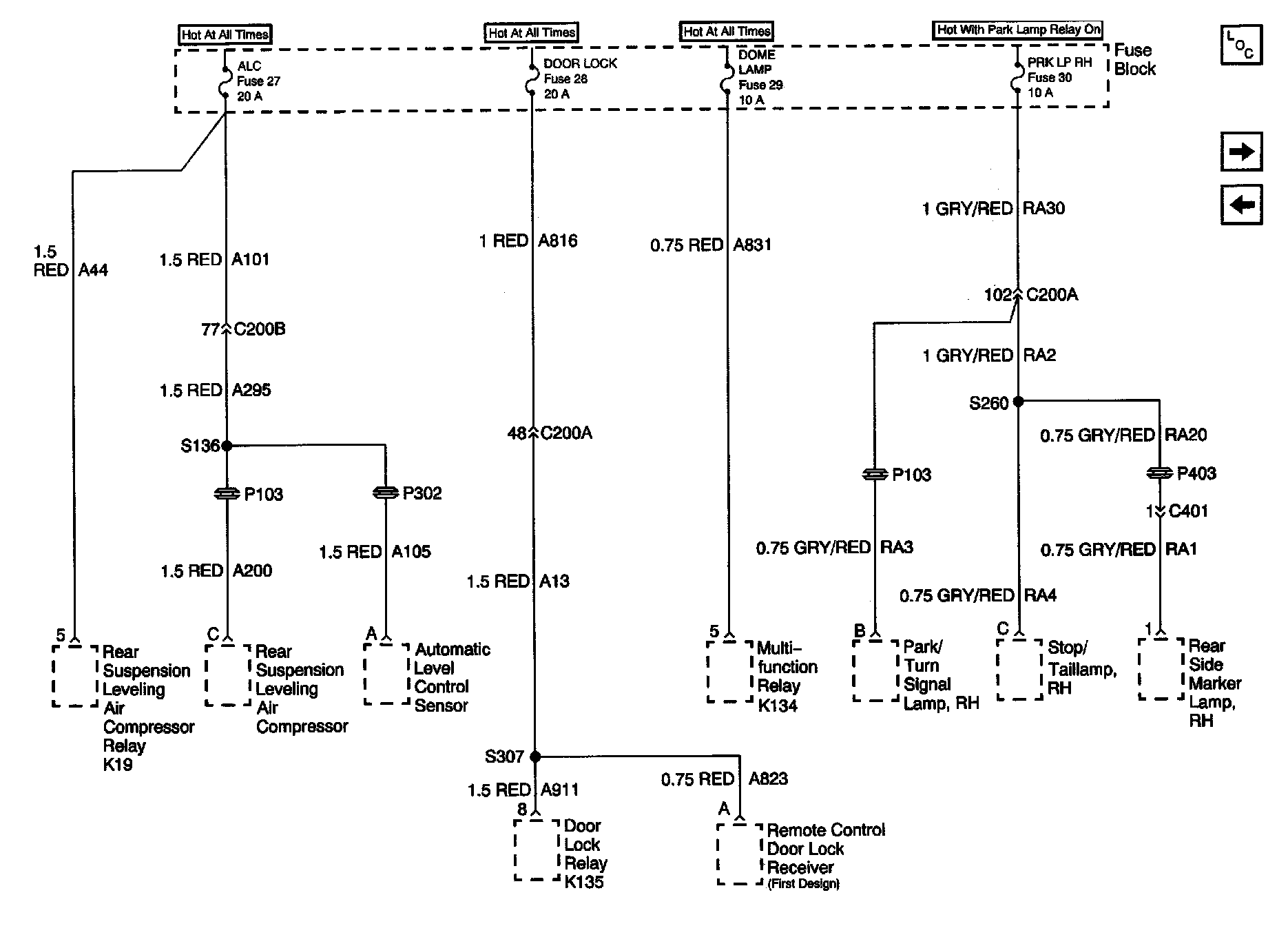

Power Distribution Schematics: Fuse Block, ALC Sensor, Door Lock Relay K135 And Multifunction Relay:
