Rear Seat Cushion Heaters, WDO Regulator Motors

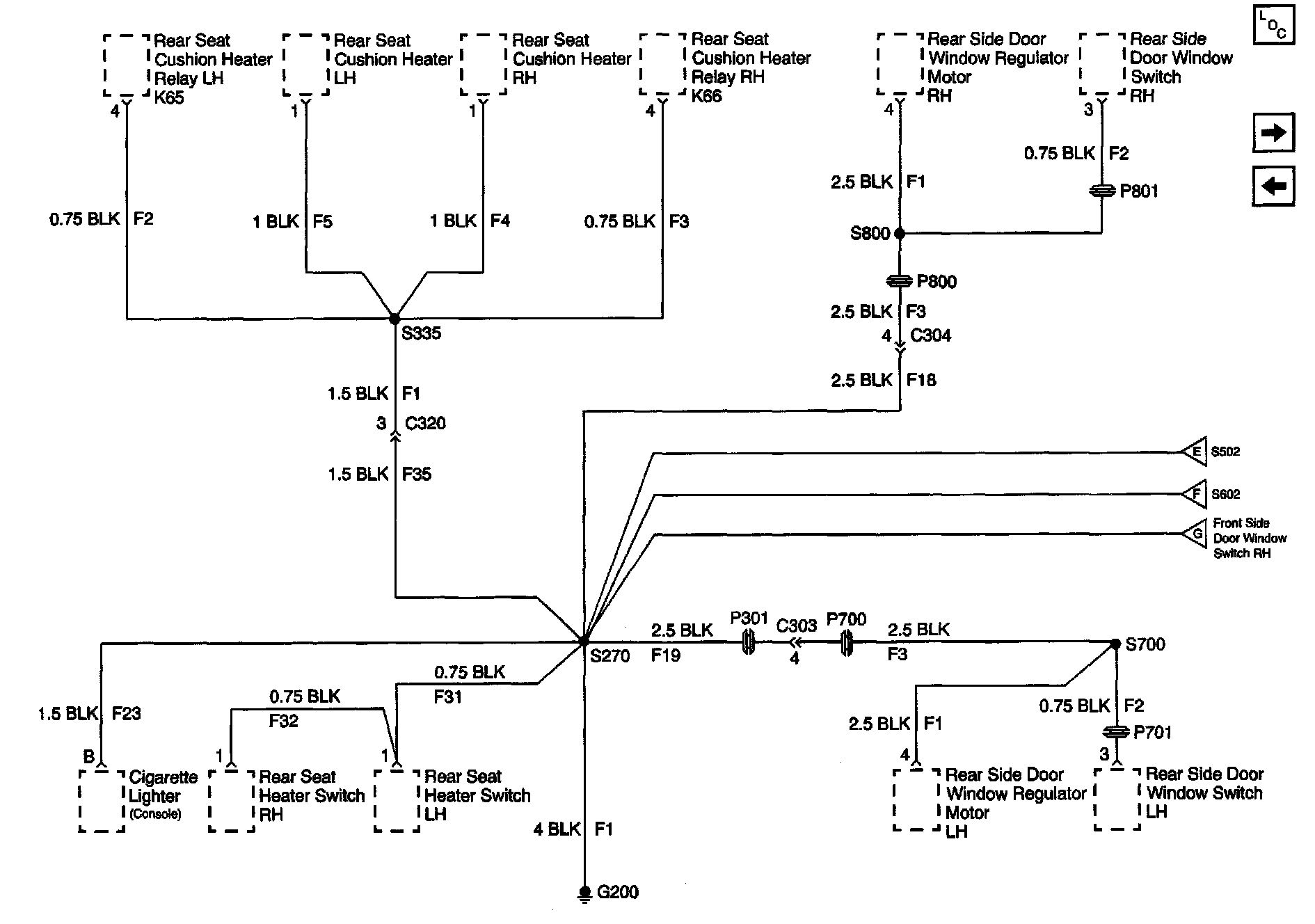

Ground Distribution Schematics: Rear Seat Cushion Heaters, Rear Heater Switches And Rear Window Regulator Motors:
