Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> 4L30-E Automatic Transmission >> On-Vehicle >> Shift Speed

Shift Speed

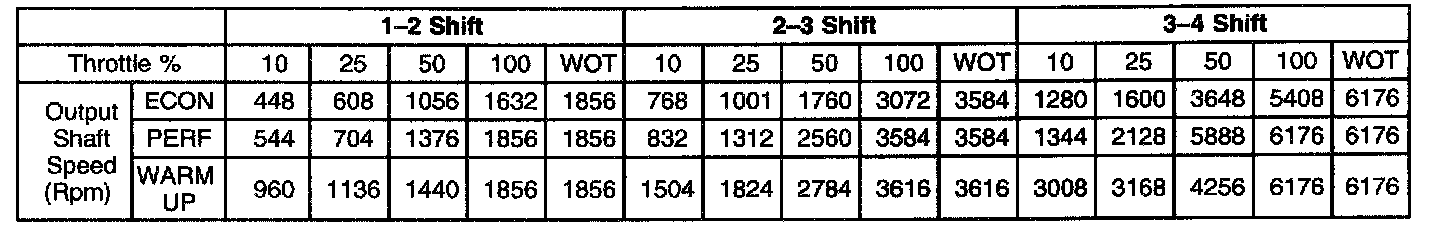

Upshift Speeds:

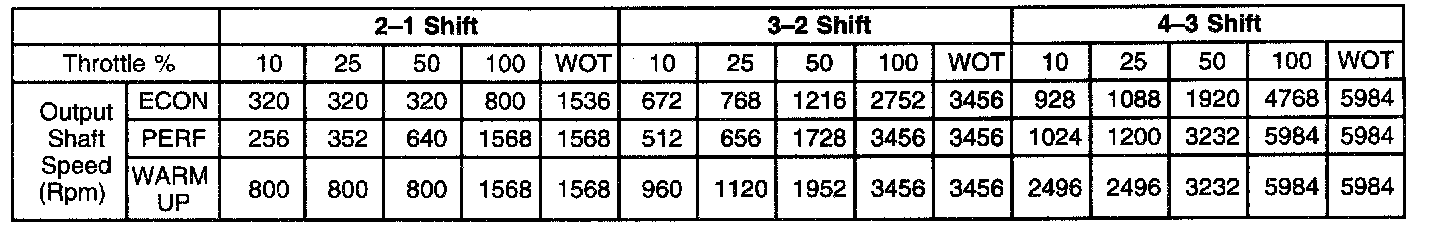

Downshift Speeds:
