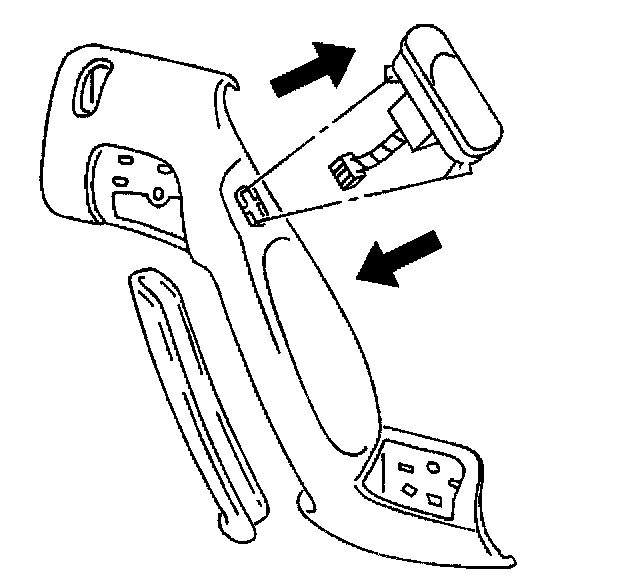

Rear Door Power Window Switch Replacement




REMOVAL PROCEDURE
1. Remove the assist handle and cover.
2. Disconnect the power window switch connector.
3. Snap out the switch.

INSTALLATION PROCEDURE
1. Snap on the switch.
2. Connect the switch connector.
3. Install the assist handle and cover.
