Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Connector Views >> Door Window Switch, LH Front

Door Window Switch, LH Front

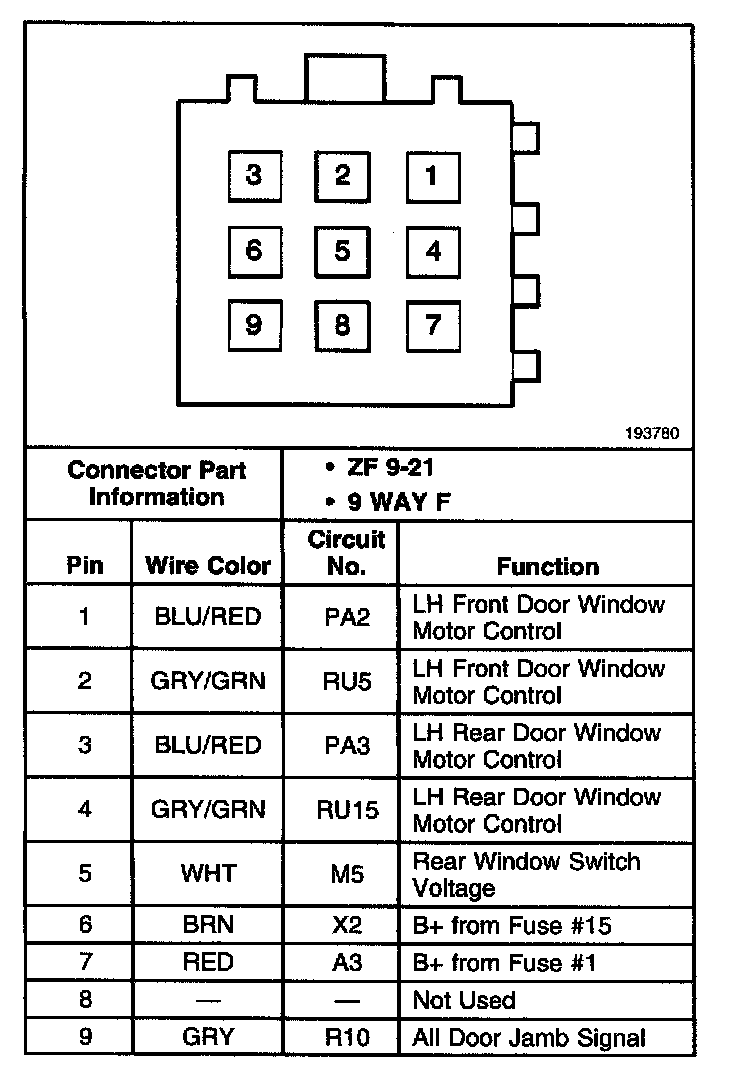

LH Front Side Door Window Switch:
