Seal Switch Replacement - Power

REMOVAL PROCEDURE
1. Remove the front seat.
2. Remove the outer finish panel from the front seat cushion.
3. Disconnect the electrical connectors from the seat adjuster control switch.
The wiring harness is routed under the front seat cushion frame and is secured by tie downs.

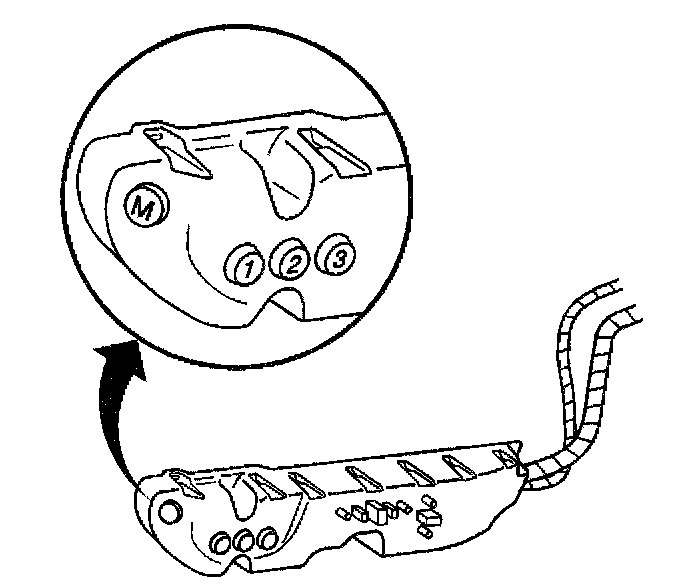

4. Remove the seat adjuster control switch.

INSTALLATION PROCEDURE
1. Install the seat adjuster control switch.
2. Connect the electrical connectors to the seat adjuster control switch.
3. The wiring harness is routed under the front seat cushion frame. Secure the wiring harness to the seat frame with tie straps in order to prevent damaging.
4. Install the outer finish panel to the front seat cushion.
5. Install the front seat.
