Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Diagrams >> Driver Seat Switch - C7 (Connector C7B)

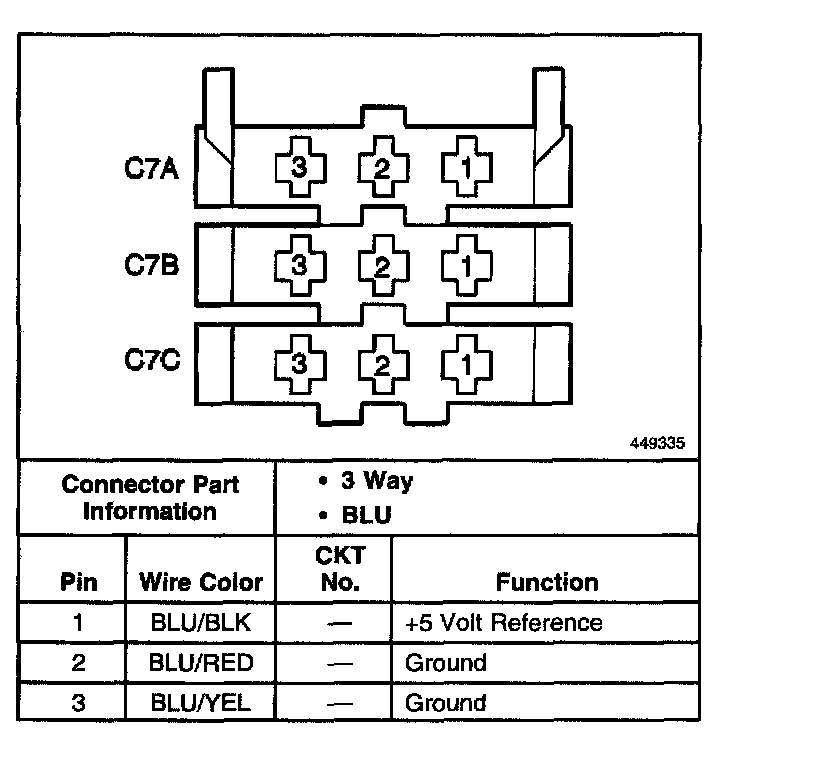

Driver Seat Switch - C7 (Connector C7B)

Driver Seat Switch - C7 (Connector C7B):
