Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Diagrams >> Door Lock Switch, LH Front

Door Lock Switch, LH Front

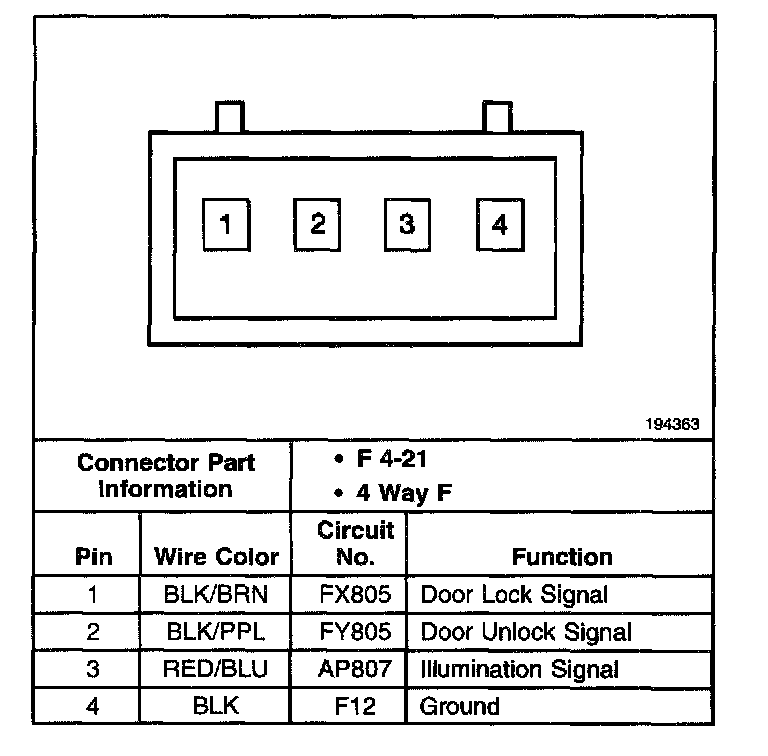

LH Front Side Door Lock Switch:

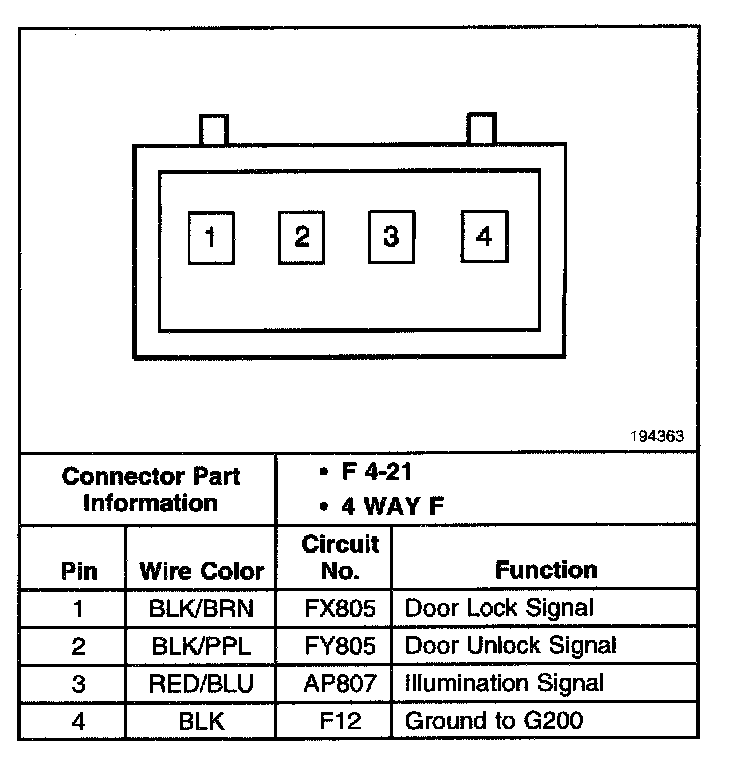

LH Front Side Door Lock Switch:

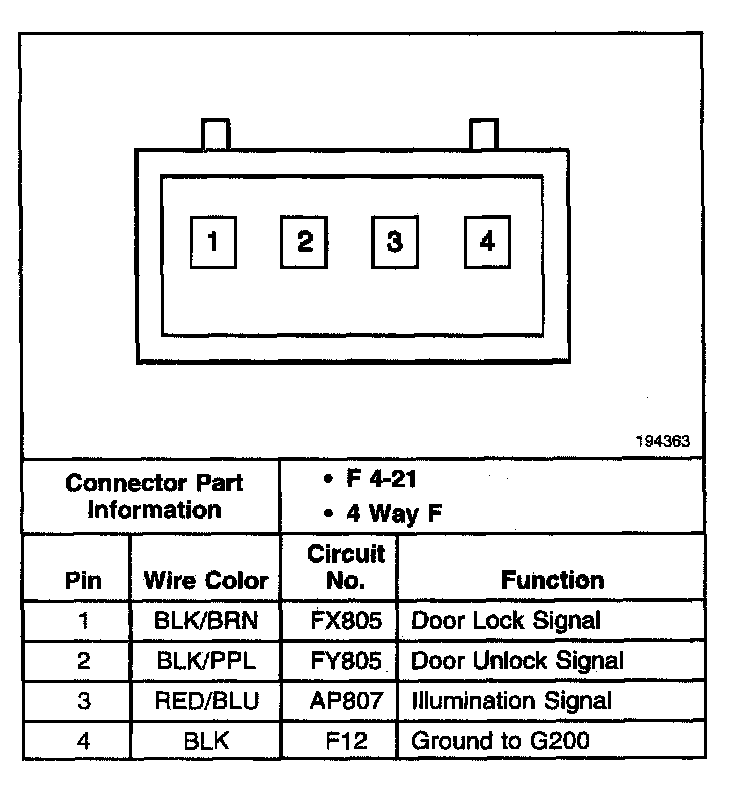

LH Front Side Door Lock Switch:
