Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Low Beam Relay >> Diagrams >> Low Beam Relay K131

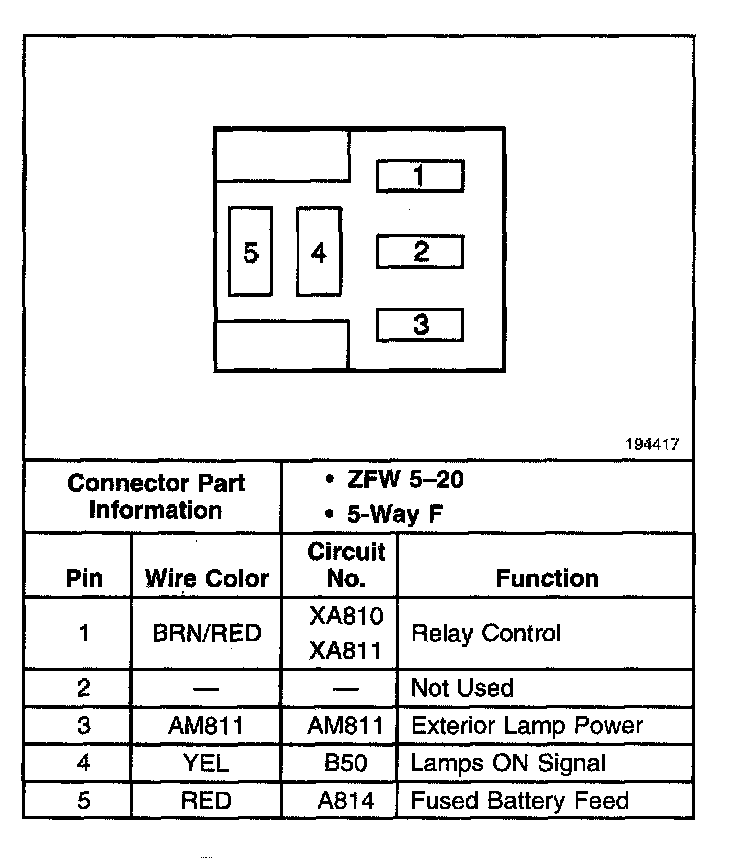

Low Beam Relay K131

Low Beam Relay K131:



Low Beam Relay K131:
