Headlamp Relay (High Beam) K73, LH

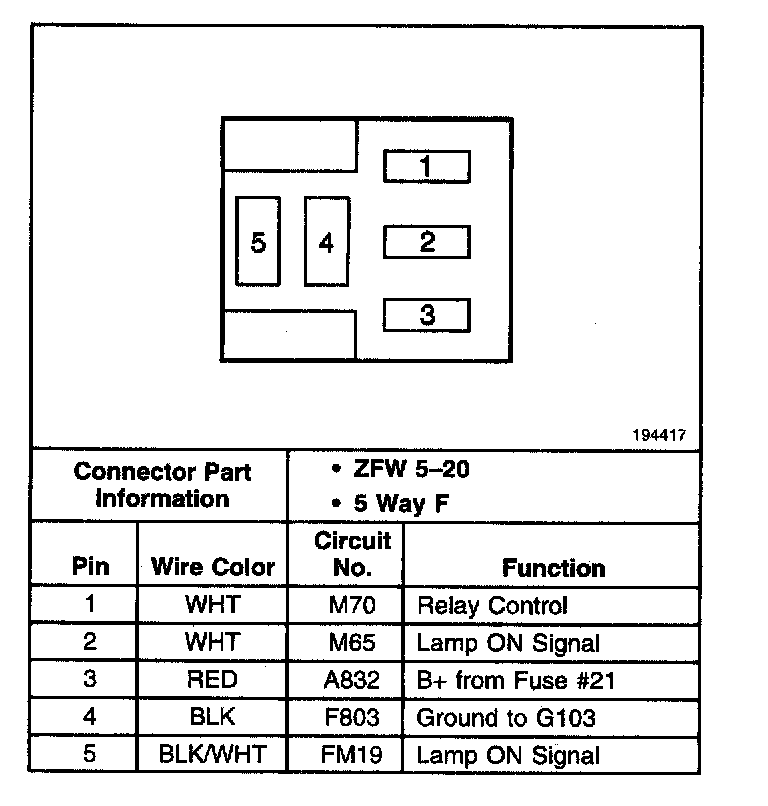

LH Headlamp Relay (High Beam) K73:



LH Headlamp Relay (High Beam) K73:
