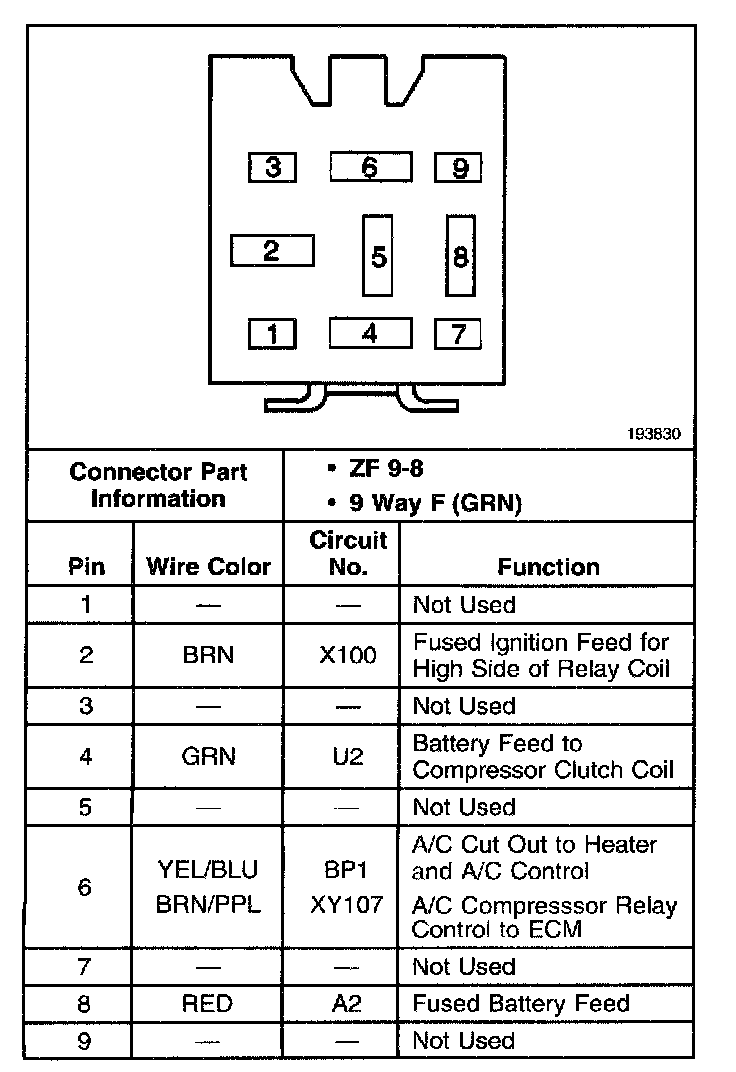

A/C Compressor Relay K60
A/C Compressor Relay K60
A/C Compressor Relay K60:
A/C Compressor Relay K60
LH front of the engine compartment, in the ECM housing
