Radiator Cooling Fan Motor Relay: Diagrams

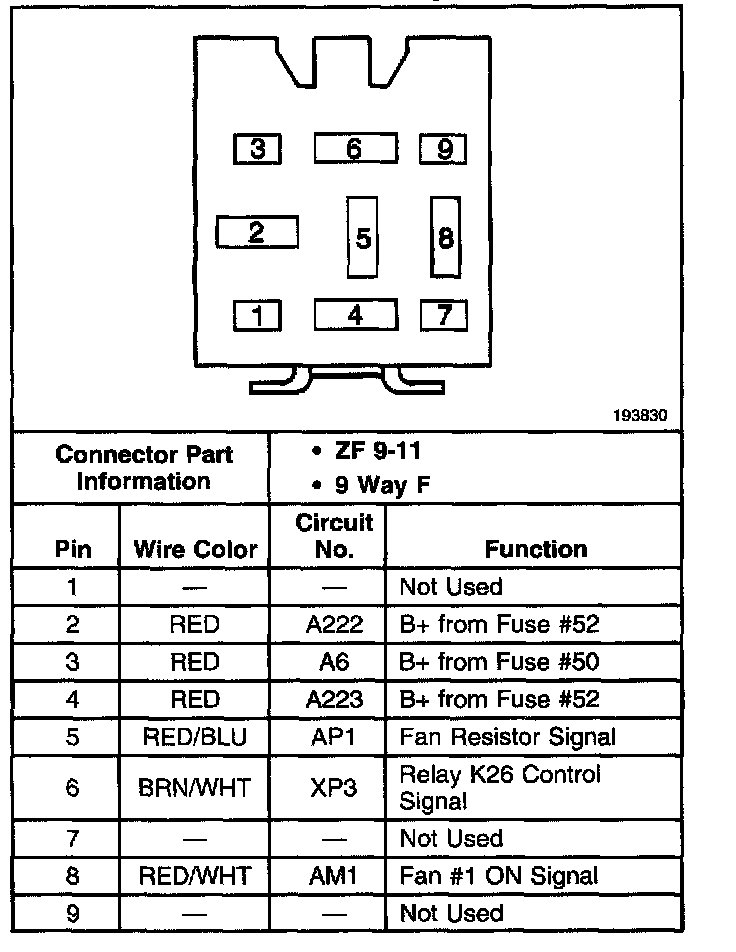

Fan Control Relay K26

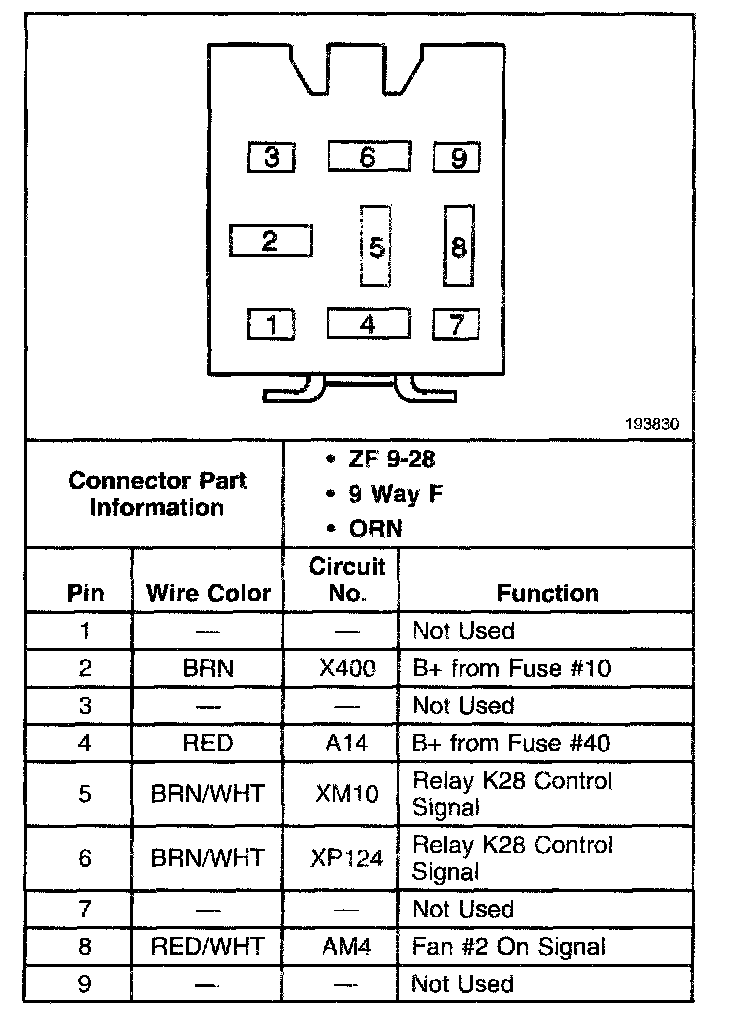

Fan Control Relay K28

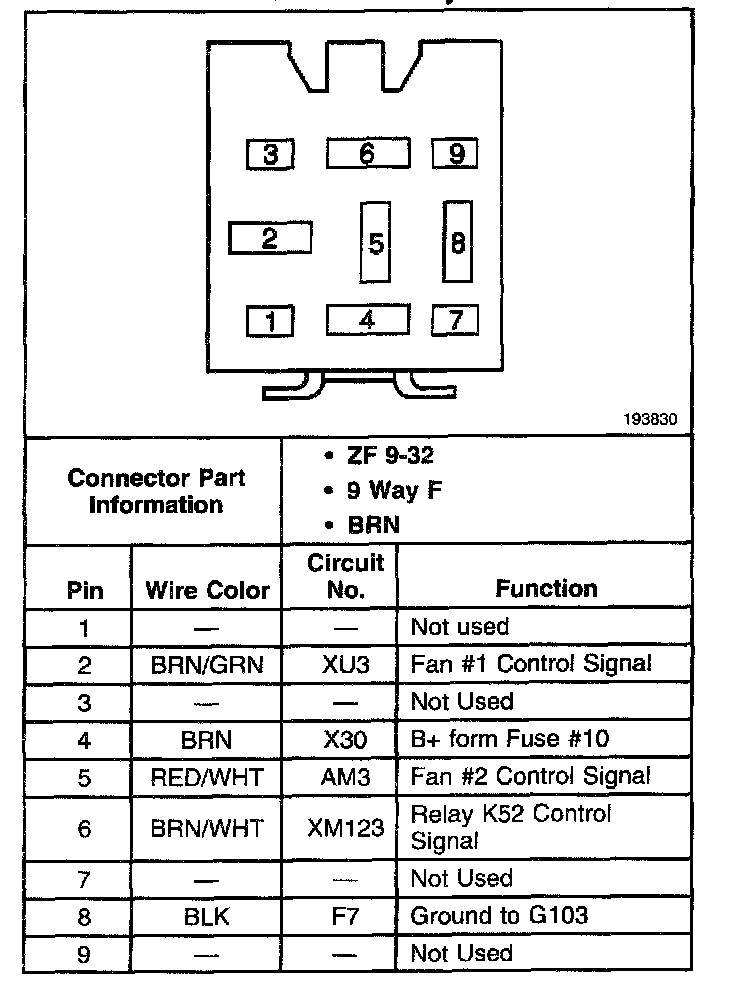

Fan Control Relay K52





Fan Control Relay K87





Fan Control Relay K87
