Shift Indicator - A/T: Service and Repair

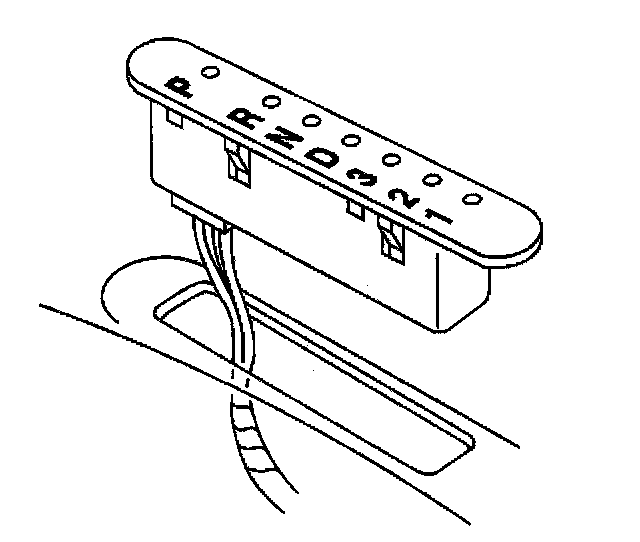

Shift Indicator Replacement - Console Mounted




REMOVAL PROCEDURE
1. Remove the gear selector boot from the console.

IMPORTANT: Do not pry the indicator from the console because damage to the console trim may occur.

2. Dislodge the indicator from the console by reaching under the console opening near the gear selector.
3. Remove the connector from the indicator.
4. Remove the indicator.

INSTALLATION PROCEDURE
1. Install the connector to indicator.
2. Install the indicator to console making sure to fully seat.
3. Install the gear selector boot to console by snapping into place.
