FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Cadillac
>>
1999
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
Cruise Control Module, EBTCM and Heater A/C Control
Cruise Control Module, EBTCM and Heater A/C Control

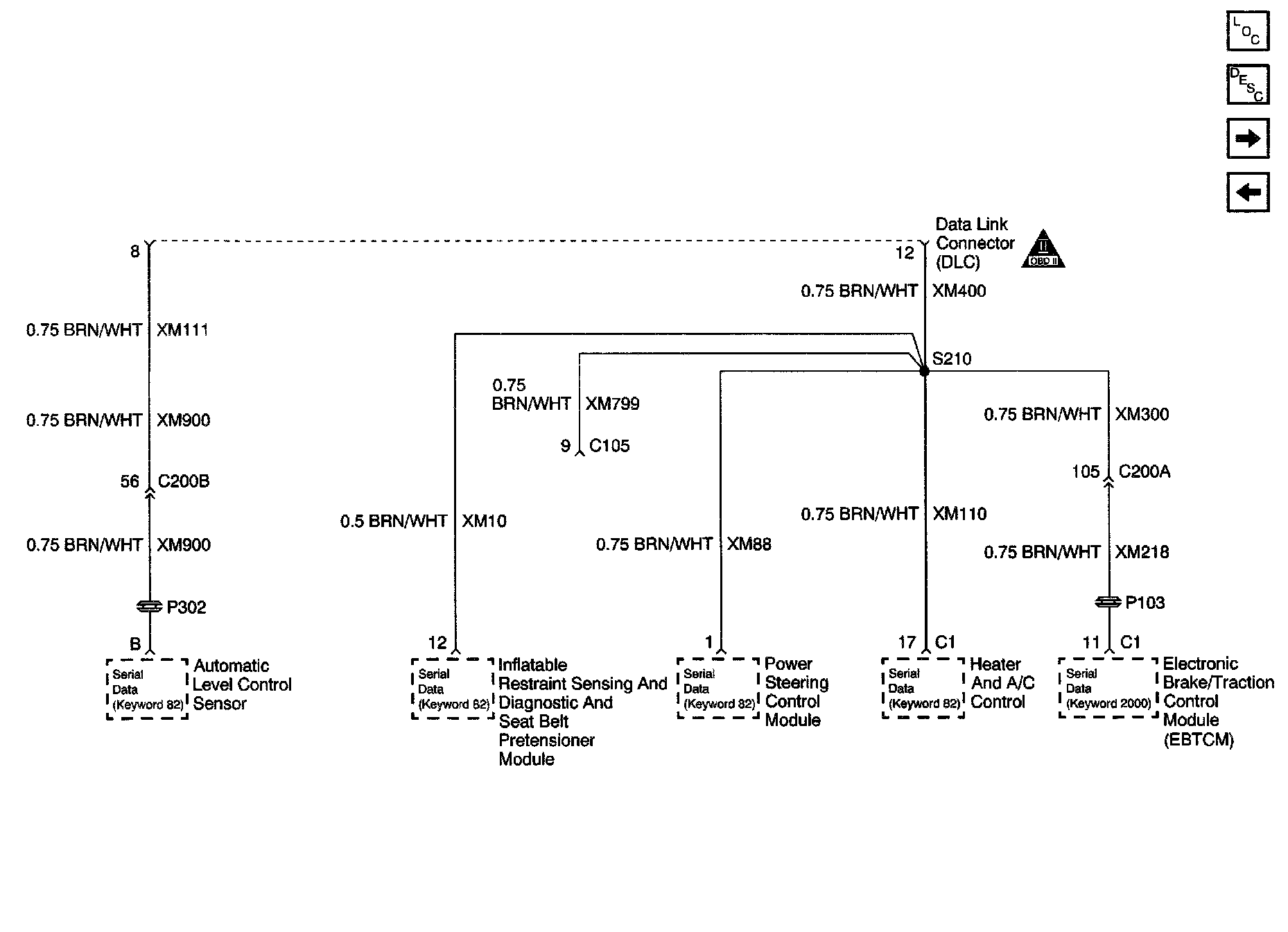

Data Link Connector (DLC) Schematics: Cruise Control Module, EBTCM And Heater A/C Control:
