WDO Regulator Motors & AUTO Transmission Switches

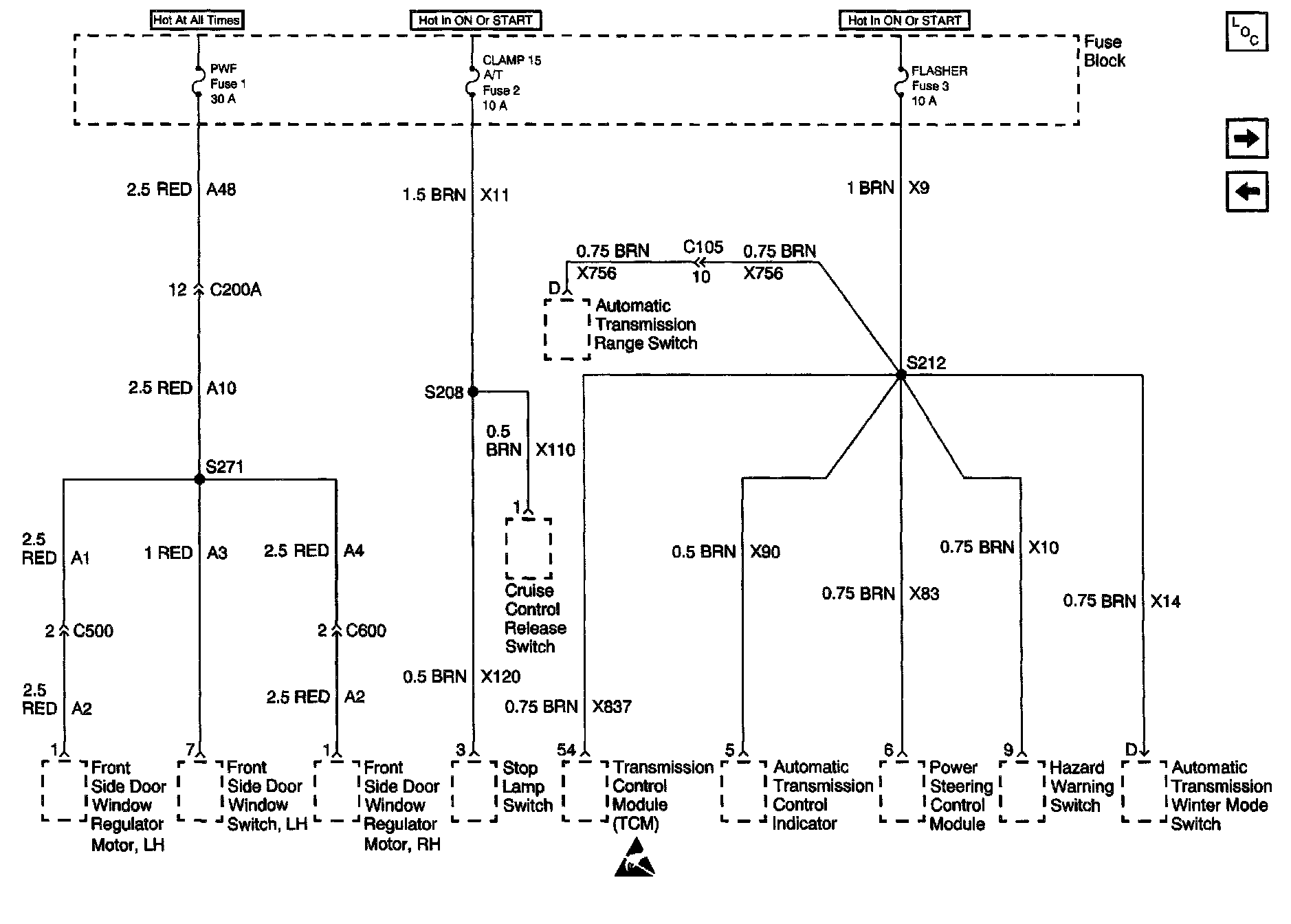

Power Distribution Schematics: Fuse Block, Window Regulator Motors And Automatic Transmission Switches:
