Battery, ECM, Ignition Coils and Inflammable Restraint SDM
Battery, ECM, Ignition Coils and Inflammable Restraint SDM

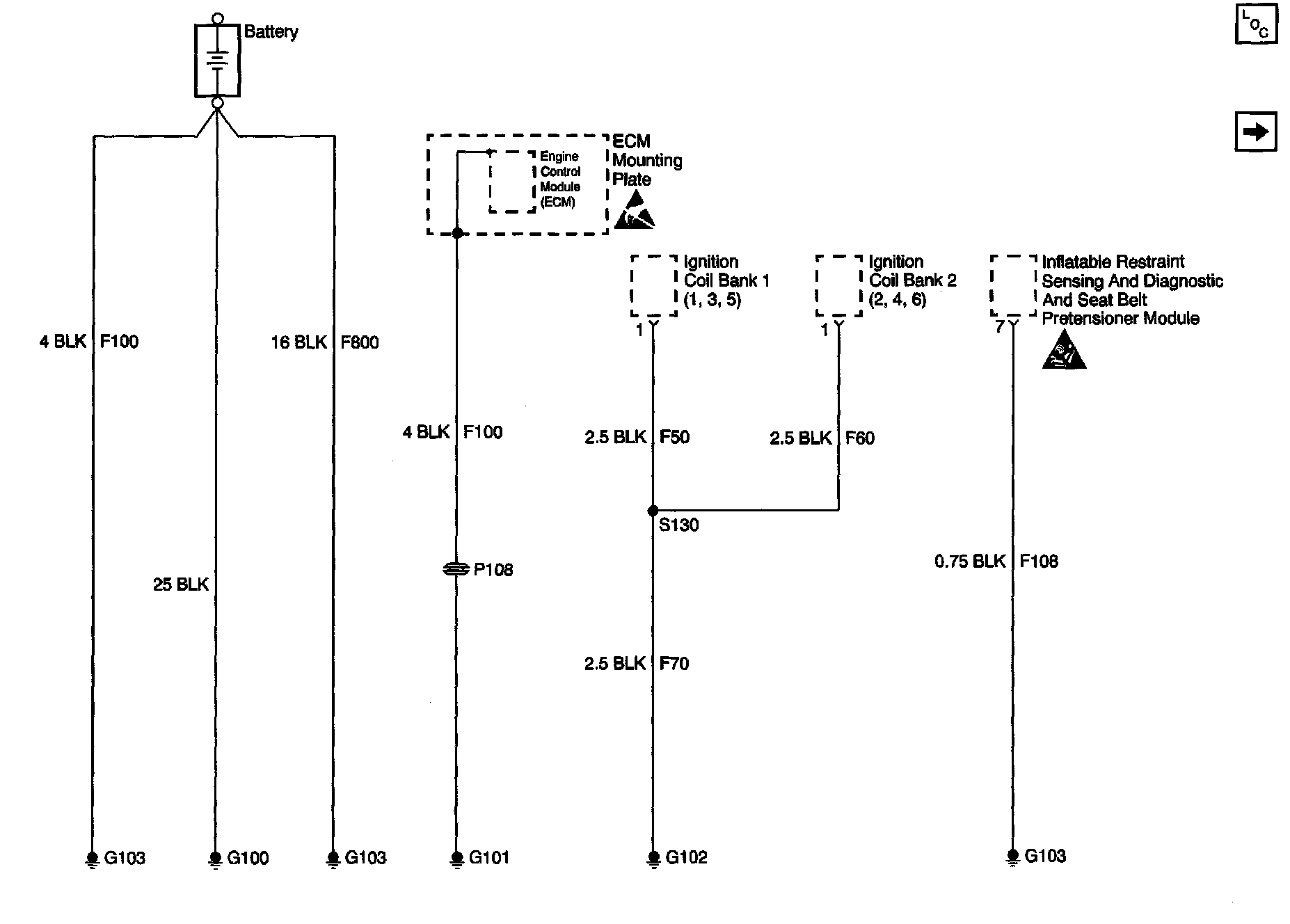

Ground Distribution Schematics: Battery, ECM, Ignition Coils And Inflammable Restraint Sensing And Diagnostic Module:
