Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Locations >> Component Locations >> Modules >> Inflatable Restraint Sensing And Diagnostic Module (SDM)

Inflatable Restraint Sensing And Diagnostic Module (SDM)

Rear Center Console:

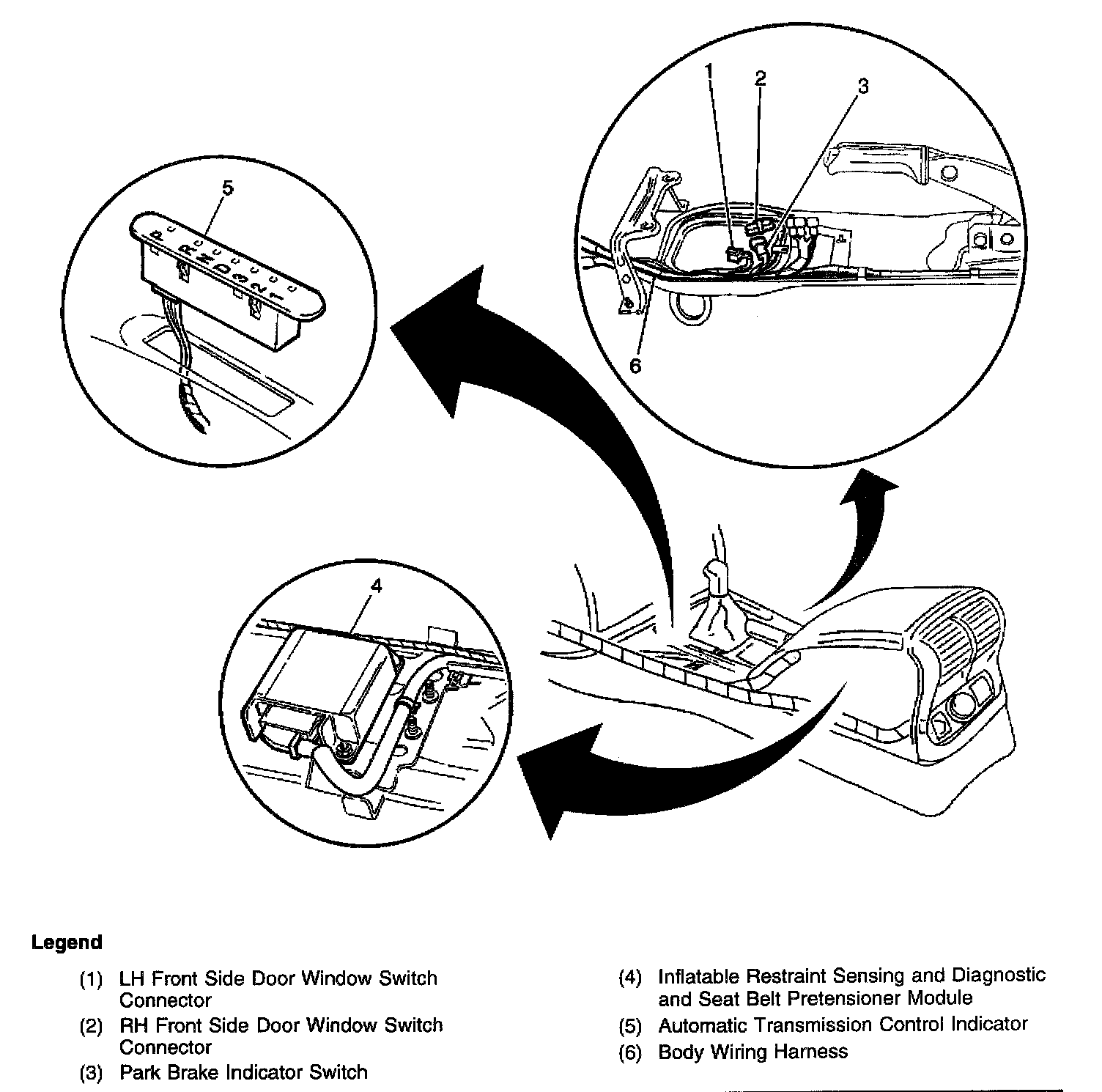

SIR Component Views:





Under the center console, near the parking brake lever
