Headlamp Capsule Replacement

REMOVAL PROCEDURE



1. Open the hood.

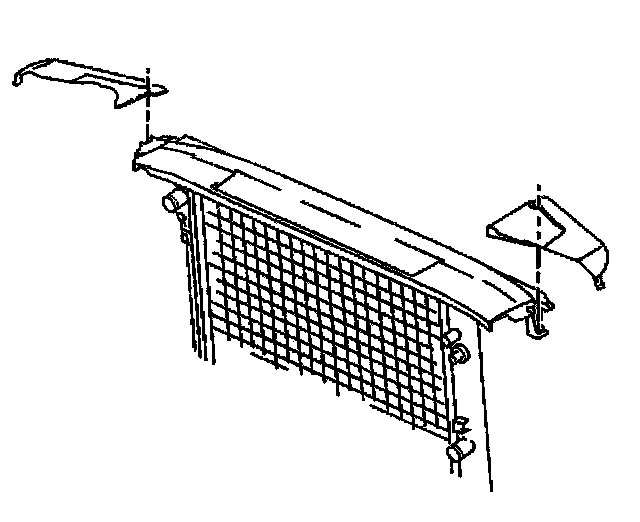

2. Unscrew the self-locking tab from the appropriate radiator cover.
3. Unclip the self-locking tab from the body.




4. Remove the front grill assembly.

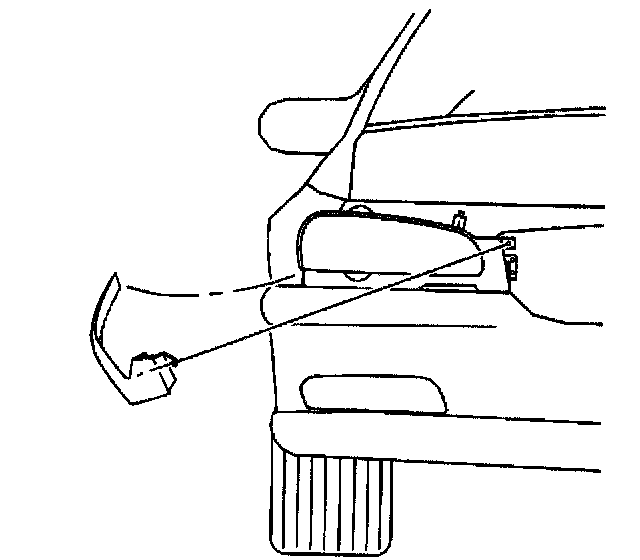

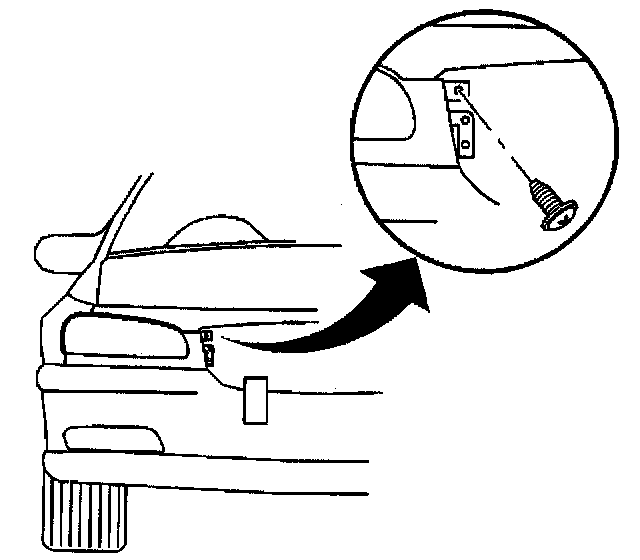

5. Remove the headlamp filler trim screw.




6. Angle out the lower headlamp filler trim to release the locking tab.
7. Remove the headlamp filler trim.

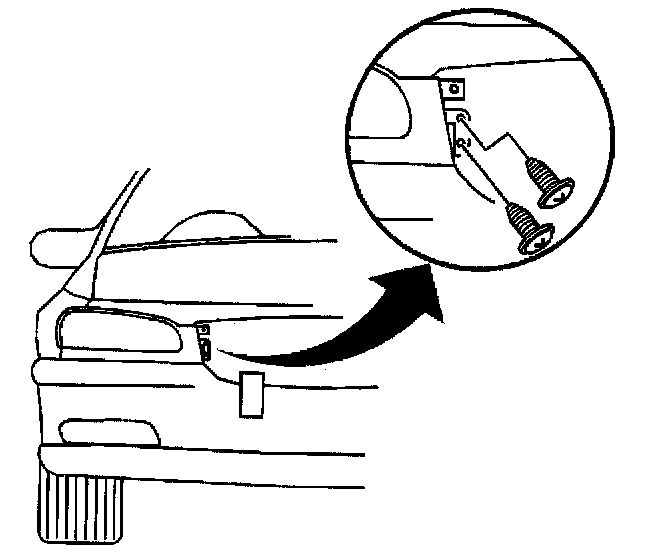

8. Remove the front grille assembly mounting bracket screws.
9. Remove the front grille assembly mounting bracket.

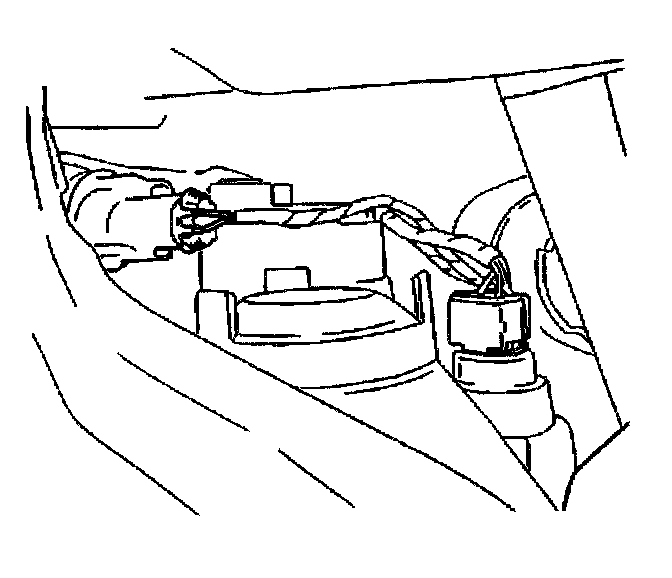

10. Remove the electrical connection from the headlamp.
11. Remove the turn signal bulb socket from the headlamp.

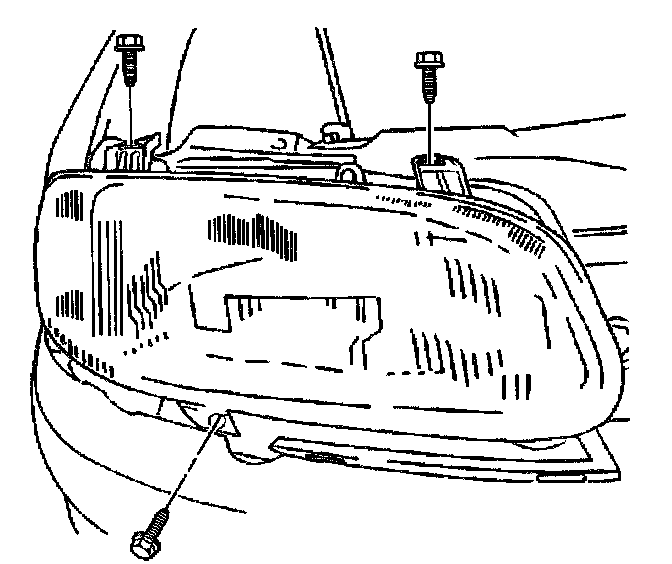

12. Remove the three headlamp screws.




13. Remove the headlamp.

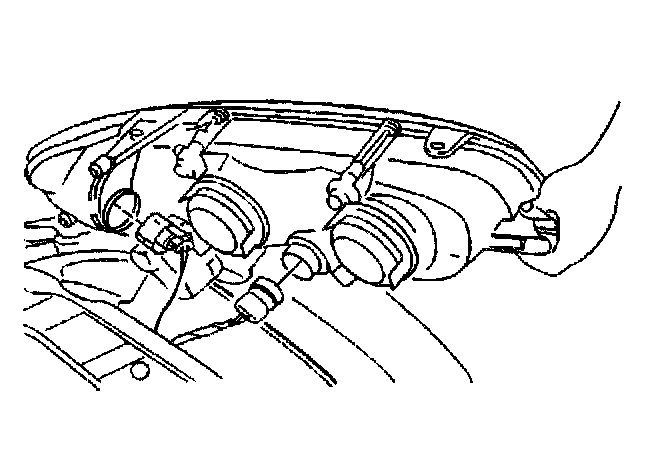

14. Transfer the high beam bulb.
15. Transfer the low beam bulb.

INSTALLATION PROCEDURE



1. Install the headlamp.





NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the three headlamp screws.

Tighten
Tighten the three headlamp screws until fully seated. Ensure not to strip the three headlamp screws.

3. Install the turn signal bulb socket to the headlamp.




4. Install the electrical connection to the headlamp.




5. Install the front grille assembly mounting bracket.
6. Install the front grille assembly mounting bracket screws.

Tighten
Tighten the front grille assembly mounting bracket screws until fully seated. Ensure no to strip the front grille assembly mounting bracket screws. Ensure not to strip the plastic inserts.




7. Angle in the locking tab to install the headlamp filler trim.




8. Install the headlamp tiller trim screw.

Tighten
Tighten the headlamp filler trim screw until fully seated. Ensure not to strip the headlamp filler trim screw. Ensure not to strip the plastic insert.

9. Install the front grille assembly.




10. Seat the tab to the body of the appropriate radiator cover.
11. Secure the radiator cover by turning the self-locking tab.
12. Close the hood.
