Headlamp Bezel Replacement

REMOVAL PROCEDURE

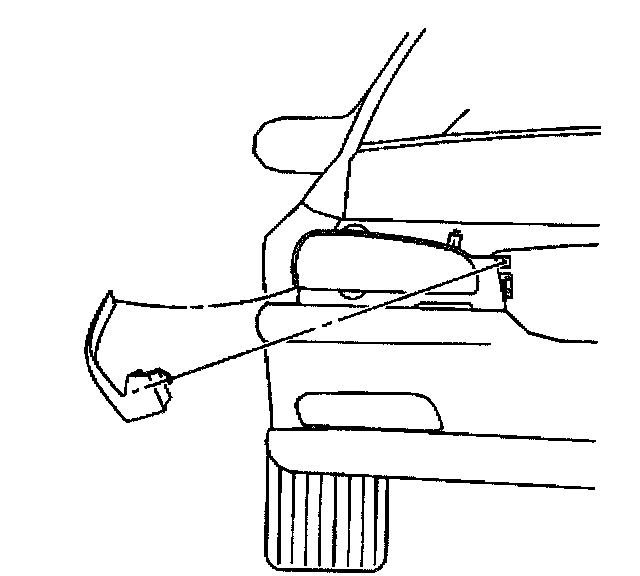

1. Remove the grille.
2. Remove the screw located in the upper corner of each headlamp lower trim.




3. Unhook the edge or the headlamp lower trim from the fender.
4. Remove the headlamp lower trim.

INSTALLATION PROCEDURE



1. Hook the headlamp lower trim to the tender to install.
2. Check that the headlamp lower trim is aligned with the tender.





NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the headlamp lower trim screw.

Tighten
Tighten the headlamp lower trim screw until fully seated. DO NOT strip the headlamp lower trim screw.

4. Install the grille.
