Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Interior Lights Schematics >> BCM, Multifunction Relay K134 and Front Side Door Jamb Switch

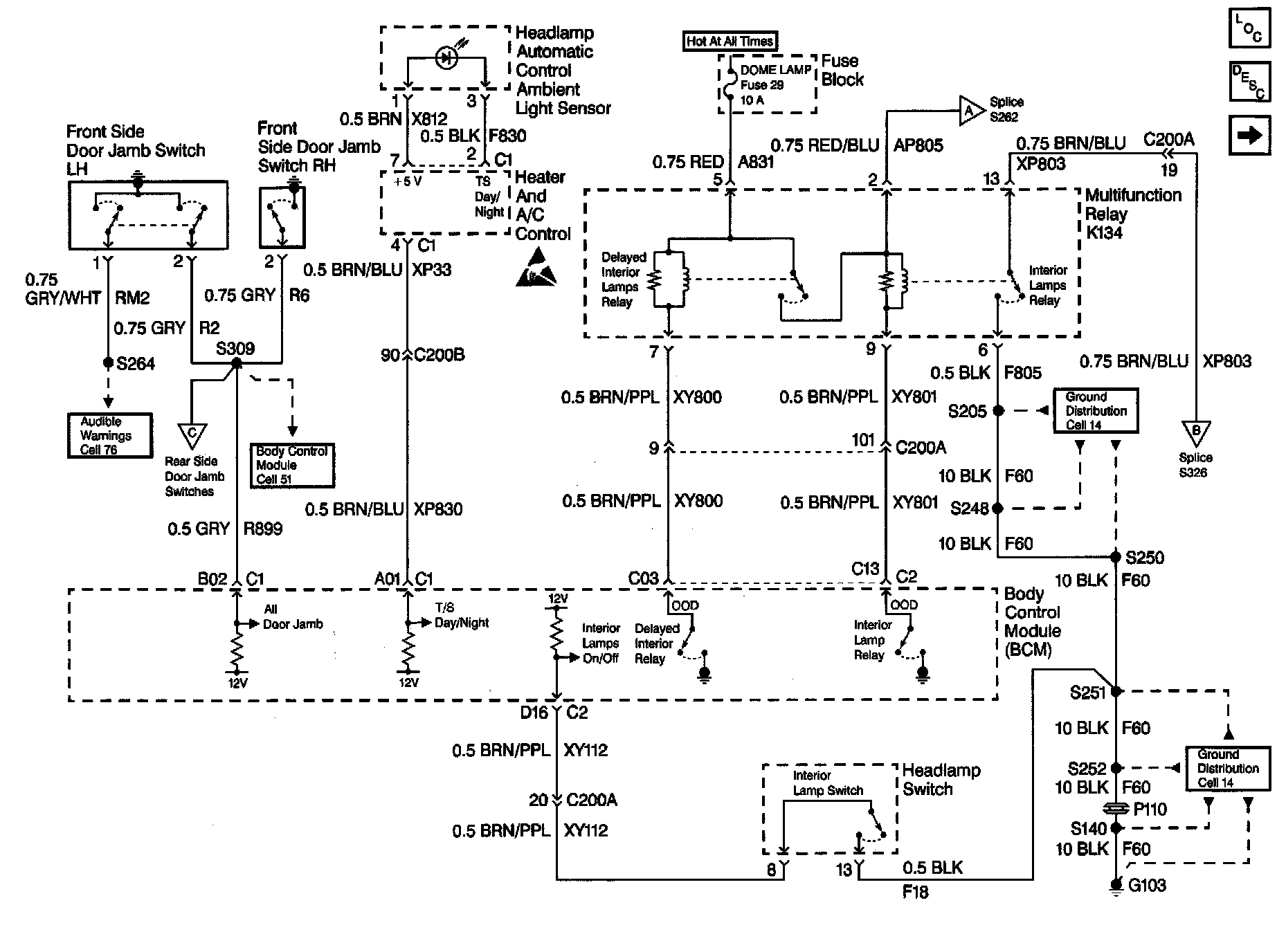

BCM, Multifunction Relay K134 and Front Side Door Jamb Switch

Interior Lights Schematics: BCM, Multifunction Relay K134 And Front Side Door Jamb Switch:
