Instrument Panel Cluster (IPC) - Lens Replacement

REMOVAL PROCEDURE



1. Remove the instrument cluster.

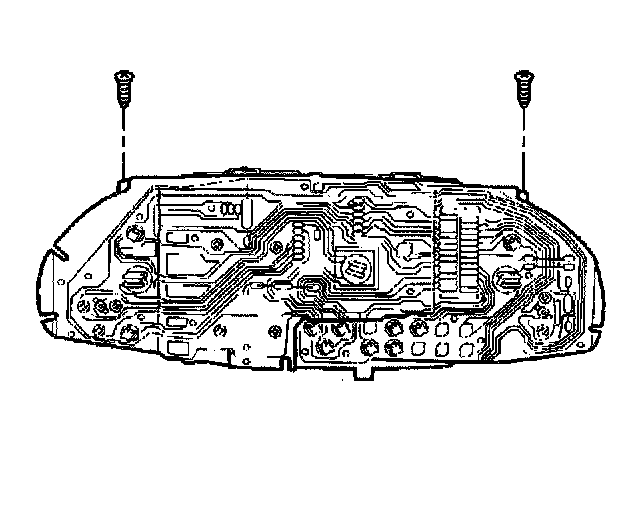

2. Remove the screws from the voltage/oil pressure gauge module.

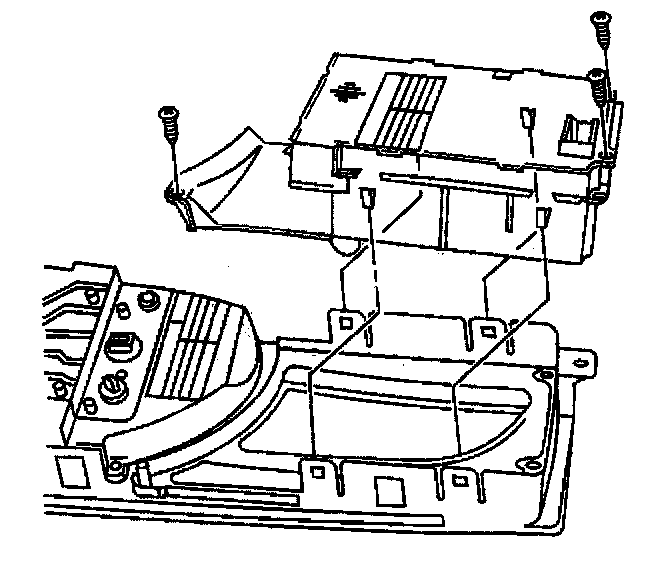

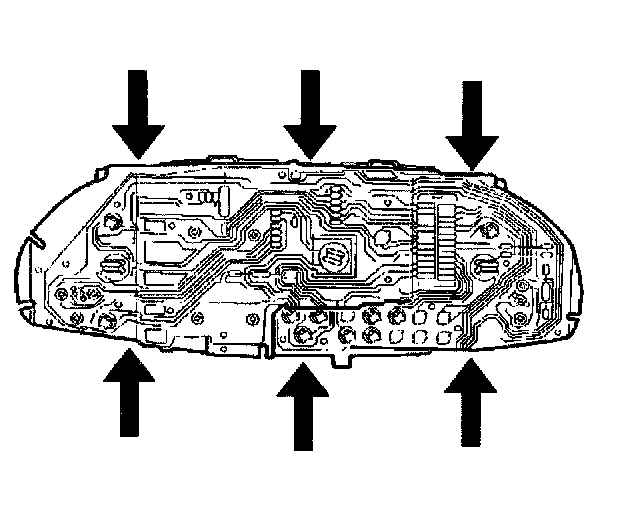

3. Remove the voltage/oil pressure gauge module from the cluster lens by pulling back the locking tabs and lifting.




4. Remove the screws from the speedometer/tachometer gauge module.




5. Remove the speedometer/tachometer gauge module from the cluster lens by pulling back the locking tabs and lifting.

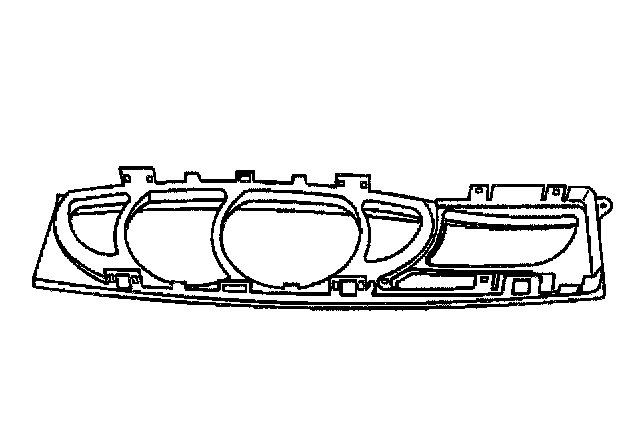

6. Replace the lens.

INSTALLATION PROCEDURE




IMPORTANT: Snap the locking tabs firmly into position on the module.

1. Install the speedometer/tachometer gauge module to the cluster lens.





NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws to the speedometer/tachometer gauge module.

Tighten
Tighten the screws until fully seated but not stripped.





IMPORTANT: Snap the locking tabs firmly into position on the module.

3. Install the voltage/oil pressure gauge module to the cluster lens.
4. Install the screws to the voltage/oil pressure gauge module.

Tighten
Tighten the screws until fully seated but not stripped.

5. Install the instrument cluster.
