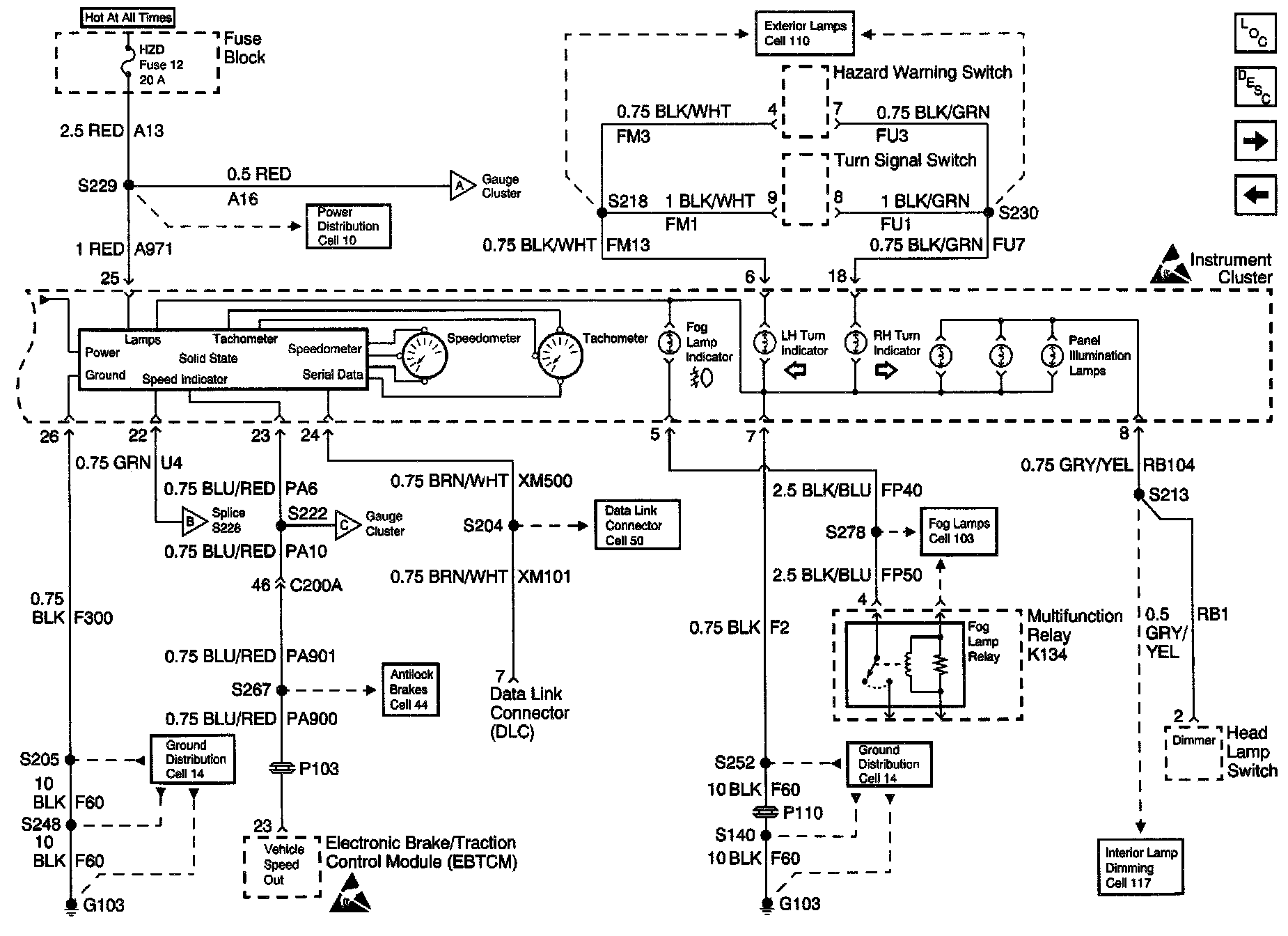

Instrument Cluster Speedometer And Tachometer

Instrument Cluster - Analog Schematics: Instrument Cluster Speedometer And Tachometer:
