Gauge Cluster Oil Pressure And Generator Gauge

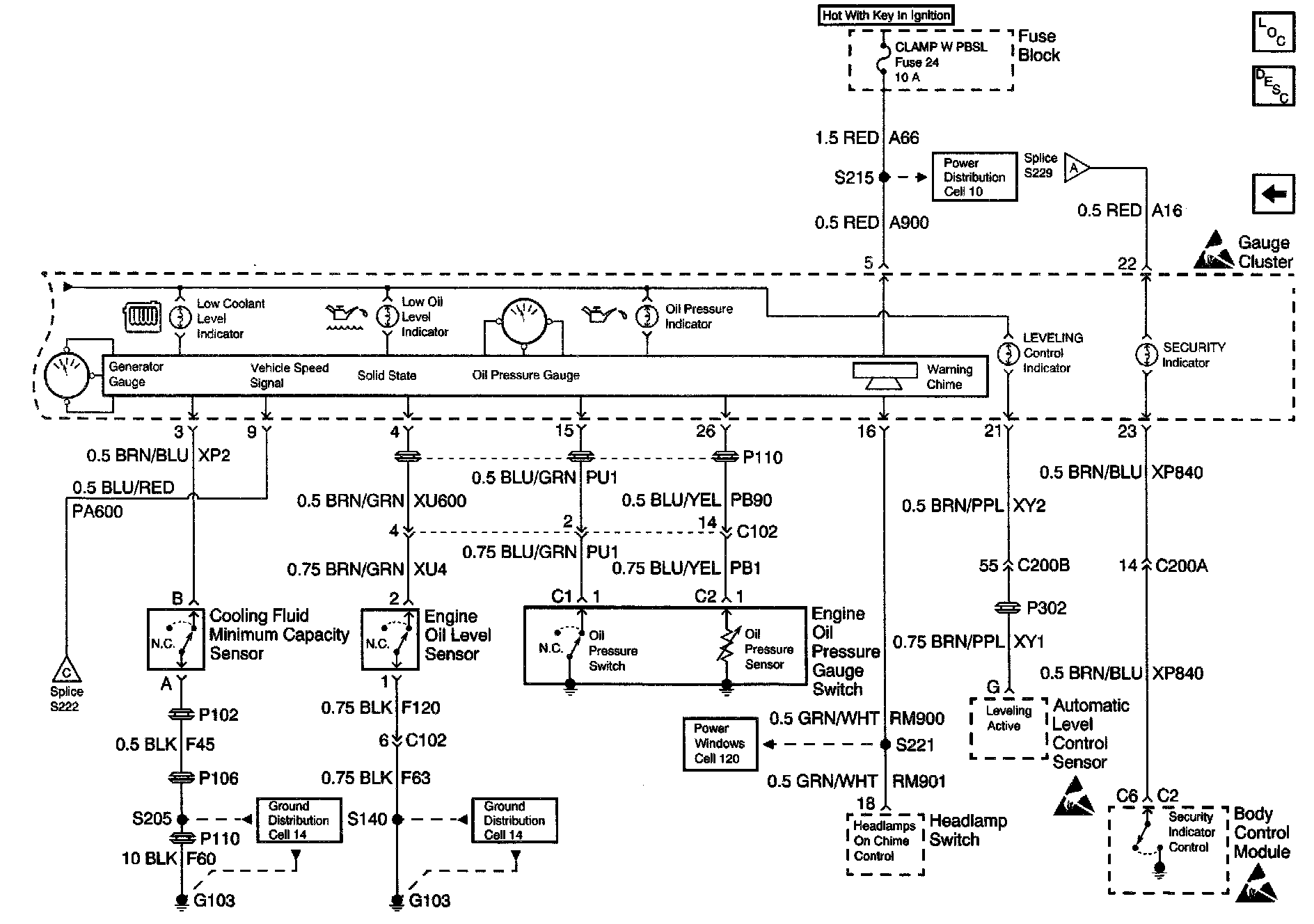

Instrument Cluster - Analog Schematics: Gauge Cluster Oil Pressure And Generator Gauge:
