System Diagnosis - Automatic - TXV

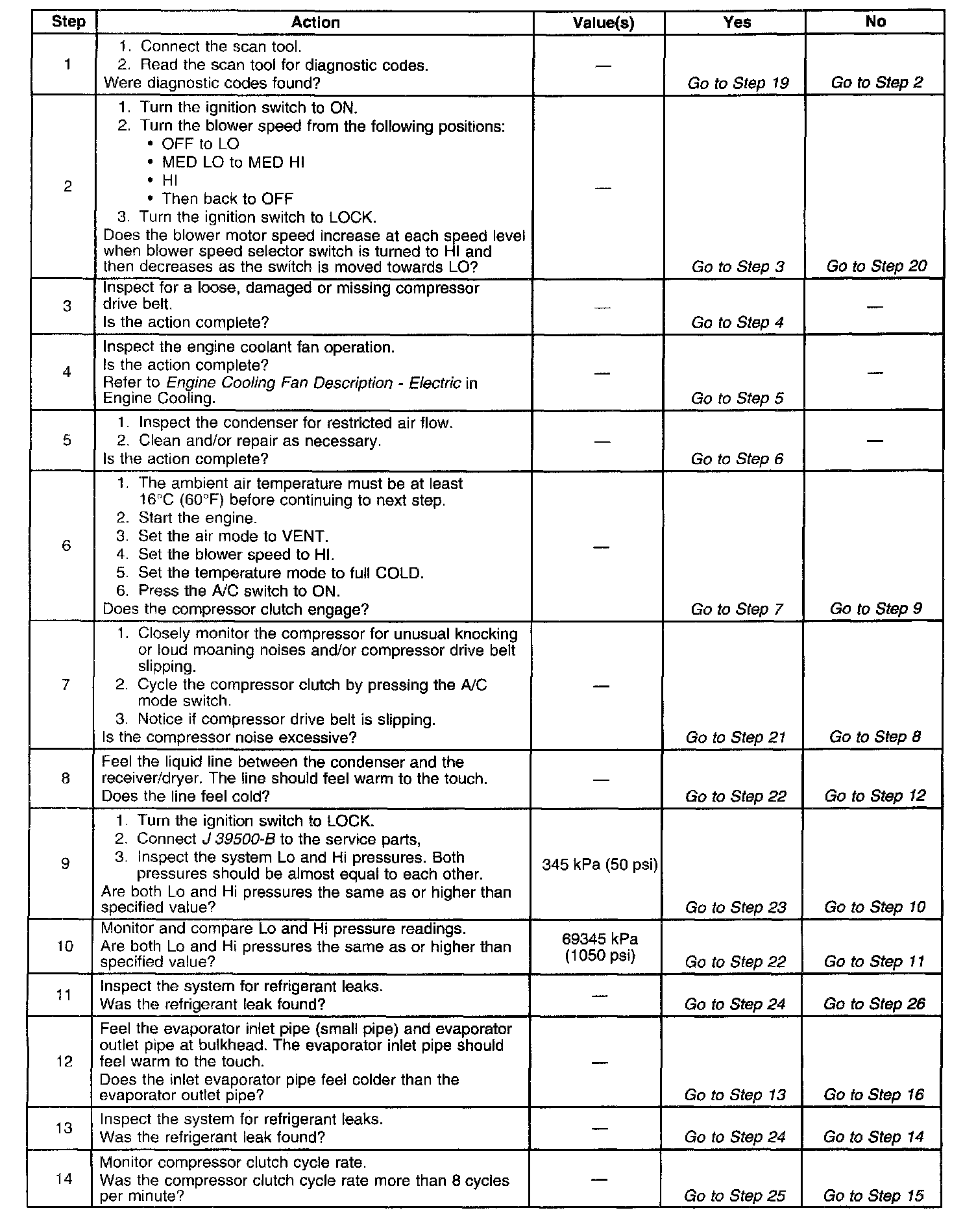

TXV A/C System Diagnosis (Part 1 Of 2):

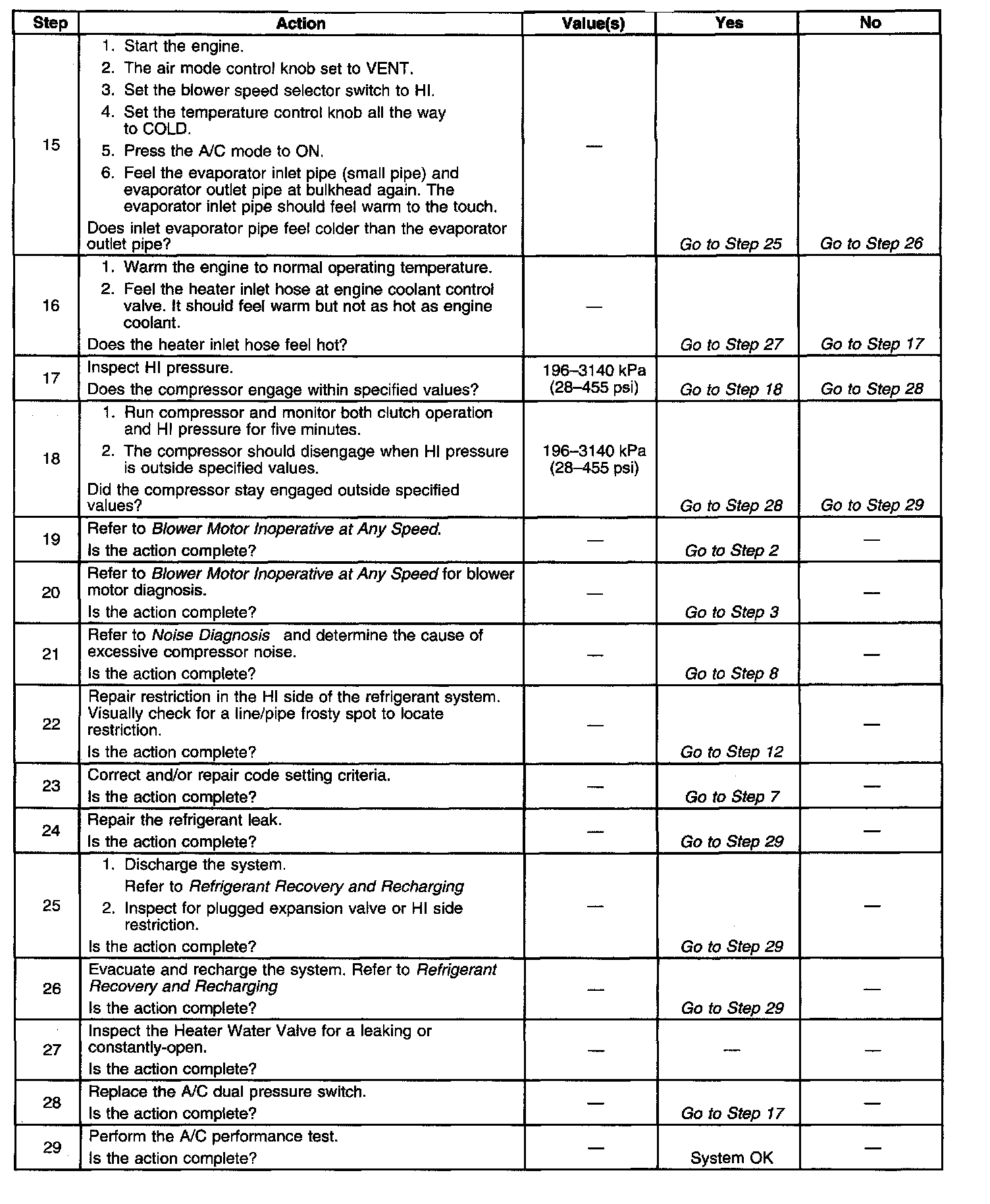

TXV A/C System Diagnosis (Part 2 Of 2):
