Component Tests and General Diagnostics

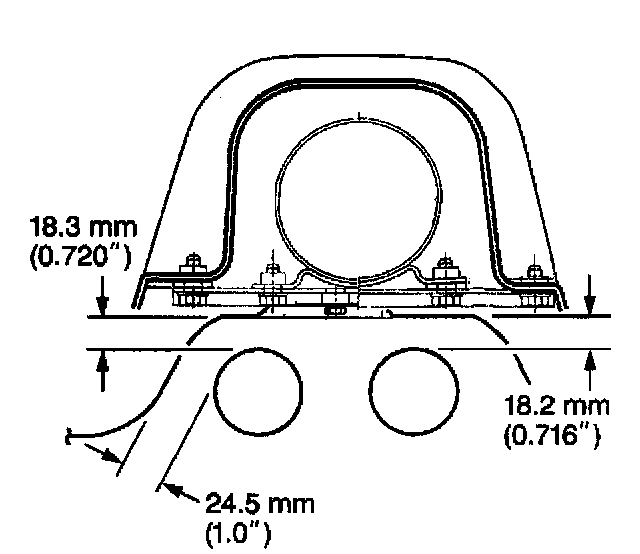

Exhaust Pipe Clearances





Exhaust pipe clearances are measured at the points and with the tolerances shown.

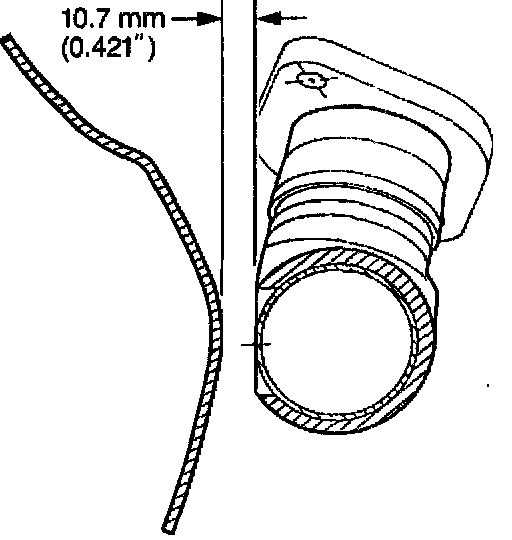

Exhaust Resonator Clearances





Exhaust resonator clearances are measured at the points and with the tolerances shown.

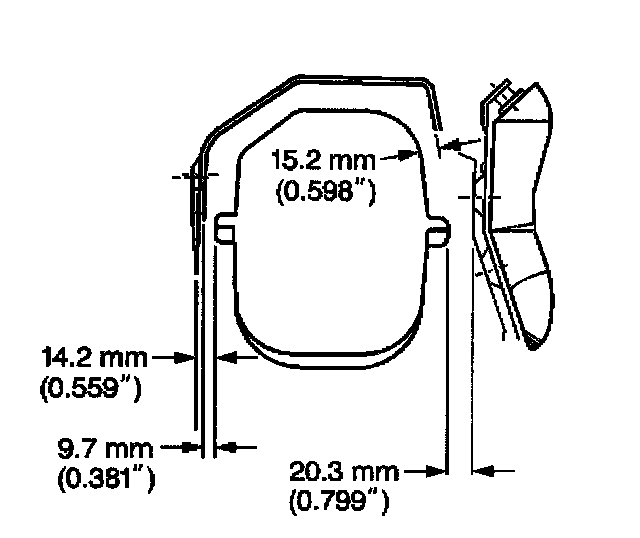

Catalytic Converter Clearances





Catalytic converter clearances are measured at the points and with the tolerances shown.

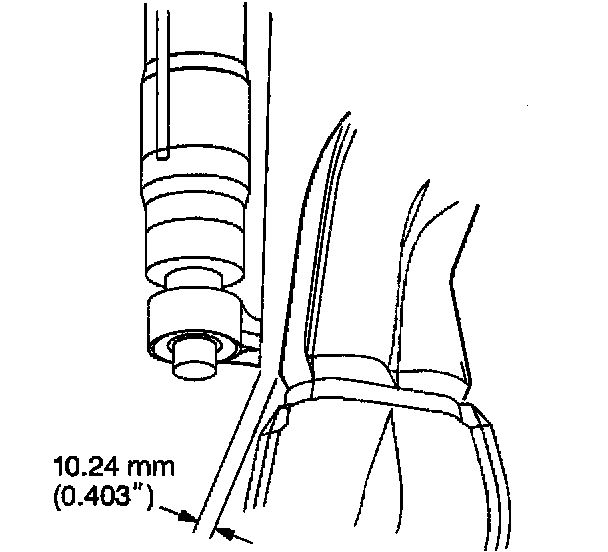

Catalytic Converter to Pitman Arm Clearance





The catalytic converter to the pitman arm clearance is measured at the point and the tolerance shown
