Exhaust Heat Shield Replacement (Resonator)

Removal Procedure
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the rear exhaust section. Refer to Resonator Replacement.

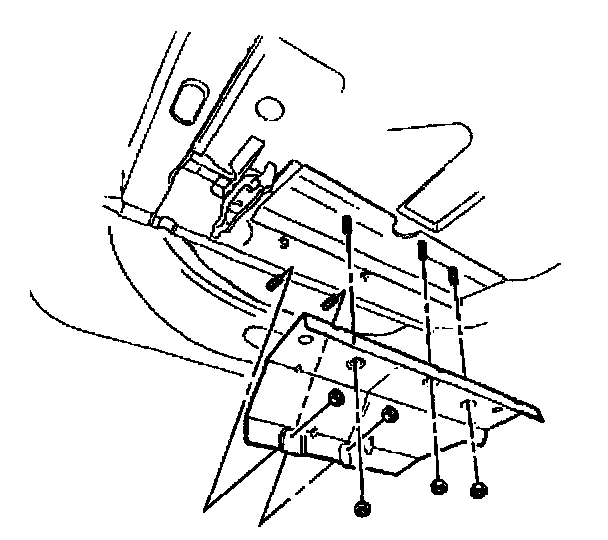

3. Remove the heat shield nuts (1) from the heat shield (2).
4. Remove the heat shield.


Installation Procedure
1. Install the heat shield.

Notice: Refer to Fastener Notice in Service Precautions.





2. Install the heat shield nuts (1) to the heat shield (2).
^ Tighten the heat shield nuts (1) to 2 Nm (18 inch lbs.).
3. Install the rear exhaust section.
4. Lower the vehicle.
