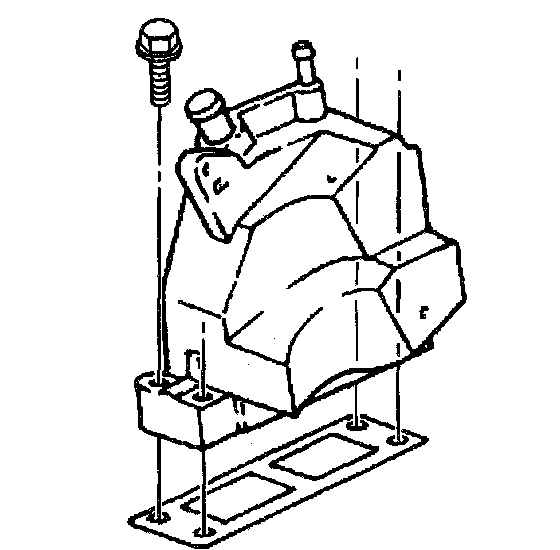

64. Crankcase Vent Housing Installation

1. Apply sealing compound, GM P/N 1052942 or equivalent, to the sealing surfaces.
2. Install the crankcase vent housing and install the gasket to the engine block.





3. Install the crankcase vent housing bolts.
^ Tighten the crankcase vent housing bolts to 8 Nm (71 inch lbs.).
4. Install the hoses to the crankcase vent housing.
