Power Windows - RH Rear Side Door Window Switch & Motor
Power Windows - RH Rear Side Door Window Switch & Motor

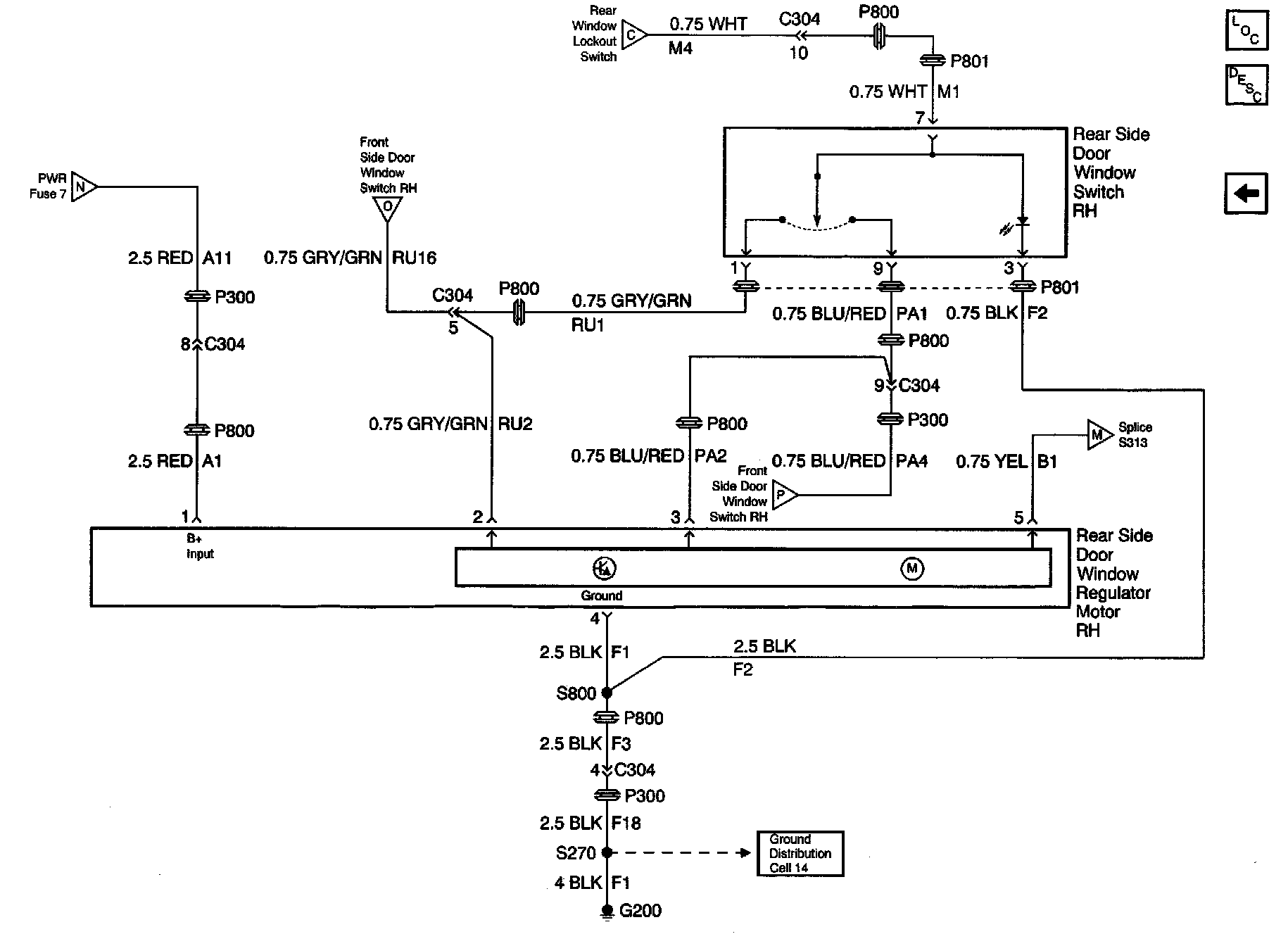

Power Window Schematics: RH Rear Side Door Window Switch & Window Regulator Motor:
