Power Windows - RH Front Side Door Window Switch & Regulator Motor
Power Windows - RH Front Side Door Window Switch & Regulator Motor

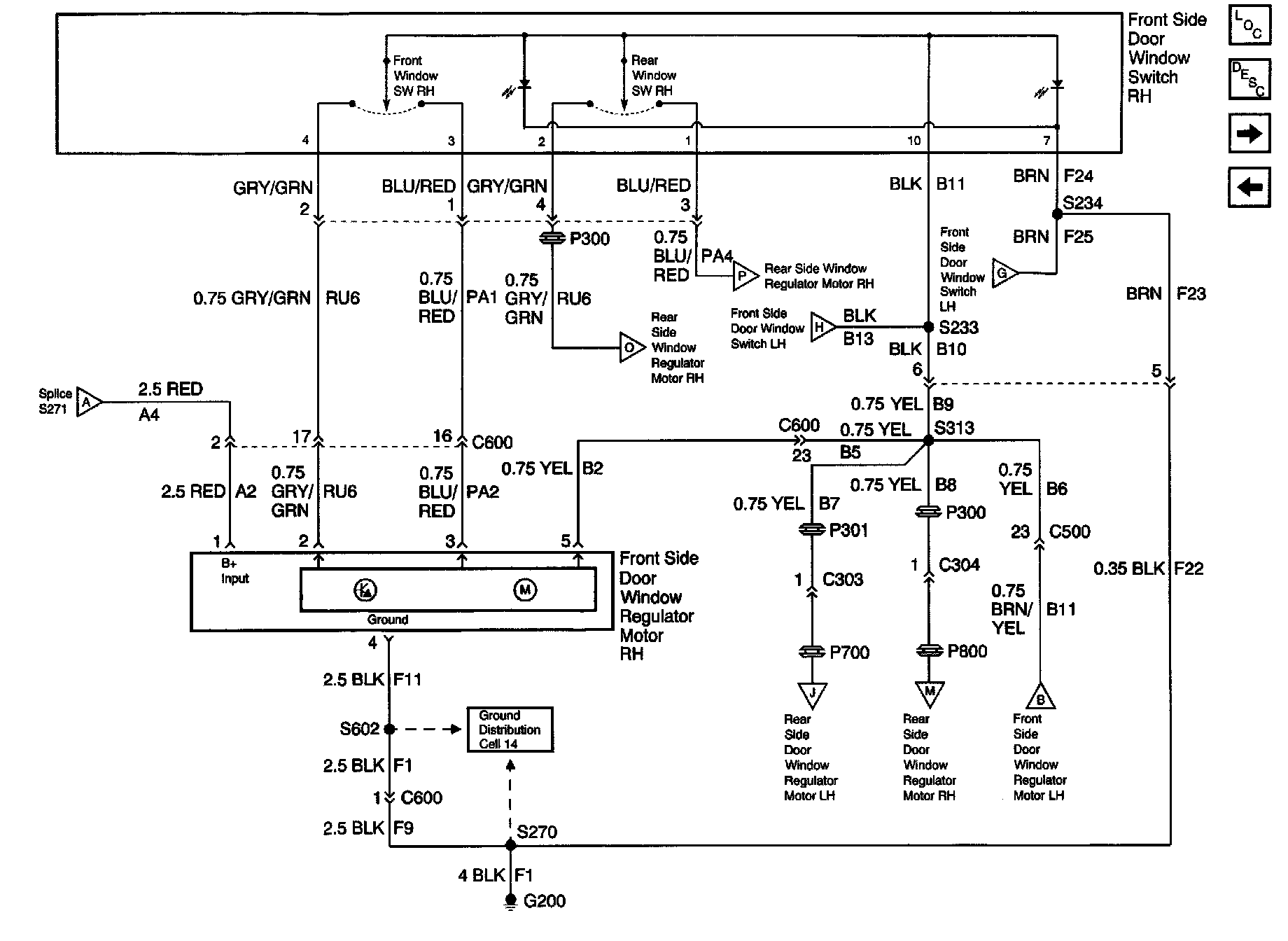

Power Window Schematics: RH Front Side Door Window Switch & Window Regulator Motor:
